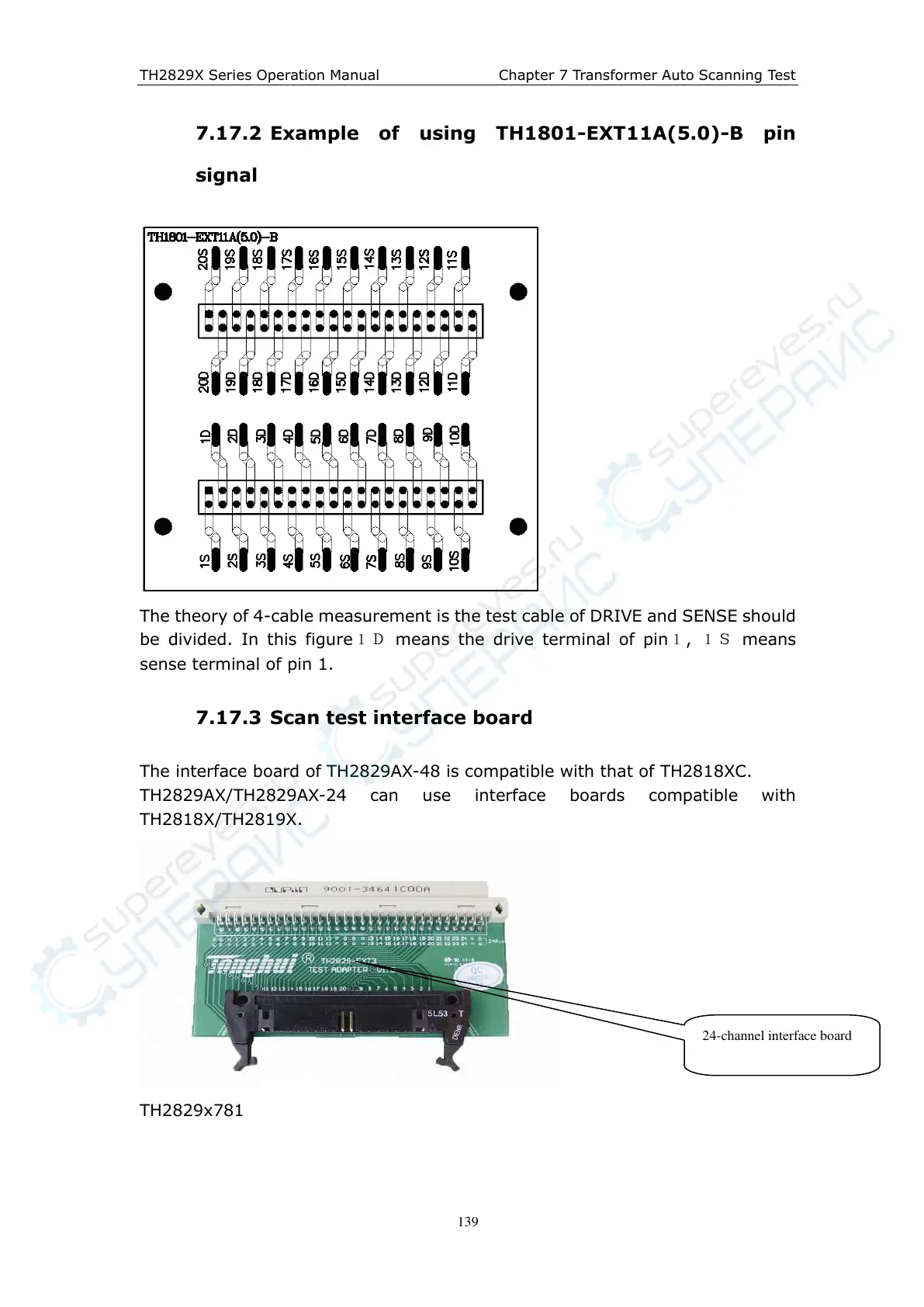

7.17.2 Example of using TH1801-EXT11A(5.0)-B pin
signal
The theory of 4-cable measurement is the test cable of DRIVE and SENSE should
be divided. In this figure
１Ｄ means the drive terminal of pin１, １Ｓ means
sense terminal of pin 1.
7.17.3 Scan test interface board
The interface board of TH2829AX-48 is compatible with that of TH2818XC.
TH2829AX/TH2829AX-24 can use interface boards compatible with
TH2818X/TH2819X.
TH2829x781
24-channel interface board
