TH2829X Series Operation Manual Chapter 8 Performance and Test
143

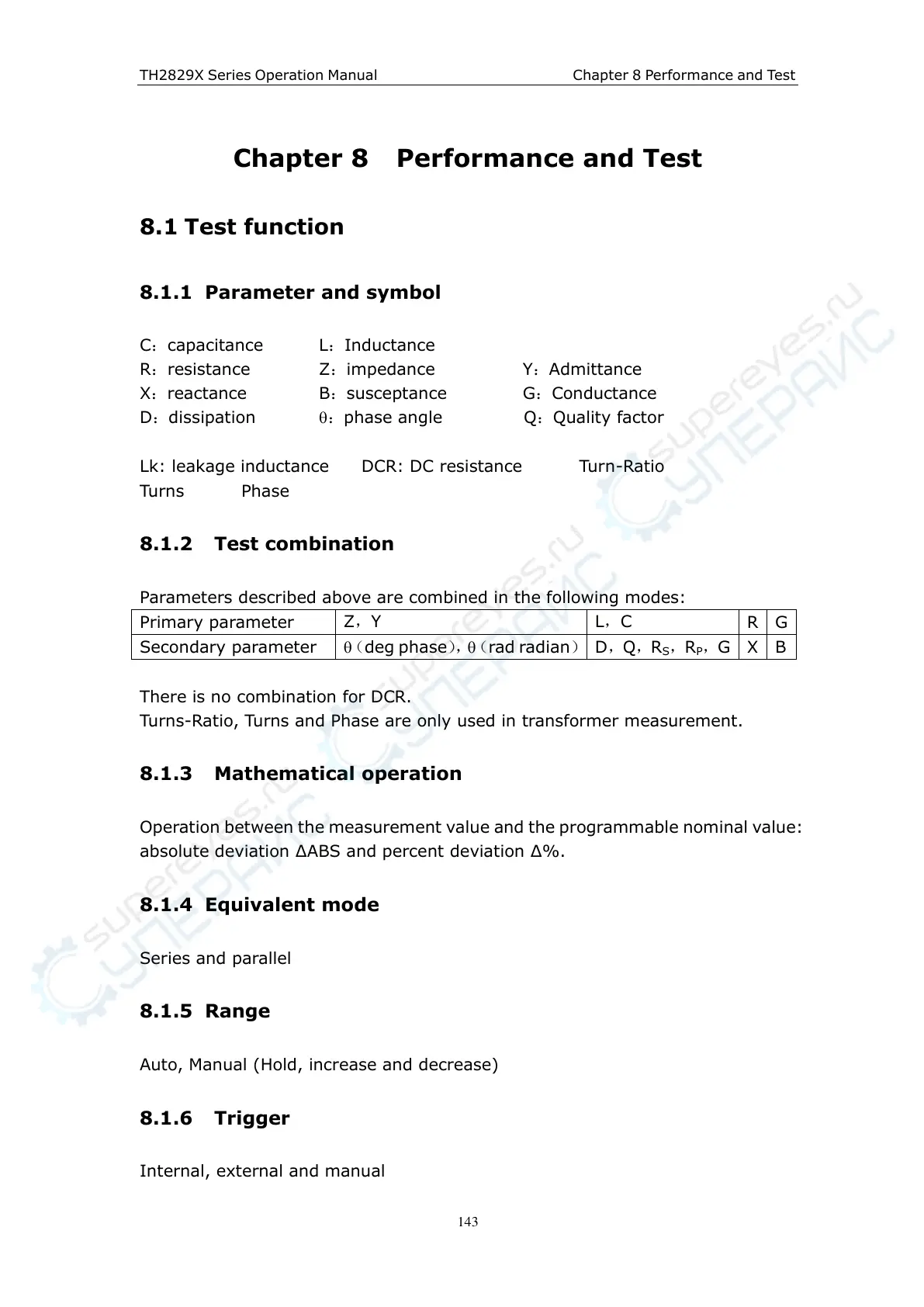

Chapter 8 Performance and Test
8.1 Test function
8.1.1 Parameter and symbol
C：capacitance L：Inductance
R：resistance Z：impedance Y：Admittance
X：reactance B：susceptance G：Conductance
D：dissipation ：phase angle Q：Quality factor
Lk: leakage inductance DCR: DC resistance Turn-Ratio
Turns Phase
8.1.2 Test combination
Parameters described above are combined in the following modes:
Primary parameter
Z，Y
L，C
R
G
Secondary parameter
（deg phase） ， （rad radian）
D，Q，R
S
，R
P
，G
X
B
There is no combination for DCR.
Turns-Ratio, Turns and Phase are only used in transformer measurement.
8.1.3 Mathematical operation
Operation between the measurement value and the programmable nominal value:
absolute deviation ∆ABS and percent deviation ∆%.
8.1.4 Equivalent mode
Series and parallel
8.1.5 Range
Auto, Manual (Hold, increase and decrease)
8.1.6 Trigger
Internal, external and manual
