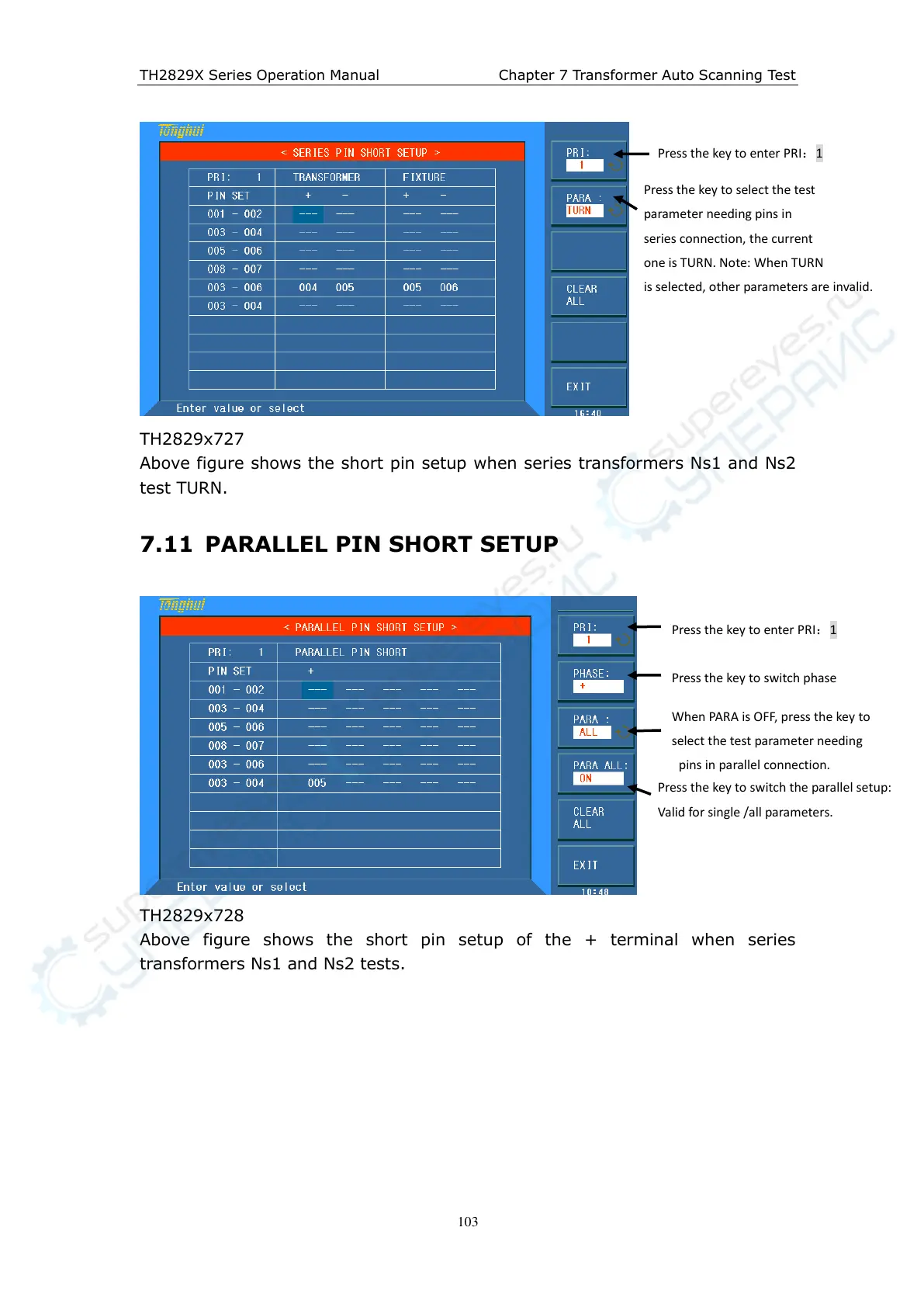

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
TH2829x727
Above figure shows the short pin setup when series transformers Ns1 and Ns2
test TURN.
7.11 PARALLEL PIN SHORT SETUP
TH2829x728
Above figure shows the short pin setup of the + terminal when series
transformers Ns1 and Ns2 tests.
Press the key to enter PRI：1
Press the key to select the test
parameter needing pins in
series connection, the current
one is TURN. Note: When TURN
is selected, other parameters are invalid.
Press the key to enter PRI：1
Press the key to switch phase
When PARA is OFF, press the key to
select the test parameter needing
pins in parallel connection.
series connection
Press the key to switch the parallel setup:
Valid for single /all parameters.
