TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
40

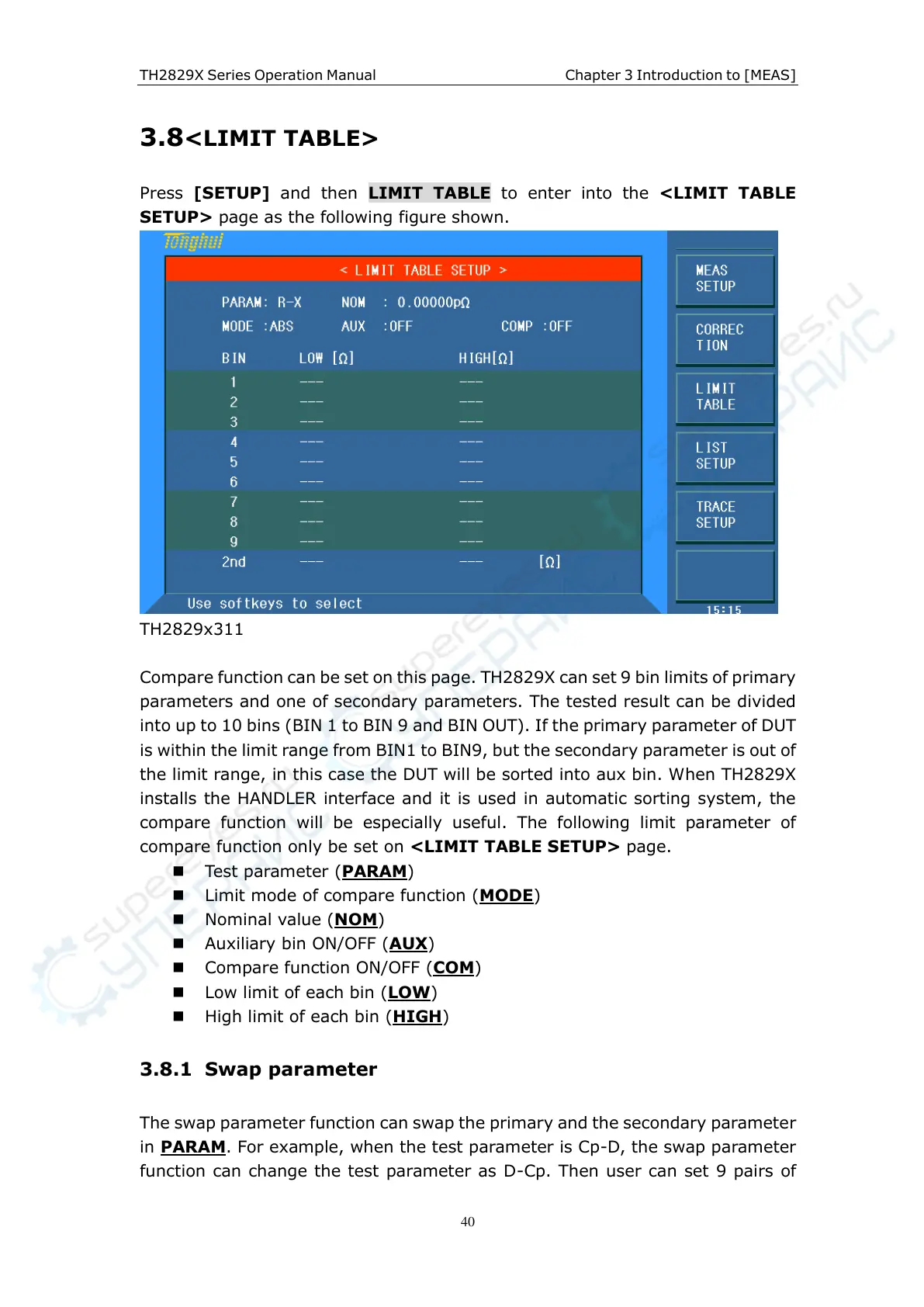

3.8 <LIMIT TABLE>
Press [SETUP] and then LIMIT TABLE to enter into the <LIMIT TABLE
SETUP> page as the following figure shown.
TH2829x311
Compare function can be set on this page. TH2829X can set 9 bin limits of primary
parameters and one of secondary parameters. The tested result can be divided
into up to 10 bins (BIN 1 to BIN 9 and BIN OUT). If the primary parameter of DUT
is within the limit range from BIN1 to BIN9, but the secondary parameter is out of
the limit range, in this case the DUT will be sorted into aux bin. When TH2829X
installs the HANDLER interface and it is used in automatic sorting system, the
compare function will be especially useful. The following limit parameter of
compare function only be set on <LIMIT TABLE SETUP> page.
 Test parameter (PARAM)
 Limit mode of compare function (MODE)
 Nominal value (NOM)
 Auxiliary bin ON/OFF (AUX)
 Compare function ON/OFF (COM)
 Low limit of each bin (LOW)
 High limit of each bin (HIGH)
3.8.1 Swap parameter
The swap parameter function can swap the primary and the secondary parameter
in PARAM
. For example, when the test parameter is Cp-D, the swap parameter
function can change the test parameter as D-Cp. Then user can set 9 pairs of
