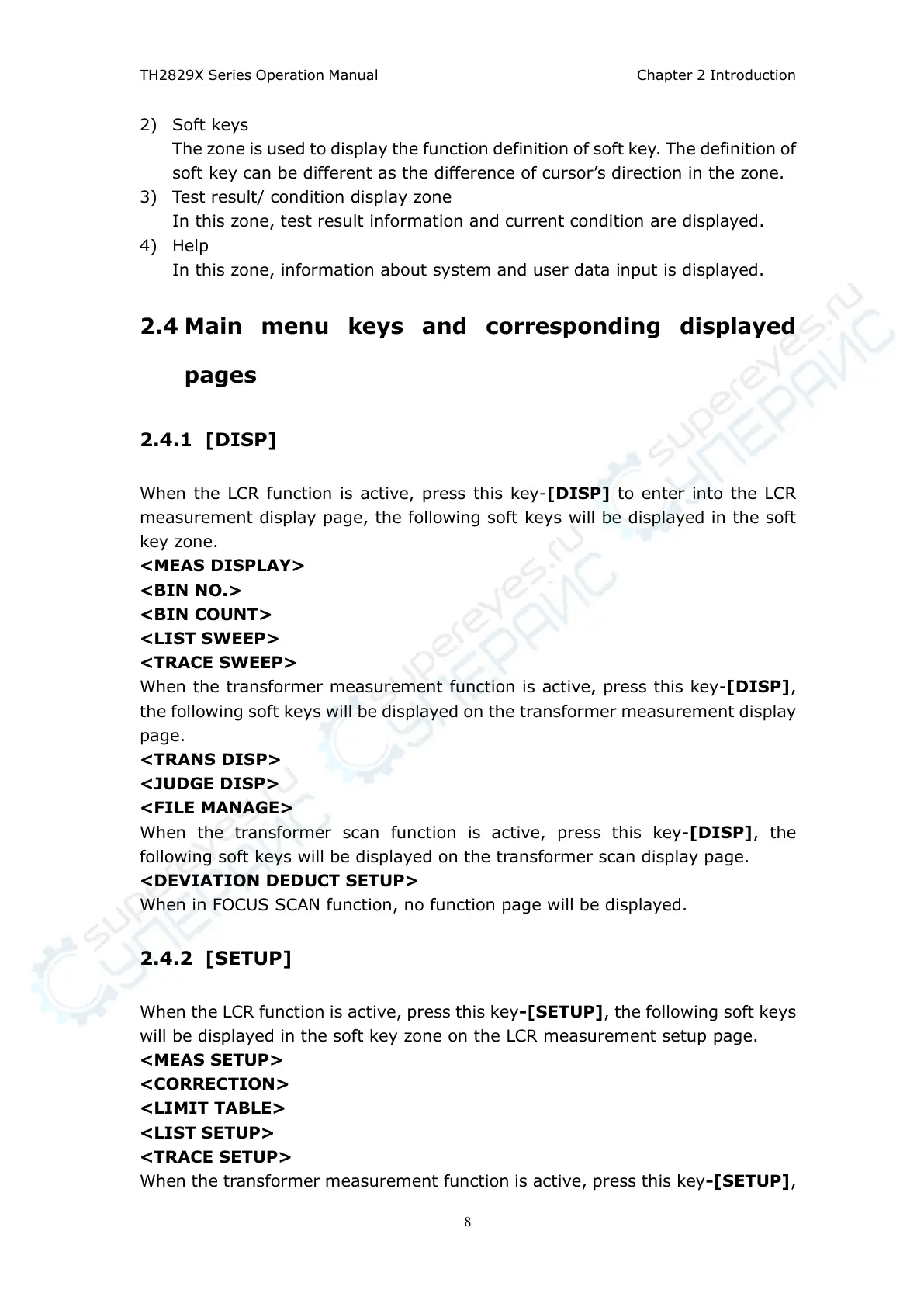

TH2829X Series Operation Manual Chapter 2 Introduction
8
2) Soft keys
The zone is used to display the function definition of soft key. The definition of
soft key can be different as the difference of cursor’s direction in the zone.
3) Test result/ condition display zone
In this zone, test result information and current condition are displayed.
4) Help
In this zone, information about system and user data input is displayed.
2.4 Main menu keys and corresponding displayed
pages
2.4.1 [DISP]
When the LCR function is active, press this key-[DISP] to enter into the LCR
measurement display page, the following soft keys will be displayed in the soft
key zone.
<MEAS DISPLAY>
<BIN NO.>
<BIN COUNT>
<LIST SWEEP>
<TRACE SWEEP>
When the transformer measurement function is active, press this key-[DISP],
the following soft keys will be displayed on the transformer measurement display
page.
<TRANS DISP>
<JUDGE DISP>
<FILE MANAGE>
When the transformer scan function is active, press this key-[DISP], the
following soft keys will be displayed on the transformer scan display page.
<DEVIATION DEDUCT SETUP>
When in FOCUS SCAN function, no function page will be displayed.
2.4.2 [SETUP]
When the LCR function is active, press this key-[SETUP], the following soft keys
will be displayed in the soft key zone on the LCR measurement setup page.
<MEAS SETUP>
<CORRECTION>
<LIMIT TABLE>
<LIST SETUP>
<TRACE SETUP>
When the transformer measurement function is active, press this key-[SETUP],
