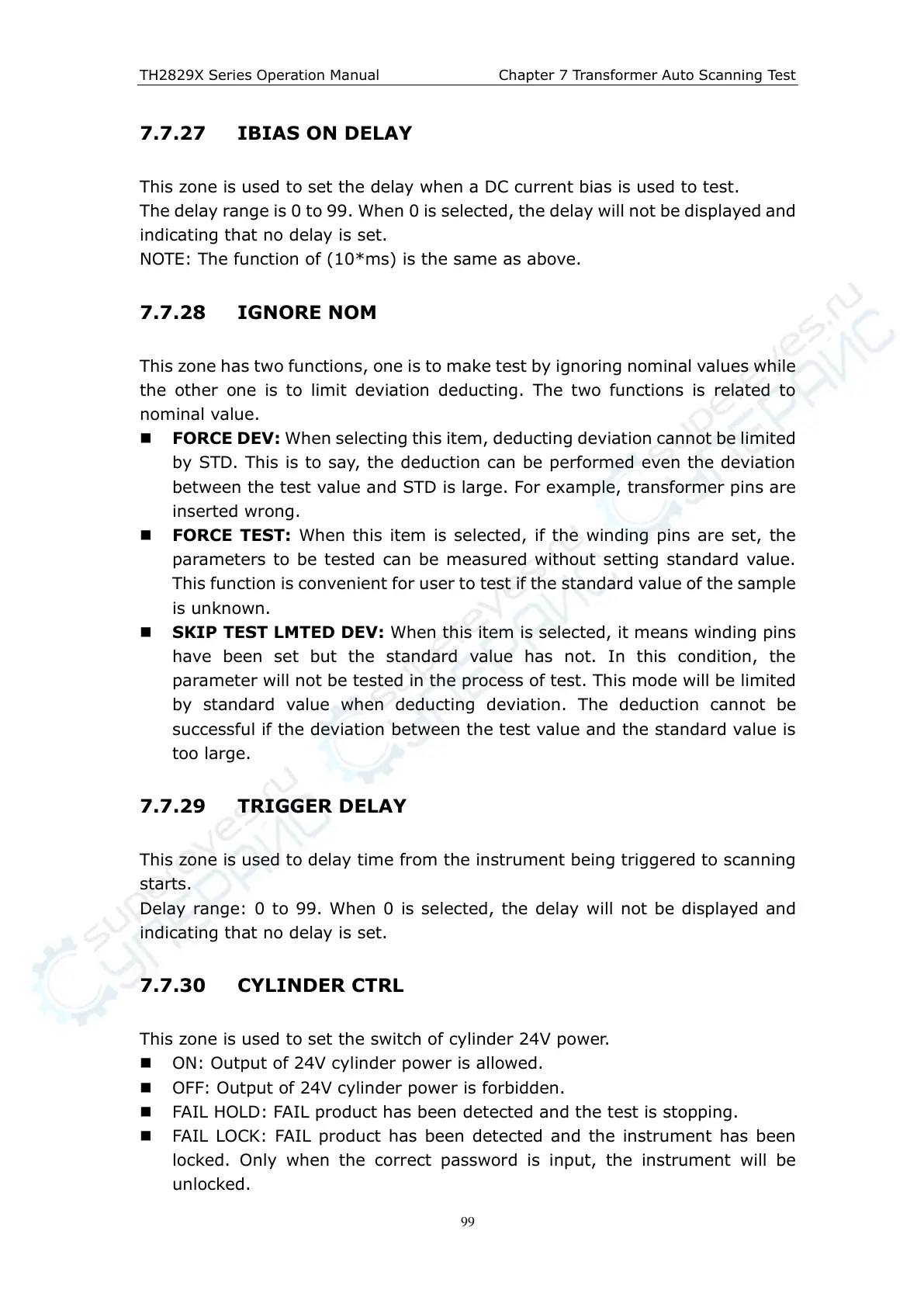

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
7.7.27 IBIAS ON DELAY
This zone is used to set the delay when a DC current bias is used to test.
The delay range is 0 to 99. When 0 is selected, the delay will not be displayed and
indicating that no delay is set.
NOTE: The function of (10*ms) is the same as above.
7.7.28 IGNORE NOM
This zone has two functions, one is to make test by ignoring nominal values while
the other one is to limit deviation deducting. The two functions is related to
nominal value.
FORCE DEV: When selecting this item, deducting deviation cannot be limited
by STD. This is to say, the deduction can be performed even the deviation
between the test value and STD is large. For example, transformer pins are
inserted wrong.
FORCE TEST: When this item is selected, if the winding pins are set, the
parameters to be tested can be measured without setting standard value.
This function is convenient for user to test if the standard value of the sample
is unknown.
SKIP TEST LMTED DEV: When this item is selected, it means winding pins
have been set but the standard value has not. In this condition, the
parameter will not be tested in the process of test. This mode will be limited
by standard value when deducting deviation. The deduction cannot be
successful if the deviation between the test value and the standard value is
too large.
7.7.29 TRIGGER DELAY
This zone is used to delay time from the instrument being triggered to scanning
starts.
Delay range: 0 to 99. When 0 is selected, the delay will not be displayed and
indicating that no delay is set.
7.7.30 CYLINDER CTRL
This zone is used to set the switch of cylinder 24V power.
ON: Output of 24V cylinder power is allowed.
OFF: Output of 24V cylinder power is forbidden.
FAIL HOLD: FAIL product has been detected and the test is stopping.
FAIL LOCK: FAIL product has been detected and the instrument has been
locked. Only when the correct password is input, the instrument will be
unlocked.
