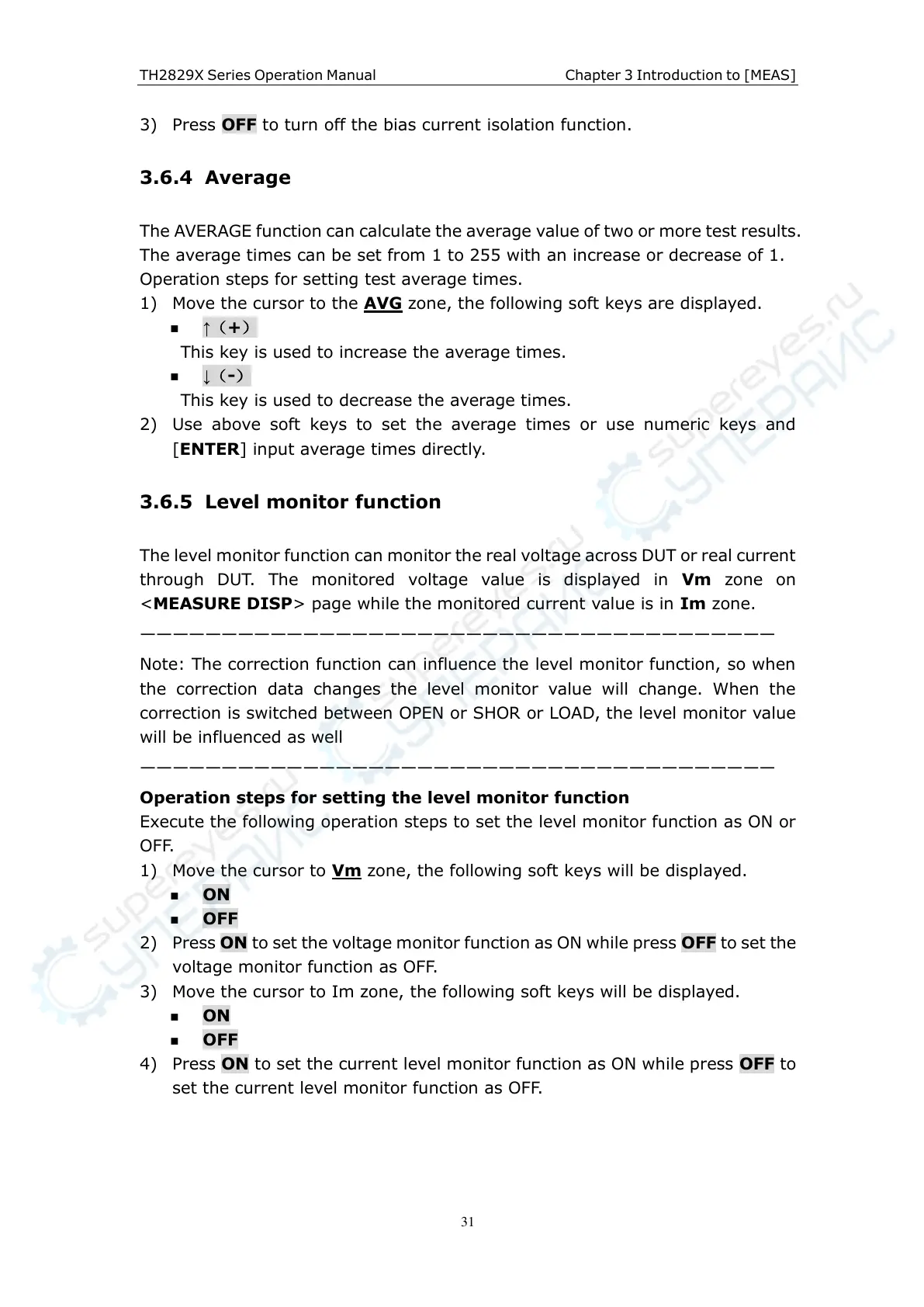

TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
3) Press OFF to turn off the bias current isolation function.
3.6.4 Average
The AVERAGE function can calculate the average value of two or more test results.
The average times can be set from 1 to 255 with an increase or decrease of 1.
Operation steps for setting test average times.
1) Move the cursor to the AVG zone, the following soft keys are displayed.
↑（+）
This key is used to increase the average times.
↓（-）
This key is used to decrease the average times.
2) Use above soft keys to set the average times or use numeric keys and
[ENTER] input average times directly.
3.6.5 Level monitor function
The level monitor function can monitor the real voltage across DUT or real current
through DUT. The monitored voltage value is displayed in V m zone on
<MEASURE DISP> page while the monitored current value is in I m zone.
———————————————————————————————————————
Note: The correction function can influence the level monitor function, so when
the correction data changes the level monitor value will change. When the
correction is switched between OPEN or SHOR or LOAD, the level monitor value
will be influenced as well
———————————————————————————————————————
Operation steps for setting the level monitor function
Execute the following operation steps to set the level monitor function as ON or
OFF.
1) Move the cursor to Vm zone, the following soft keys will be displayed.
ON
OFF
2) Press ON to set the voltage monitor function as ON while press OFF to set the
voltage monitor function as OFF.
3) Move the cursor to Im zone, the following soft keys will be displayed.
ON
OFF
4) Press ON to set the current level monitor function as ON while press OFF to
set the current level monitor function as OFF.
