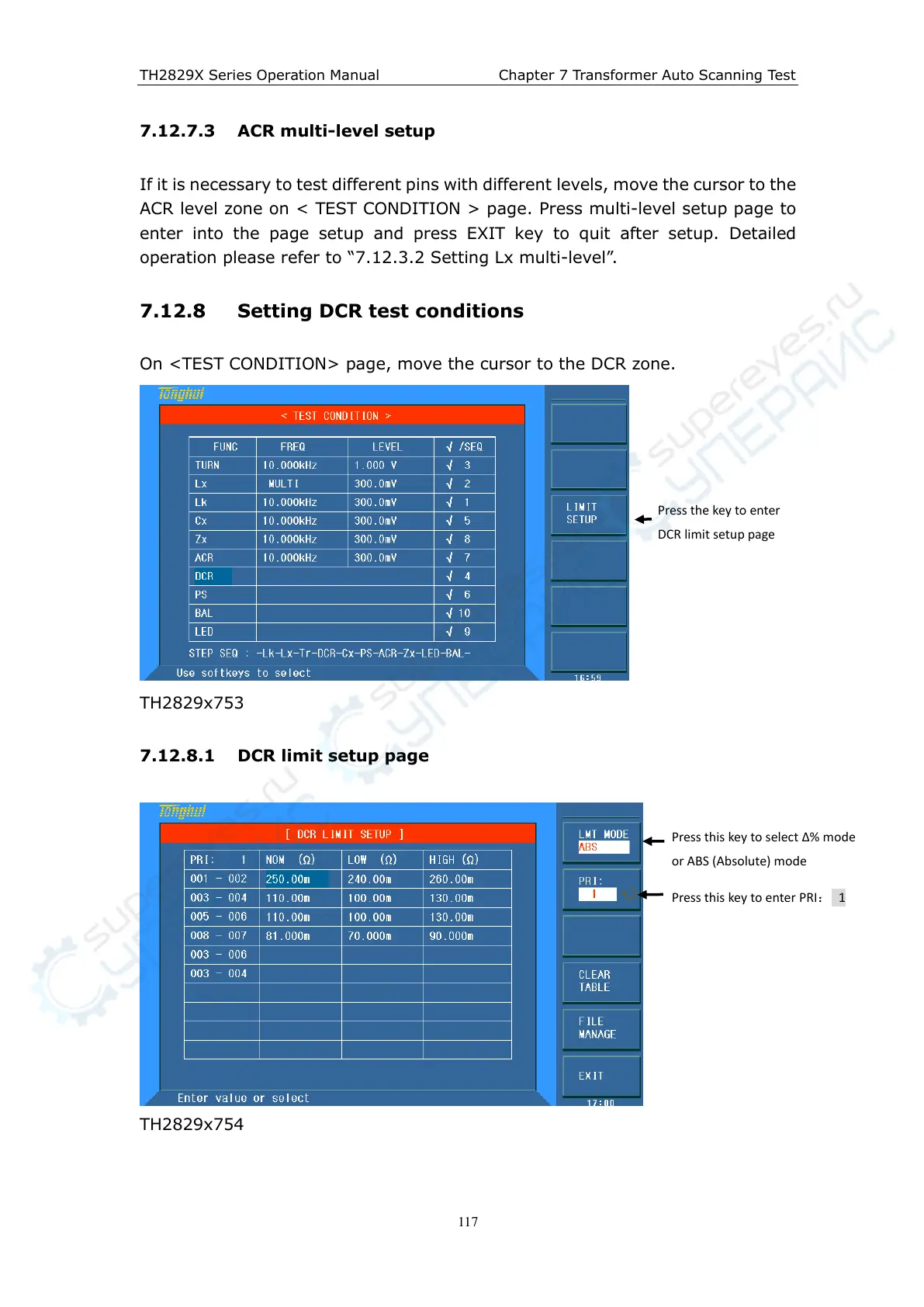

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
7.12.7.3 ACR multi-level setup
If it is necessary to test different pins with different levels, move the cursor to the
ACR level zone on < TEST CONDITION > page. Press multi-level setup page to
enter into the page setup and press EXIT key to quit after setup. Detailed
operation please refer to “7.12.3.2 Setting Lx multi-level”.
7.12.8 Setting DCR test conditions
On <TEST CONDITION> page, move the cursor to the DCR zone.
TH2829x753
7.12.8.1 DCR limit setup page
TH2829x754
Press the key to enter
DCR limit setup page
Press this key to select ∆% mode
or ABS (Absolute) mode
Press this key to enter PRI： 1
To Next Page
