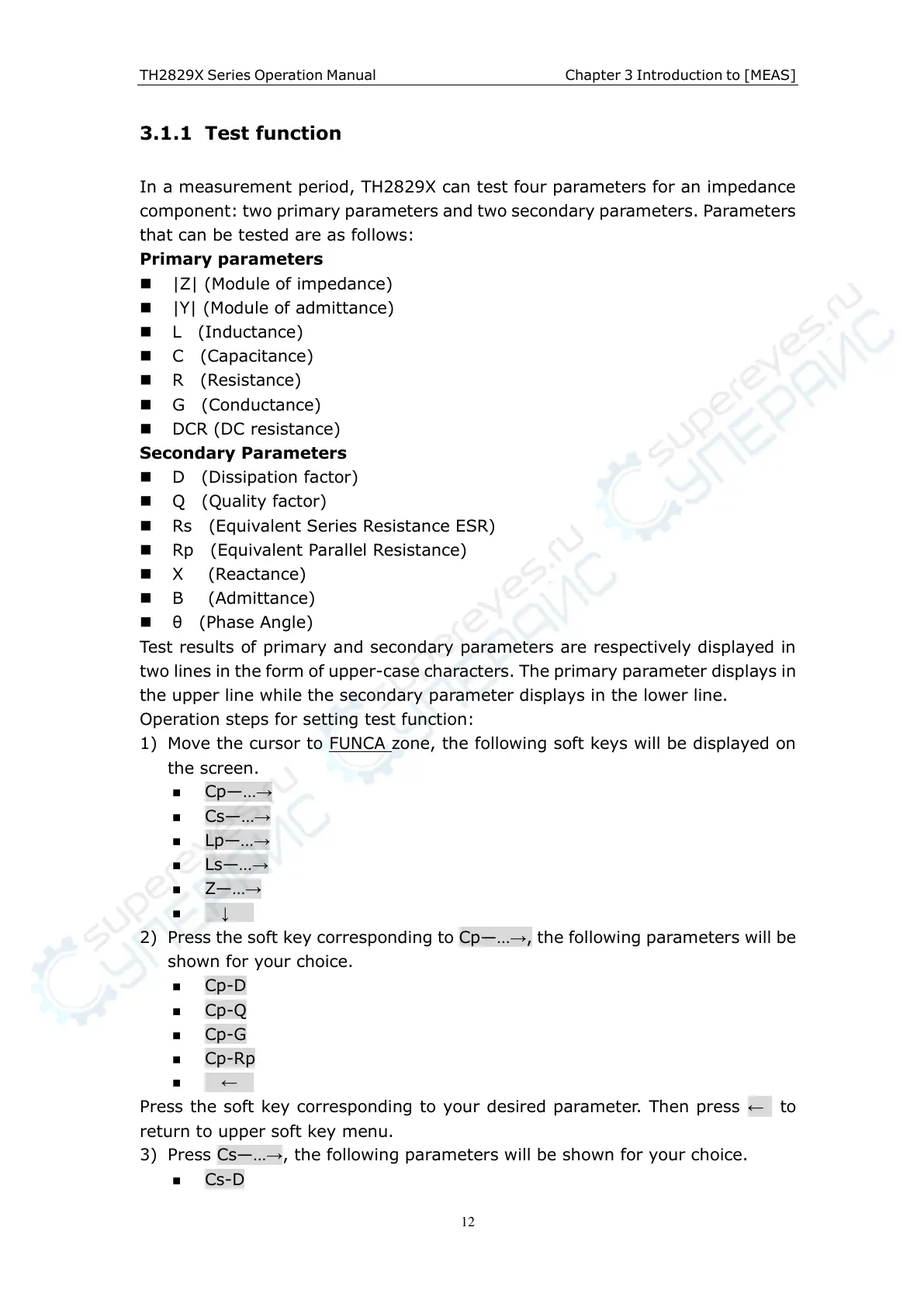

3.1.1 Test function
In a measurement period, TH2829X can test four parameters for an impedance
component: two primary parameters and two secondary parameters. Parameters
that can be tested are as follows:
Primary parameters
 |Z| (Module of impedance)
 |Y| (Module of admittance)
 L (Inductance)
 C (Capacitance)
 R (Resistance)
 G (Conductance)
 DCR (DC resistance)
Secondary Parameters
 D (Dissipation factor)
 Q (Quality factor)
 Rs (Equivalent Series Resistance ESR)
 Rp (Equivalent Parallel Resistance)
 X (Reactance)
 B (Admittance)
 θ (Phase Angle)
Test results of primary and secondary parameters are respectively displayed in
two lines in the form of upper-case characters. The primary parameter displays in
the upper line while the secondary parameter displays in the lower line.
Operation steps for setting test function:
1) Move the cursor to FUNCA zone, the following soft keys will be displayed on
the screen.
 Cp—…→
 Cs—…→
 Lp—…→
 Ls—…→
 Z—…→
 ↓
2) Press the soft key corresponding to C p —…→, the following parameters will be
shown for your choice.
 Cp-D
 Cp-Q
 Cp-G
 Cp-Rp
 ←
Press the soft key corresponding to your desired parameter. Then press ← to
return to upper soft key menu.
3) Press Cs—…→, the following parameters will be shown for your choice.
 Cs-D
