TH2829X Series Operation Manual Chapter 5 Execute LCR Operation and Some Examples
information zone and the soft key zone will display the following available
units: p, n, μ, m. Press ENTER, this zone will be changed as 300.000μ and
the cursor will automatically move to the parameter zone of sweep point
3.
q) Based on 1-p steps, input 100kHz, B, 0.0060 and 0.0100 for the 3rd
sweep point.
3) Alarm setup
a) Press [SYSTEM] to enter into the <System Setup> page.
b) Move the cursor to the FAIL BEEP zone to select HIGH LONG.
4) Mount the test fixture (TH26005) to the test terminals of TH2829X.
5) Execute correction function (To avoid the influence of the stray impedance on
the measurement accuracy, it is necessary to execute open/short correction
(refer to chapter 5.1.1 Sweep Correction)).
6) Insert the tested capacitor to the test fixture.
7) Execute test operations.

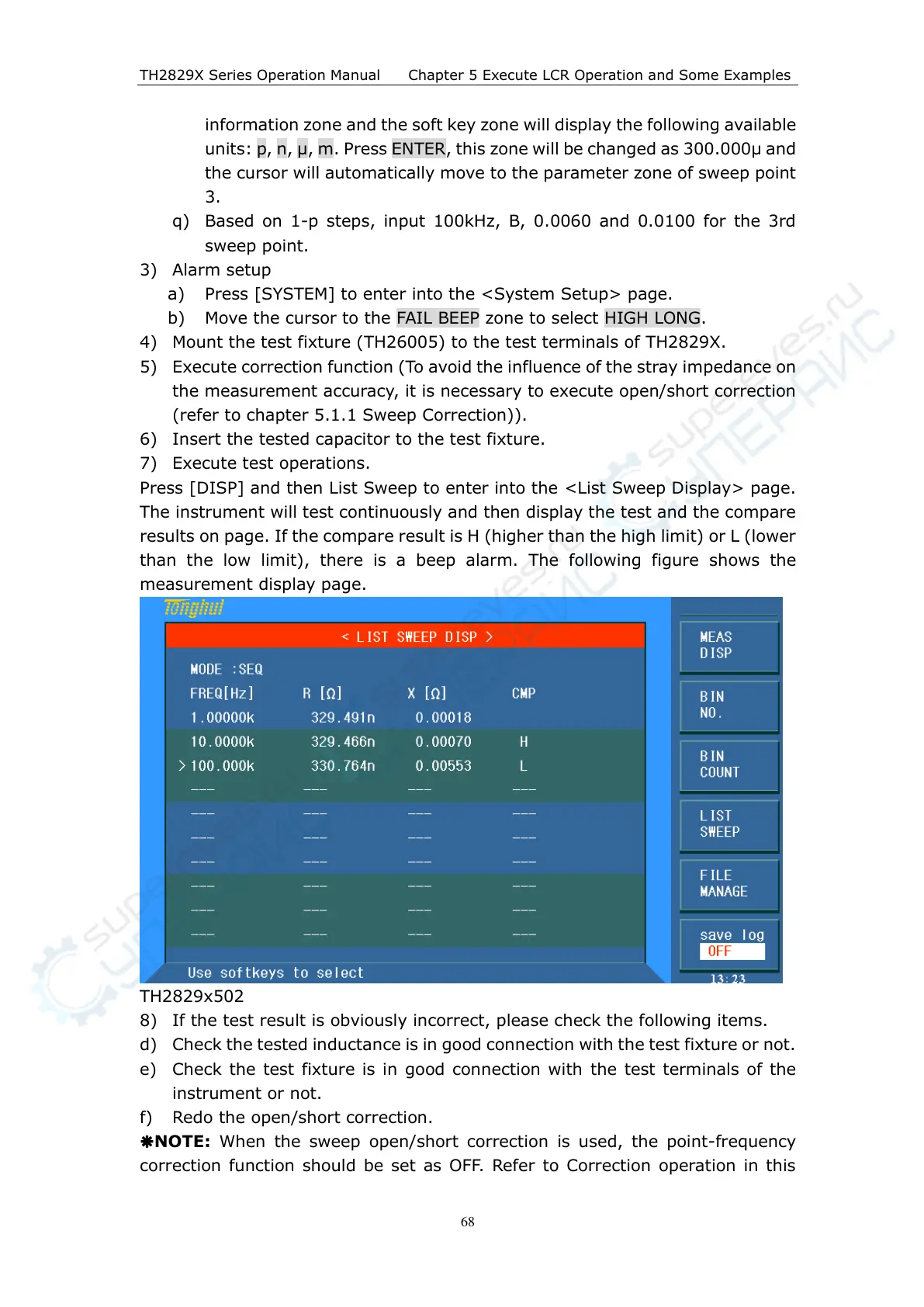

Press [DISP] and then List Sweep to enter into the <List Sweep Display> page.
The instrument will test continuously and then display the test and the compare
results on page. If the compare result is H (higher than the high limit) or L (lower
than the low limit), there is a beep alarm. The following figure shows the
measurement display page.
TH2829x502
8) If the test result is obviously incorrect, please check the following items.
d) Check the tested inductance is in good connection with the test fixture or not.
e) Check the test fixture is in good connection with the test terminals of the
instrument or not.
f) Redo the open/short correction.
NOTE: When the sweep open/short correction is used, the point-frequency
correction function should be set as OFF. Refer to Correction operation in this
