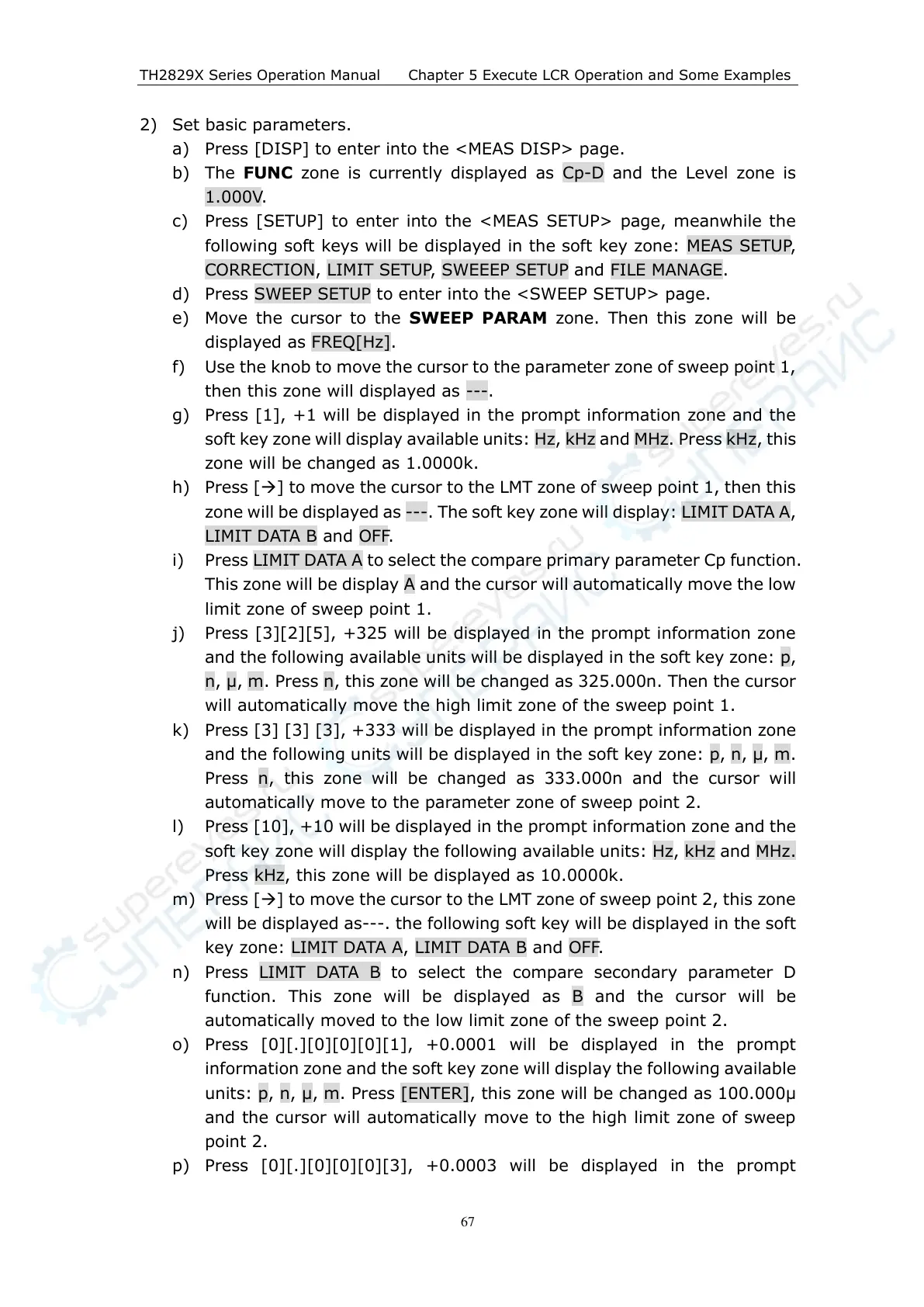

TH2829X Series Operation Manual Chapter 5 Execute LCR Operation and Some Examples
2) Set basic parameters.
a) Press [DISP] to enter into the <MEAS DISP> page.
b) The FUNC zone is currently displayed as Cp-D and the Level zone is
1.000V.
c) Press [SETUP] to enter into the <MEAS SETUP> page, meanwhile the
following soft keys will be displayed in the soft key zone: MEAS SETUP,
CORRECTION, LIMIT SETUP, SWEEEP SETUP and FILE MANAGE.
d) Press SWEEP SETUP to enter into the <SWEEP SETUP> page.
e) Move the cursor to the SWEEP PARAM zone. Then this zone will be
displayed as FREQ[Hz].
f) Use the knob to move the cursor to the parameter zone of sweep point 1,
then this zone will displayed as ---.
g) Press [1], +1 will be displayed in the prompt information zone and the
soft key zone will display available units: Hz, kHz and MHz. Press kHz, this
zone will be changed as 1.0000k.
h) Press [] to move the cursor to the LMT zone of sweep point 1, then this
zone will be displayed as ---. The soft key zone will display: LIMIT DATA A,
LIMIT DATA B and OFF.
i) Press LIMIT DATA A to select the compare primary parameter Cp function.
This zone will be display A and the cursor will automatically move the low
limit zone of sweep point 1.
j) Press [3][2][5], +325 will be displayed in the prompt information zone
and the following available units will be displayed in the soft key zone: p,
n, μ, m. Press n, this zone will be changed as 325.000n. Then the cursor
will automatically move the high limit zone of the sweep point 1.
k) Press [3] [3] [3], +333 will be displayed in the prompt information zone
and the following units will be displayed in the soft key zone: p, n, μ, m.
Press n, this zone will be changed as 333.000n and the cursor will
automatically move to the parameter zone of sweep point 2.
l) Press [10], +10 will be displayed in the prompt information zone and the
soft key zone will display the following available units: Hz, kHz and MHz.
Press kHz, this zone will be displayed as 10.0000k.
m) Press [] to move the cursor to the LMT zone of sweep point 2, this zone
will be displayed as---. the following soft key will be displayed in the soft
key zone: LIMIT DATA A, LIMIT DATA B and OFF.
n) Press LIMIT DATA B to select the compare secondary parameter D
function. This zone will be displayed as B and the cursor will be
automatically moved to the low limit zone of the sweep point 2.
o) Press [0][.][0][0][0][1], +0.0001 will be displayed in the prompt
information zone and the soft key zone will display the following available
units: p, n, μ, m. Press [ENTER], this zone will be changed as 100.000μ
and the cursor will automatically move to the high limit zone of sweep
point 2.
p) Press [0][.][0][0][0][3], +0.0003 will be displayed in the prompt
