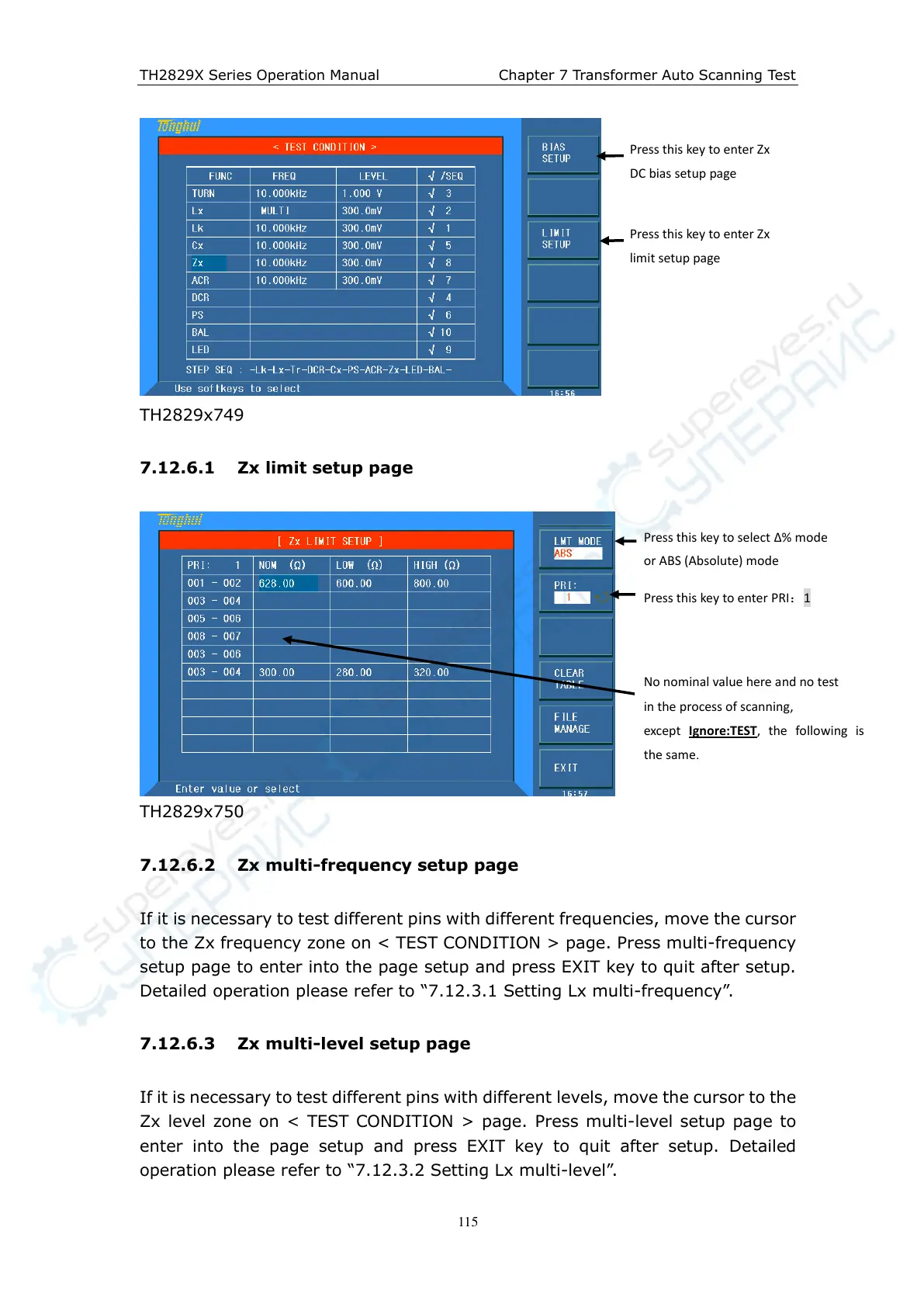

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
115
TH2829x749
7.12.6.1 Zx limit setup page
TH2829x750
7.12.6.2 Zx multi-frequency setup page
If it is necessary to test different pins with different frequencies, move the cursor
to the Zx frequency zone on < TEST CONDITION > page. Press multi-frequency
setup page to enter into the page setup and press EXIT key to quit after setup.
Detailed operation please refer to “7.12.3.1 Setting Lx multi-frequency”.
7.12.6.3 Zx multi-level setup page
If it is necessary to test different pins with different levels, move the cursor to the
Zx level zone on < TEST CONDITION > page. Press multi-level setup page to
enter into the page setup and press EXIT key to quit after setup. Detailed
operation please refer to “7.12.3.2 Setting Lx multi-level”.
Press this key to enter Zx
DC bias setup page
Press this key to enter Zx
limit setup page
Press this key to select ∆% mode
or ABS (Absolute) mode
Press this key to enter PRI：1
No nominal value here and no test
in the process of scanning,
except Ignore:TEST, the following is
the same.
