TH2829X Series Operation Manual Chapter 10 HANDLER
delay 1 measurement 2comparison 3display
time time time time
T1: trigger pulse-width
T2:delay time
T3:the trigger waiting time after
/EOM output
---
Display time
3
+
200us
---
1. for the measurement time, please refer to the operation manual;
2. the typical comparison time is approximately 1ms；
3. the display time for every display page is below:
MEAS DISPLAY： 8ms;
BIN NO.DISPLAY：5ms;
BIN COUNT DISPLAY：0.5ms

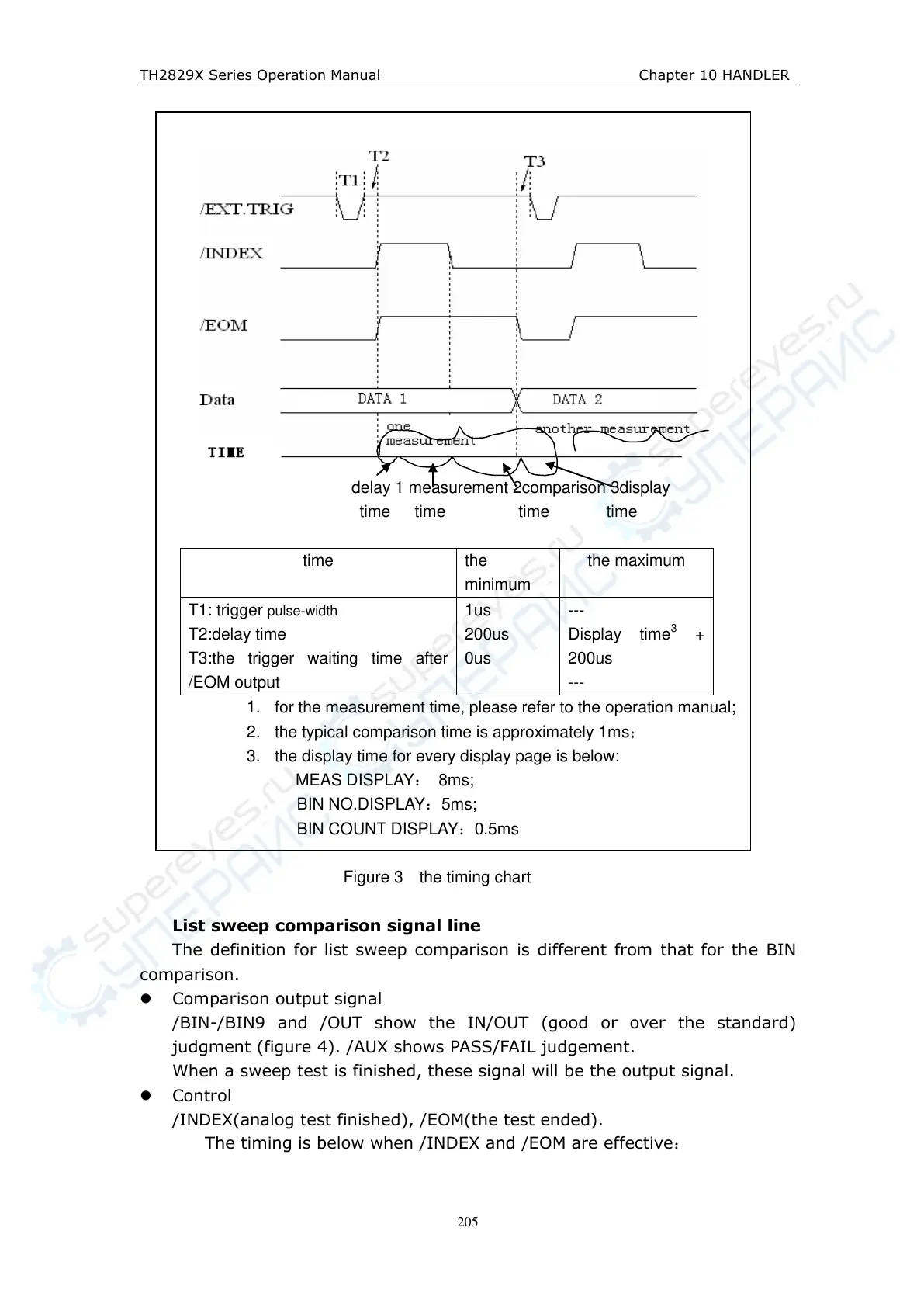

Figure 3 the timing chart
List sweep comparison signal line
The definition for list sweep comparison is different from that for the BIN
comparison.
Comparison output signal
/BIN-/BIN9 and /OUT show the IN/OUT (good or over the standard)
judgment (figure 4). /AUX shows PASS/FAIL judgement.
When a sweep test is finished, these signal will be the output signal.
Control
/INDEX(analog test finished), /EOM(the test ended).
The timing is below when /INDEX and /EOM are effective：
