Note :(1)The setting time includes the correction ON/OFF time.
(2)The comparison and display time is 4.5ms approximately.

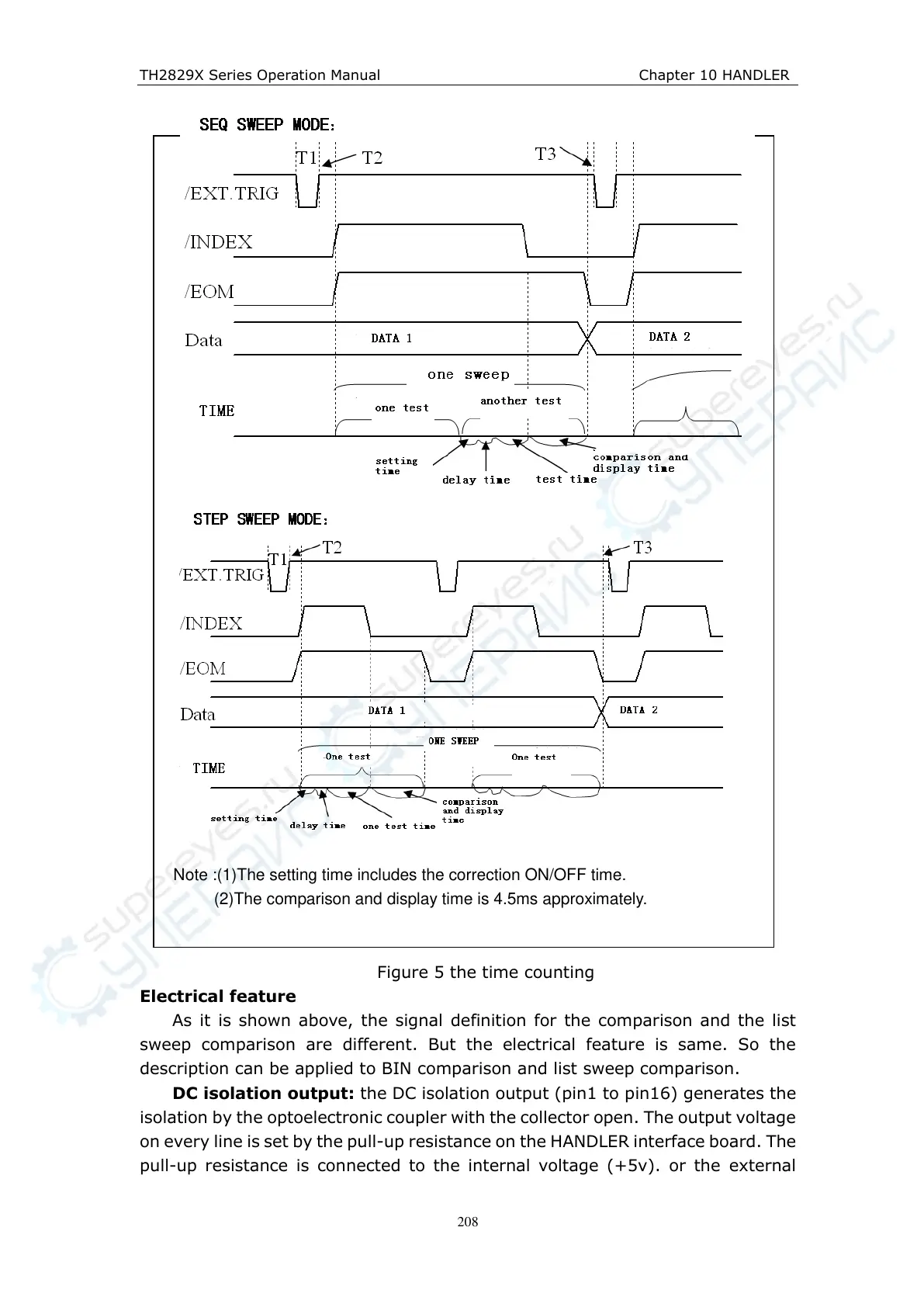

Figure 5 the time counting
Electrical feature
As it is shown above, the signal definition for the comparison and the list
sweep comparison are different. But the electrical feature is same. So the
description can be applied to BIN comparison and list sweep comparison.
DC isolation output: the DC isolation output (pin1 to pin16) generates the
isolation by the optoelectronic coupler with the collector open. The output voltage
on every line is set by the pull-up resistance on the HANDLER interface board. The
pull-up resistance is connected to the internal voltage (+5v). or the external
