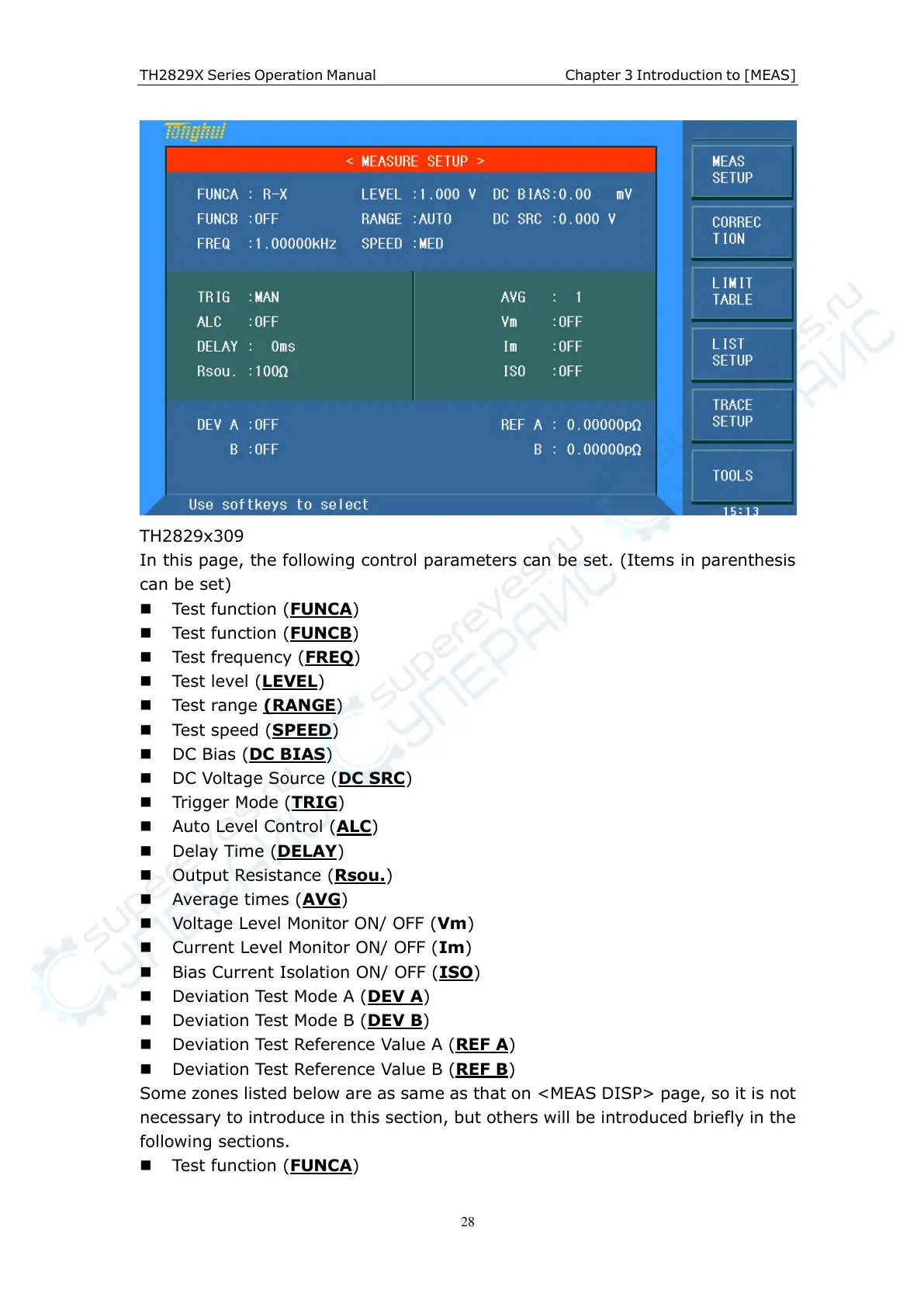

TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
28
TH2829x309
In this page, the following control parameters can be set. (Items in parenthesis
can be set)
 Test function (FUNCA)
 Test function (FUNCB)
 Test frequency (FREQ)
 Test level (LEVEL)
 Test range (RANGE)
 Test speed (SPEED)
 DC Bias (DC BIAS)
 DC Voltage Source (DC SRC)
 Trigger Mode (TRIG)
 Auto Level Control (ALC)
 Delay Time (DELAY)
 Output Resistance (Rsou.)
 Average times (AVG)
 Voltage Level Monitor ON/ OFF (V m )
 Current Level Monitor ON/ OFF (Im )
 Bias Current Isolation ON/ OFF (ISO)
 Deviation Test Mode A (DEV A)
 Deviation Test Mode B (DEV B)
 Deviation Test Reference Value A (REF A)
 Deviation Test Reference Value B (REF B)
Some zones listed below are as same as that on <MEAS DISP> page, so it is not
necessary to introduce in this section, but others will be introduced briefly in the
following sections.
 Test function (FUNCA)
