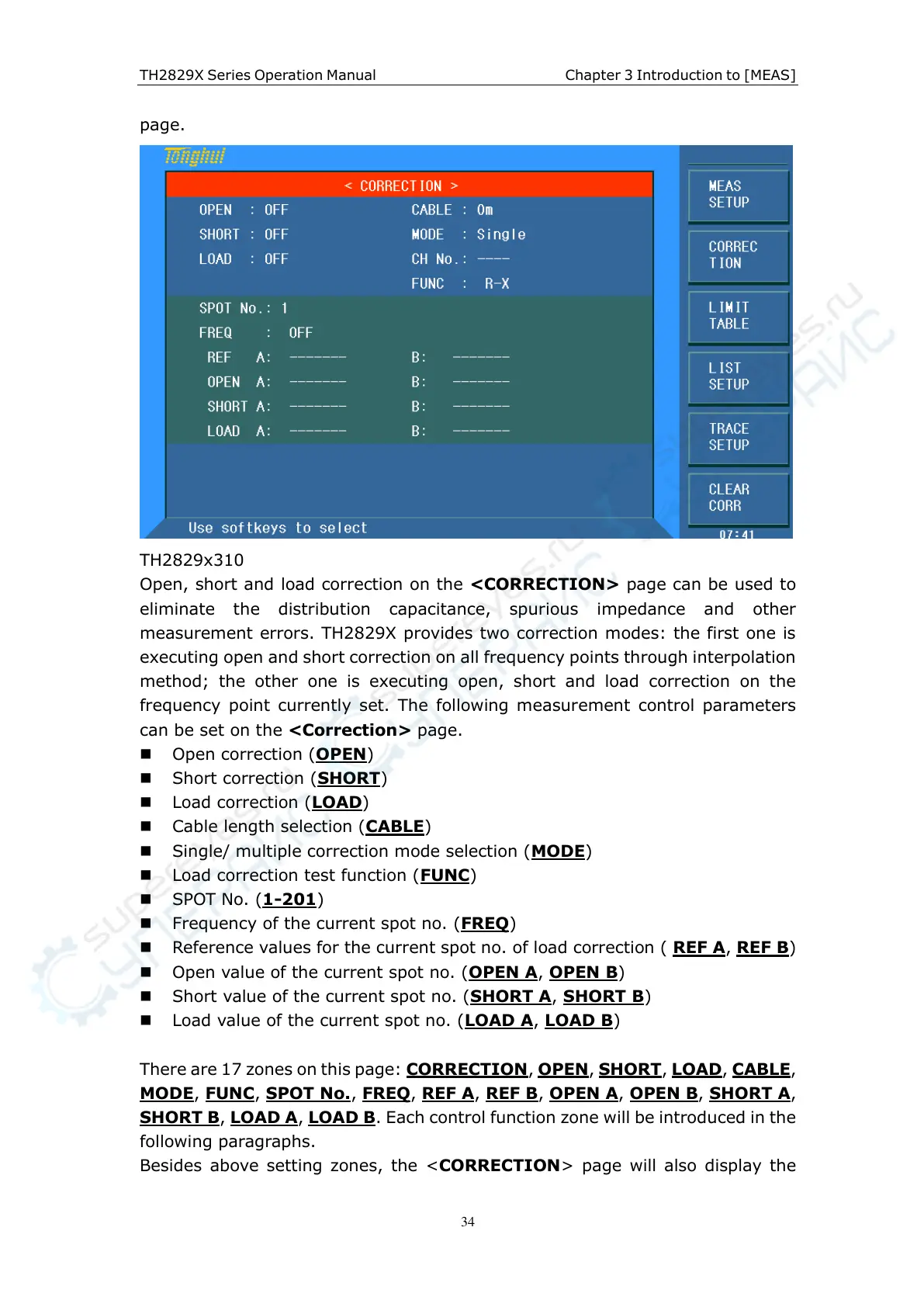

TH2829X Series Operation Manual Chapter 3 Introduction to [MEAS]
page.
TH2829x310
Open, short and load correction on the <CORRECTION> page can be used to
eliminate the distribution capacitance, spurious impedance and other
measurement errors. TH2829X provides two correction modes: the first one is
executing open and short correction on all frequency points through interpolation
method; the other one is executing open, short and load correction on the
frequency point currently set. The following measurement control parameters
can be set on the <Correction> page.
Open correction (OPEN)
Short correction (SHORT)
Load correction (LOAD)
Cable length selection (CABLE)
Single/ multiple correction mode selection (MODE)
Load correction test function (FUNC)
SPOT No. (1-201)
Frequency of the current spot no. (FREQ)
Reference values for the current spot no. of load correction ( REF A, REF B)
Open value of the current spot no. (OPEN A, OPEN B)
Short value of the current spot no. (SHORT A, SHORT B)
Load value of the current spot no. (LOAD A, LOAD B)
There are 17 zones on this page: CORRECTION, OPEN, SHORT, LOAD, CABLE,
MODE
, FUNC, SPOT No., FREQ, REF A, REF B, OPEN A, OPEN B, SHORT A,
SHORT B
, LOAD A, LOAD B. Each control function zone will be introduced in the
following paragraphs.
Besides above setting zones, the <CORRECTION> page will also display the
