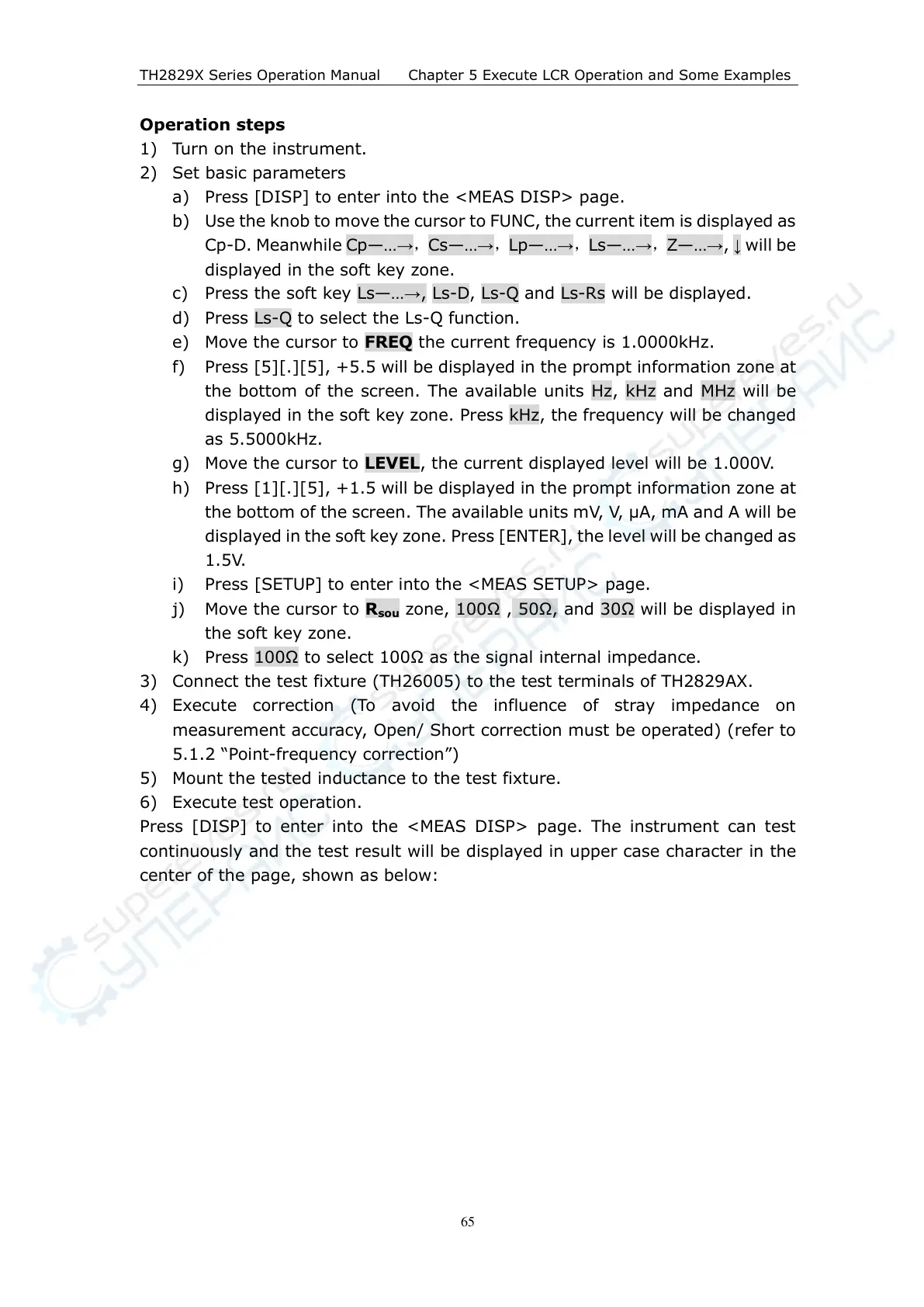

TH2829X Series Operation Manual Chapter 5 Execute LCR Operation and Some Examples
Operation steps
1) Turn on the instrument.
2) Set basic parameters
a) Press [DISP] to enter into the <MEAS DISP> page.
b) Use the knob to move the cursor to FUNC, the current item is displayed as
Cp-D. Meanwhile Cp—…→，Cs—…→，Lp—…→，Ls —…→，Z—…→, ↓ will be
displayed in the soft key zone.
c) Press the soft key Ls—…→, Ls-D, Ls-Q and Ls-Rs will be displayed.
d) Press Ls -Q to select the Ls-Q function.
e) Move the cursor to FREQ the current frequency is 1.0000kHz.
f) Press [5][.][5], +5.5 will be displayed in the prompt information zone at
the bottom of the screen. The available units Hz, kHz and MHz will be
displayed in the soft key zone. Press kHz, the frequency will be changed
as 5.5000kHz.
g) Move the cursor to LEVEL, the current displayed level will be 1.000V.
h) Press [1][.][5], +1.5 will be displayed in the prompt information zone at
the bottom of the screen. The available units mV, V, μA, mA and A will be
displayed in the soft key zone. Press [ENTER], the level will be changed as
1.5V.
i) Press [SETUP] to enter into the <MEAS SETUP> page.
j) Move the cursor to R
sou
zone, 100Ω , 50Ω, and 30Ω will be displayed in
the soft key zone.
k) Press 100Ω to select 100Ω as the signal internal impedance.
3) Connect the test fixture (TH26005) to the test terminals of TH2829AX.
4) Execute correction (To avoid the influence of stray impedance on
measurement accuracy, Open/ Short correction must be operated) (refer to
5.1.2 “Point-frequency correction”)
5) Mount the tested inductance to the test fixture.
6) Execute test operation.
Press [DISP] to enter into the <MEAS DISP> page. The instrument can test
continuously and the test result will be displayed in upper case character in the
center of the page, shown as below:
