88
DISPLAYING TOMOGRAMS

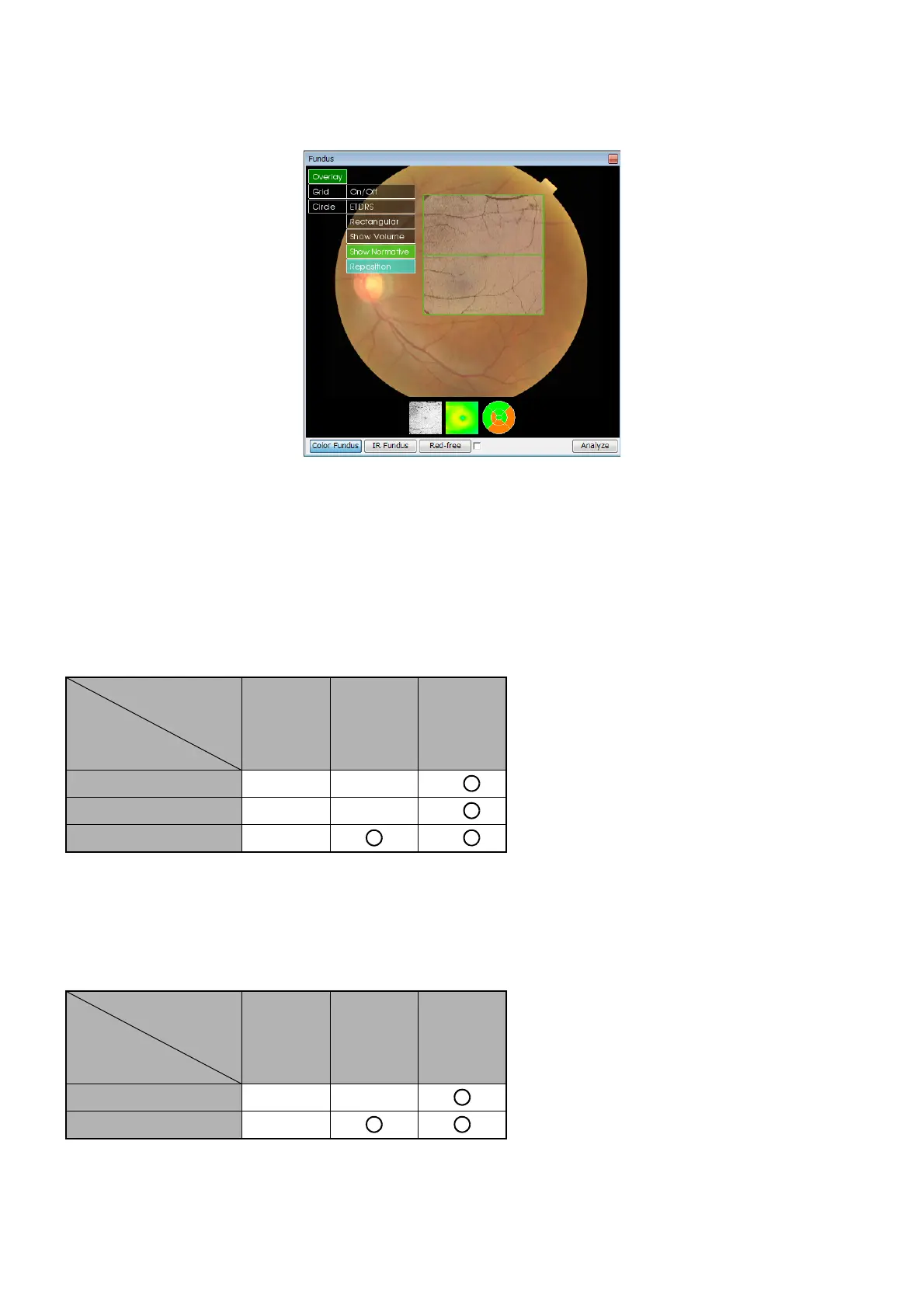

To rearrange the Overlay image, click [Overlay] and then [Reposition]. Place the cursor on the image. As
pressing the left mouse button, drag the image to an optional position.
To make transparent the Overlay image, click [Overlay] while the Overlay image is on the screen and
press [Transparent]. Press it again, and the image returns to its original status.
The table below shows the relation between the Overlay image and the usable scan patterns. Only the
Projection image is displayed for 3D Scan of anterior segment.
#1: The Overlay image can be displayed only for the original image.
#2: The Overlay image can be displayed only for the analyzed image.
The table below shows the relation between the Reposition and Transparent functions and the usable
scan patterns.
Scan
pattern
Line/
5Line
Cross
Radial
3D/
3D (V)/
3D Wide
Overlay
Projection - - #1
Shadowgram - - #2
Thickness Map - #2
Scan
pattern
Line/
5Line
Cross
Radial
3D/
3D (V)/
3D Wide
Overlay
Reposition - -
Transparent -
After rearranging the projection image
(The 3D scanning area has been moved to
the upper right.)
