TestProcedure–FrontWheelMotor(continued)

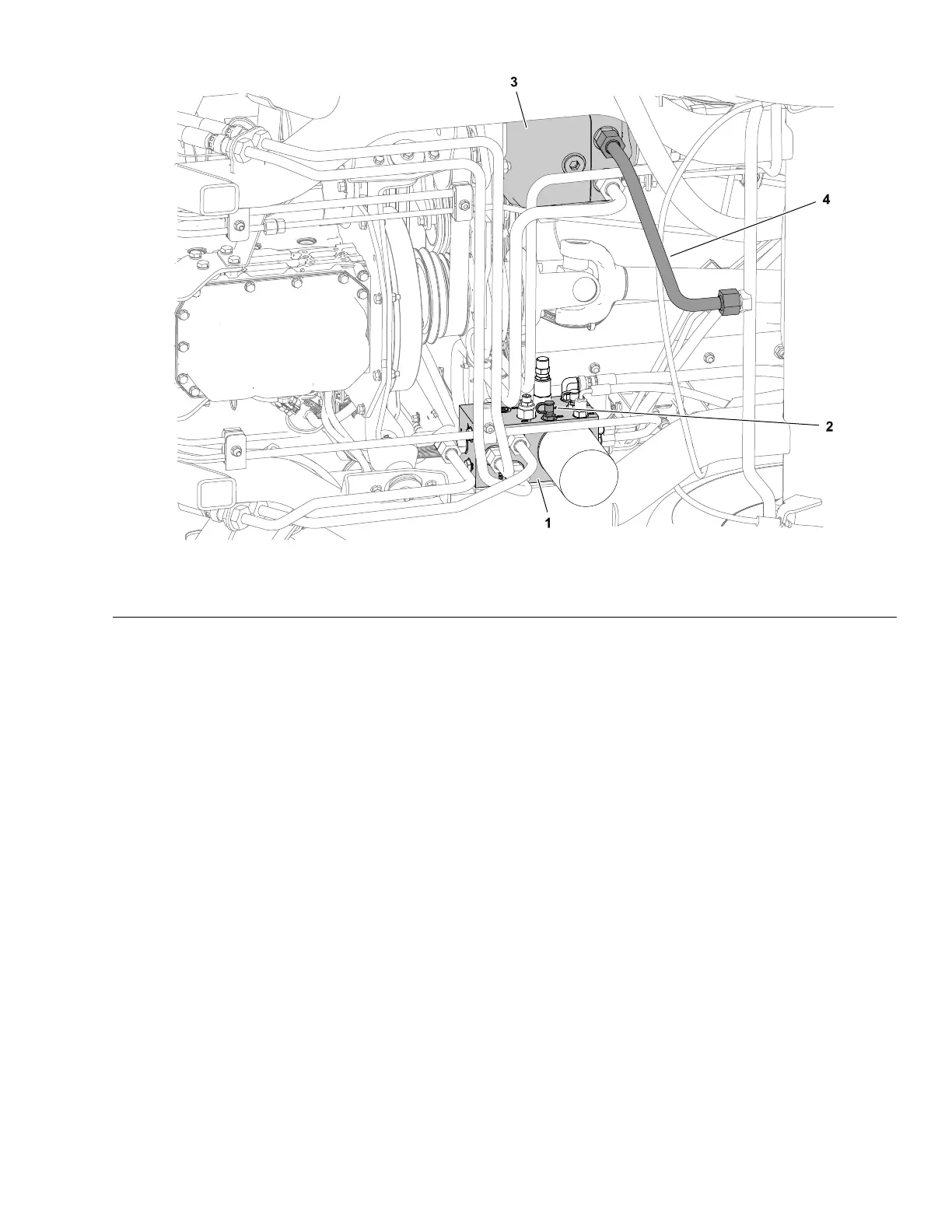

g299124
Figure31
1.Hydraulicpump(P1)
2.Hydraulictube
2.Removethehydraulictubeanduse2hydraulichosestoinstallthetesterto
theexposedttings.Makesurethetesterisinstalledinthecorrectow
direction(towardthewheelmotors)andthetesterowcontrolvalveisfully
open.
Note:Removeandreinstallthewheeltoaccessthewheelmotorhydraulic
connectionsifnecessary.
3.CleananddisconnectthehydrauliclinefromtheAportofthefrontwheel
motorthatisnotbeingtested.
