FuseIdenticationandFunction(continued)
connector,theoptionalwirelesshourmeterandtheoptionalUSBcharger
port.
•FB2–F2:(15Amp)suppliesswitchedpowertotheoptionalairrideseat.
•FB2–F3:(openslot)availabletosupplypowertoaccessories.
•FB2–F4:(models31900,31901,31902and31907=openslot,models
31903and31909=10Amp)suppliesswitchedpowertocab.

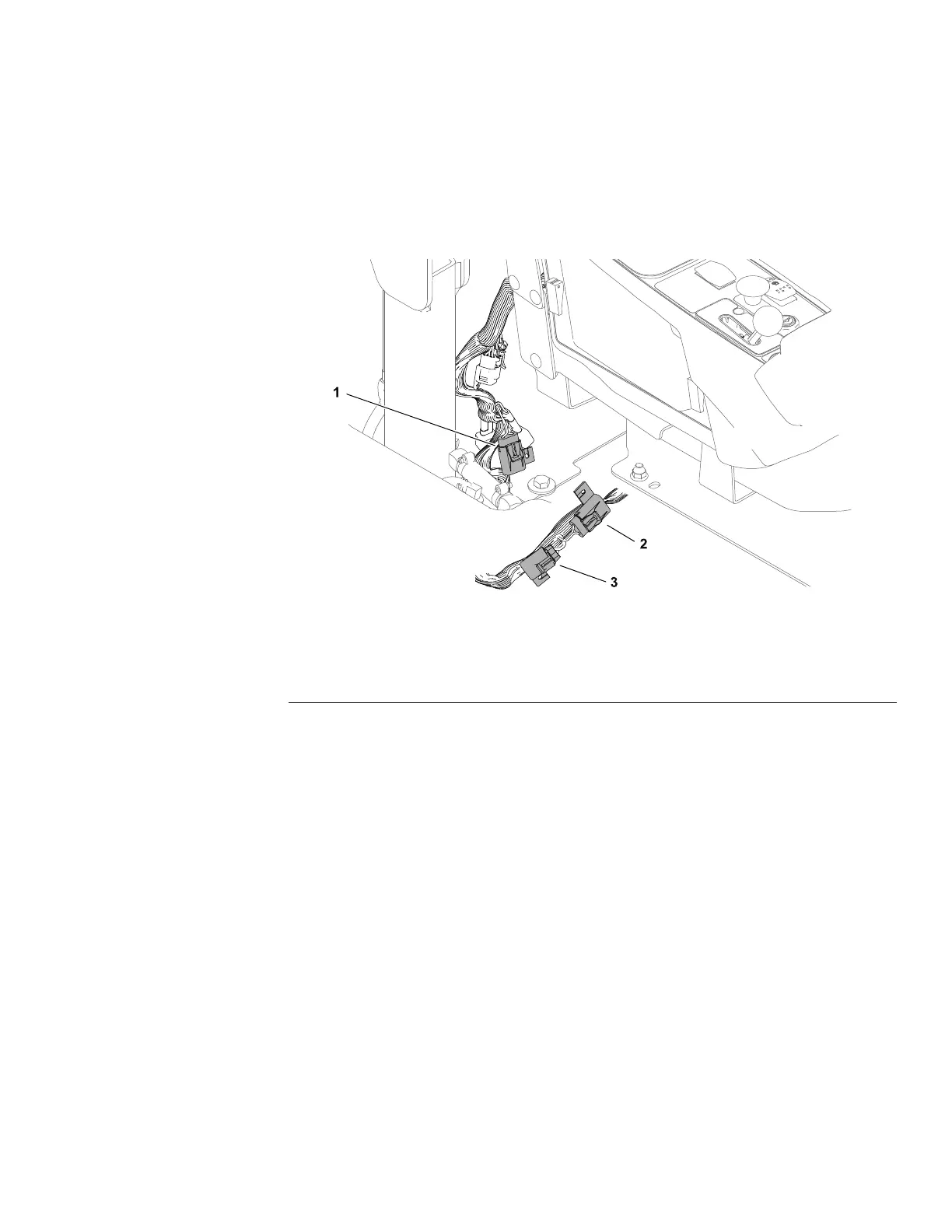

In-lineFuses
g305214
Figure79
1.Fuse–telematicsconnector
3.Fuse–engineECU(models31902and
31903)
2.Fuse–expansionport
•Locatedabovetheoperator’splatforminrightrearcorner:(10Amp)supplies
unswitchedpowertothetelematicsconnector.
•Locatedbelowtheoperator’splatforminrightrearcorner:(10Amp)supplies
unswitchedpowertotheexpansionport.
•Locatedbelowtheoperator’splatforminrightrearcorner:(10Amp)supplies
unswitchedpowertotheengineECU(models31902and31903).
CabPowerSupplyHarness(models31903and31909)
Groundsmaster
®
3200,3300and3310
Page6–13
ElectricalSystem:TestingtheElectricalComponents
19240SLRevA
