FuseIdenticationandFunction(continued)

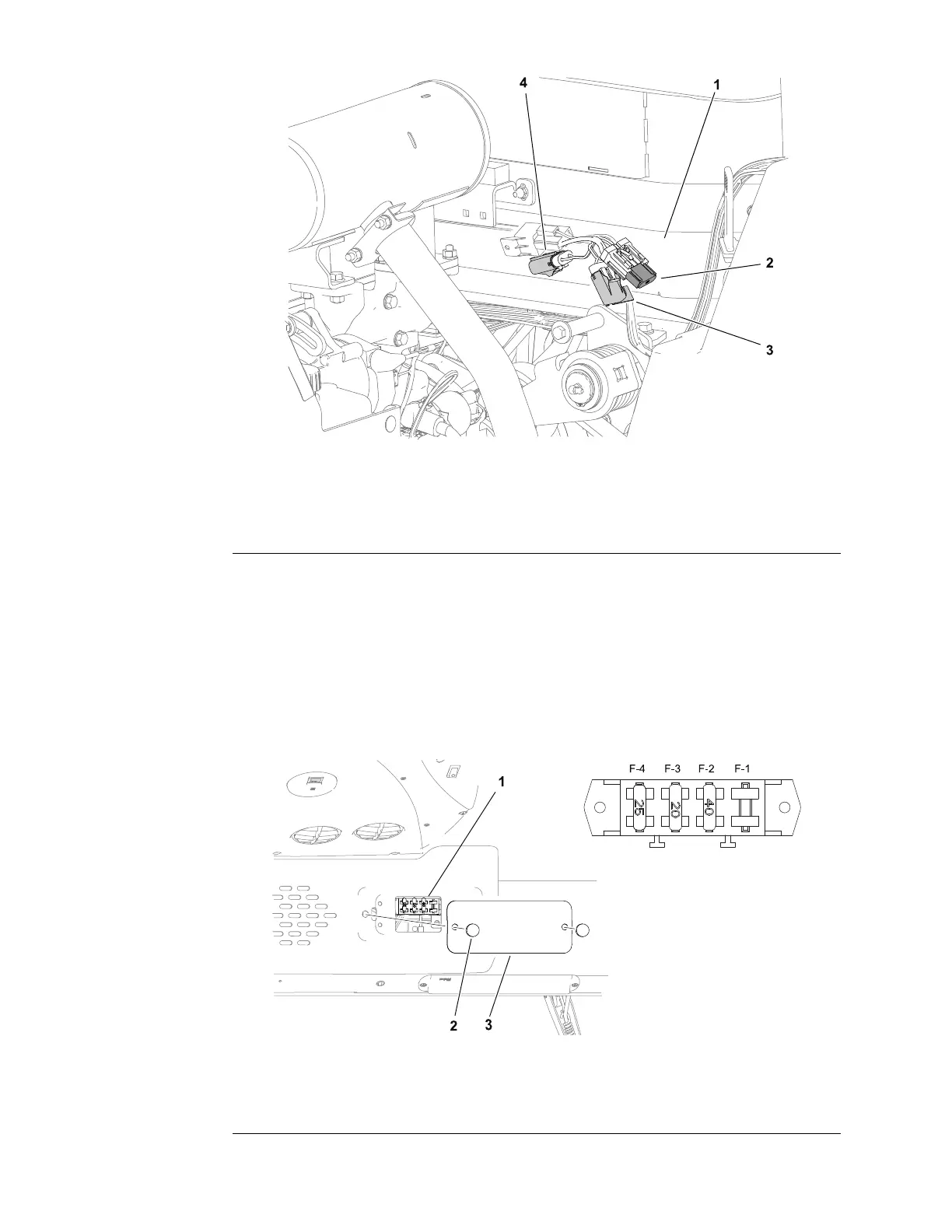

g307136
Figure80
1.Framecrossmember
3.Fuse–hazardlights(optional)
2.Maxifuse–maincabpowercircuits
(models31903and31909)
4.Fuse–radio(optional)
•Locatedalongtheframecrossmemberinfrontoftheengine:(60AmpMaxi
fuse)suppliesunswitchedpowertothecabpowercircuitsviathecabpower
relay.
•Locatedalongtheframecrossmemberinfrontoftheengine:(15Amp)
suppliesunswitchedpowertotheoptionalhazardlightcircuit.
•Locatedalongtheframecrossmemberinfrontoftheengine:(10Amp)
suppliesunswitchedpowertoanoptionalradio.
CabFuseBlock(models31903and31909)
g256627
Figure81
1.Cabfuseblock
3.Accesspanel
2.Knob(2each)
ElectricalSystem:TestingtheElectricalComponents
Page6–14
