FuseIdenticationandFunction(continued)
•FuseF-1(openslot)suppliesswitchedpoweravailableforoptional
equipment.
•FuseF-2(40Amp)suppliesswitchedpowertothemixingboxblower,the
defrosterblowerandthedomelight.
•FuseF-3(20Amp)suppliesswitchedpowertothewindshieldwipersand
washerpump.
•FuseF-4(25Amp)suppliesswitchedpowertothecondenserfansand
compressorclutch.

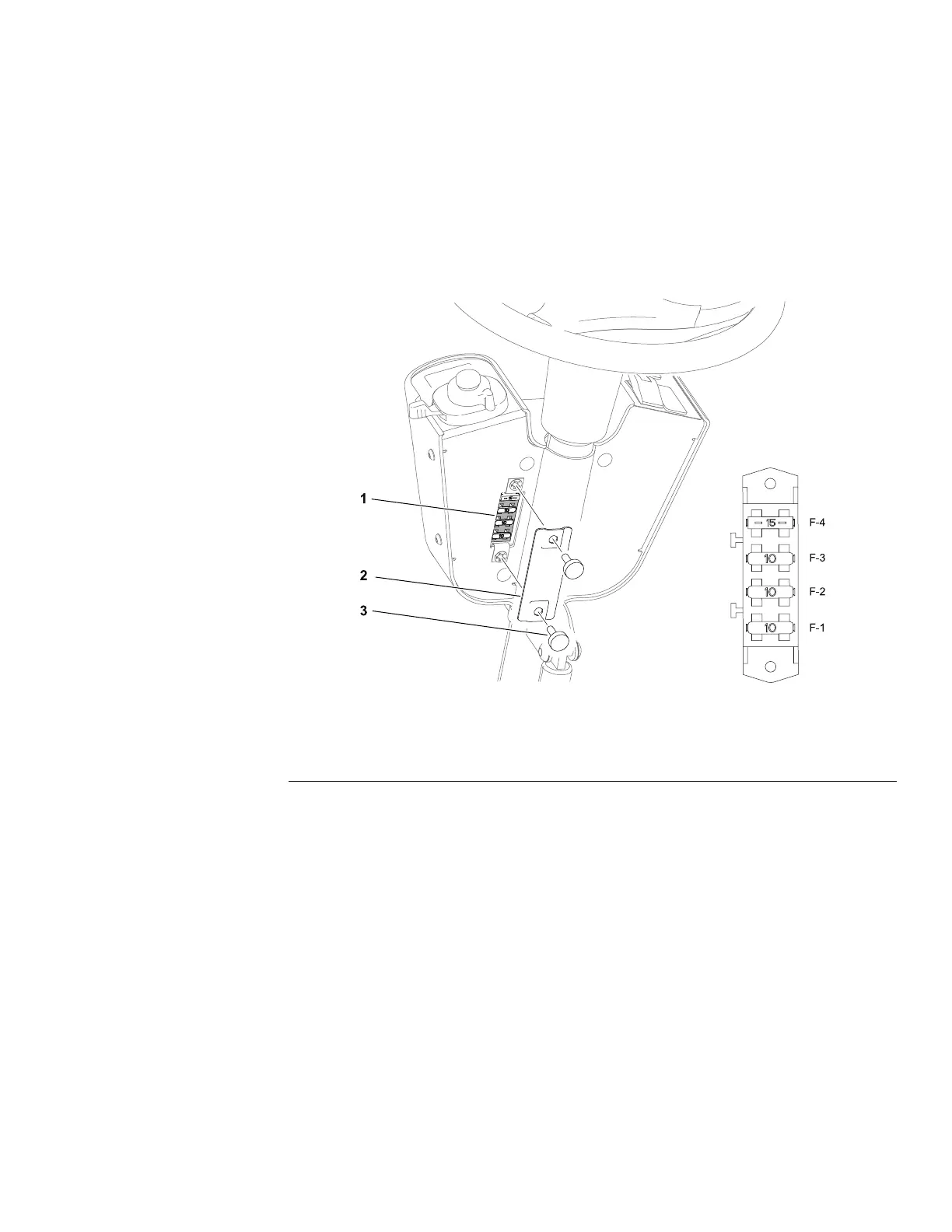

RoadLightKit(Optional)–FuseBlock
g306148
Figure82
1.Controlpodfuseblock3.Knob(2each)
2.Accesspanel
•FuseF-1(10Amp)suppliesswitchedpowertotheworklights.
•FuseF-2(10Amp)suppliesswitchedpowertothebeacon.
•FuseF-3(10Amp)suppliesswitchedpowertotheroadlights.
•FuseF-4(15Amp)suppliesswitchedpowertothehorn.
RoadLightKit(Optional)–Harness
Groundsmaster
®
3200,3300and3310
Page6–15
ElectricalSystem:TestingtheElectricalComponents
19240SLRevA
