FuseIdenticationandFunction(continued)
g305189

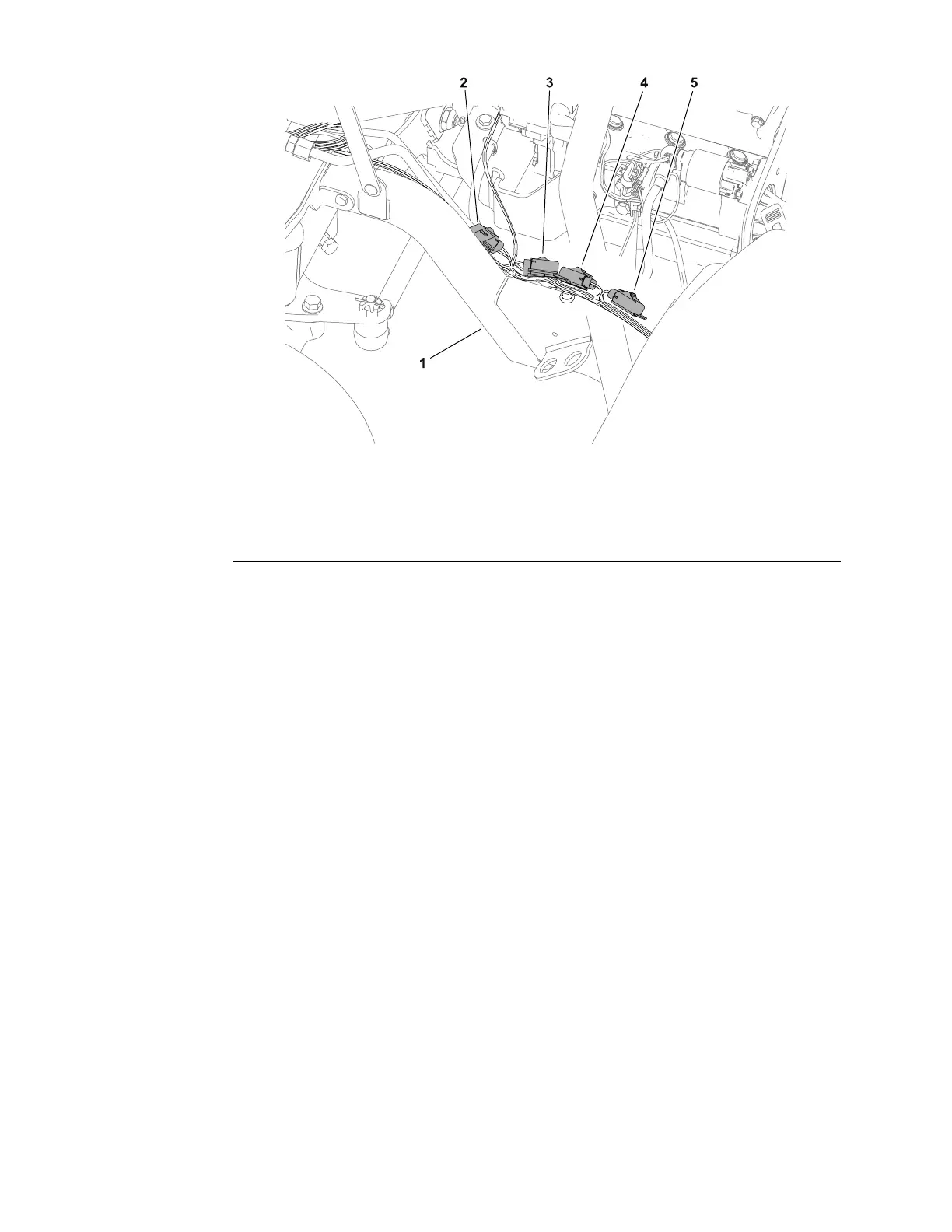

Figure83
1.Rightsideframerail4.Fuse–LHbrake/turn
2.Fuse–RHtaillight5.Fuse–LHtaillight
3.Fuse–RHbrake/turn
Four(5Amp)fusesareintegratedintotheoptionalturnsignal/hazardwire
harness.Eachfuseisinaseparatecoveredfuseholder.Thefusesarelocated
alongtherightsideframerailneartheexhaustpipe.
TestingtheFuses
1.Parkthemachineonalevelsurface,lowerthecuttingunit(orattachment),
engagetheparkingbrake,setthekeyswitchtotheOFFpositionandremove
thekeyfromthekeyswitch.
2.Removethefusefromthefuseblockorfuseholderfortesting.Checkthe
fuse,fuseblockorfuseholderfordamageorcorrosionandcleanorrepair
ifnecessary.
3.Useamultimeter(ohmssetting)andtestthefuseforcontinuityacrossthe
fuseterminals.
4.Replacethefuseiftestingdeterminesthatitisdamaged.
5.Ifthefusetestscorrectlyandacircuitproblemstillexists,checkthewire
harness(es);refertoAppendixA(pageA–1).
ElectricalSystem:TestingtheElectricalComponents
Page6–16
Groundsmaster
®
3200,3300and3310
19240SLRevA
