Toro Groundmaster Series - Idler Assemblies

IdlerAssemblies

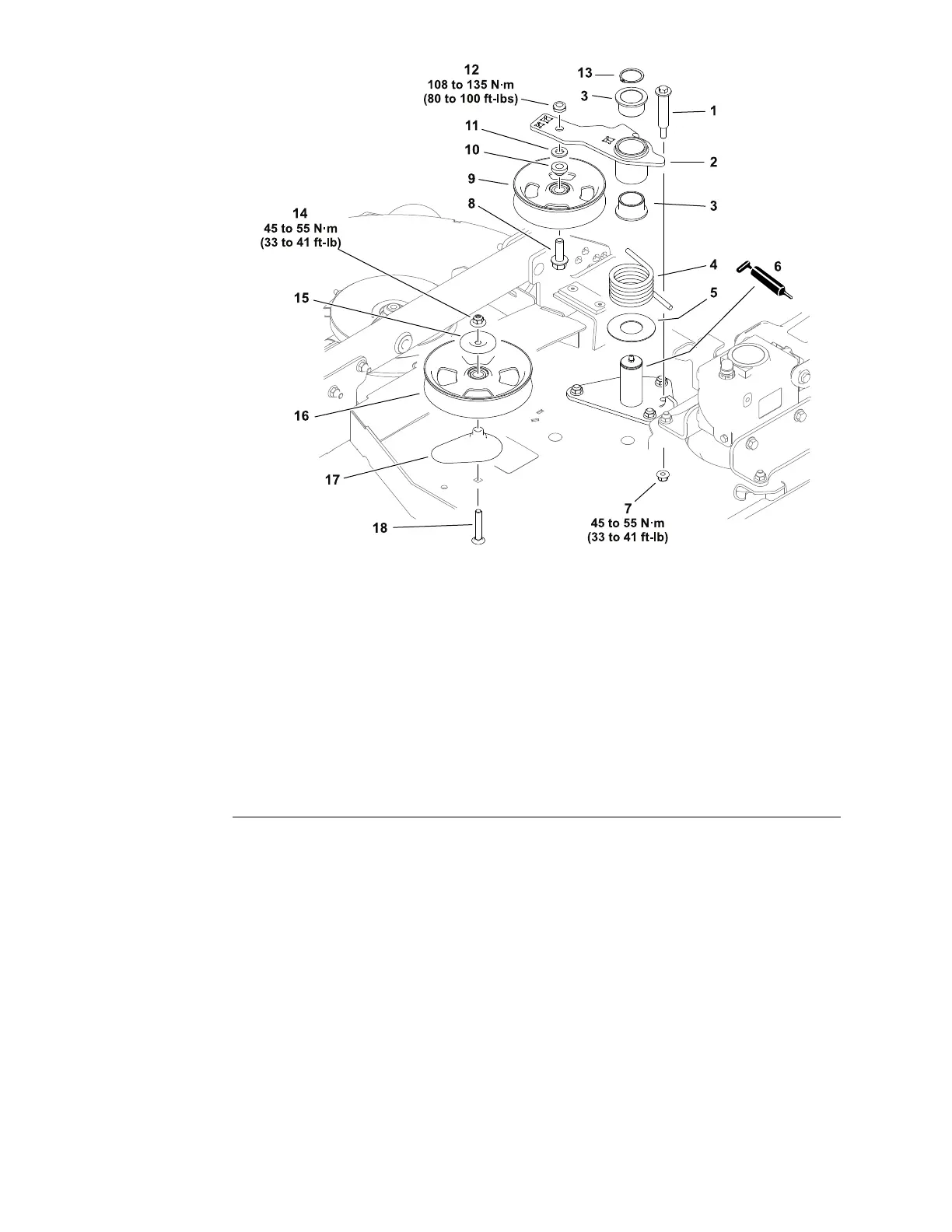

g315036
Figure132
(sidedischargecuttingunitshown)
1.Shoulderbolt10.Spacer
2.Idlerlever11.Washer
3.Flangebushing(2each)
12.Locknut
4.Torsionspring13.Retainingring
5.Washer14.Flangenut
6.Idlerpivot15.Dustshield
7.Flangenut16.Idlerpulley
8.Capscrew
17.Pulleyspacer
9.Idlerpulley
18.Carriagebolt
RemovingtheTensioningIdlerAssembly
RefertoFigure132forthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunit,engagethe
parkingbrake,setthekeyswitchtotheOFFpositionandremovethekey
fromthekeyswitch.
2.Removethebeltcoversfromthecuttingunit.
3.Usea3/8inchor1/2inchdriveratchetorbreakerbarintheidlearmto
releasethedrivebelttension.
4.Slipthedrivebeltoffthegearboxpulleyandallowtheidlertorestagainst
theshoulderbolt.
5.Removethefastenerssecuringthetensioningidlerassemblytothecutting
unitandremovetheassembly.
6.Securetheidlerassemblyinavisebyclampingontheidlerpivotplate.
CuttingUnits:ServiceandRepairs
Page8–4
Groundsmaster
®
3200,3300and3310
19240SLRevA
