6-34 Qualitek mR Owner’s Guide

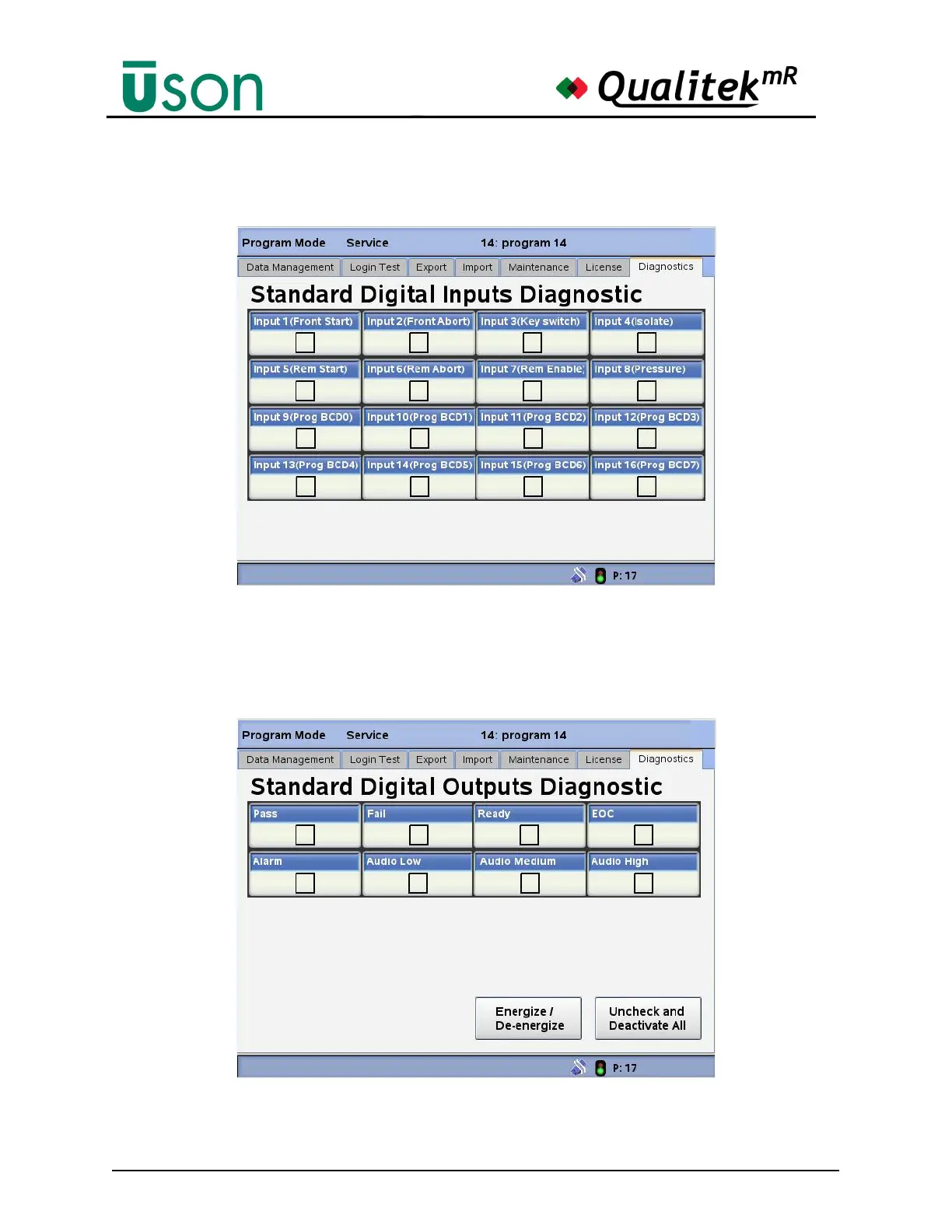

Standard Digital Inputs Diagnostics
The Standard Digital Inputs screen is used to test standard digital inputs 1 to 16.
Standard Digital Outputs
The Standard Digital Outputs screen is used to test these digital outputs: pass, fail,
ready, EOC, alarm, and audio.
