8.12 Bar Code Scanner Initial Setup

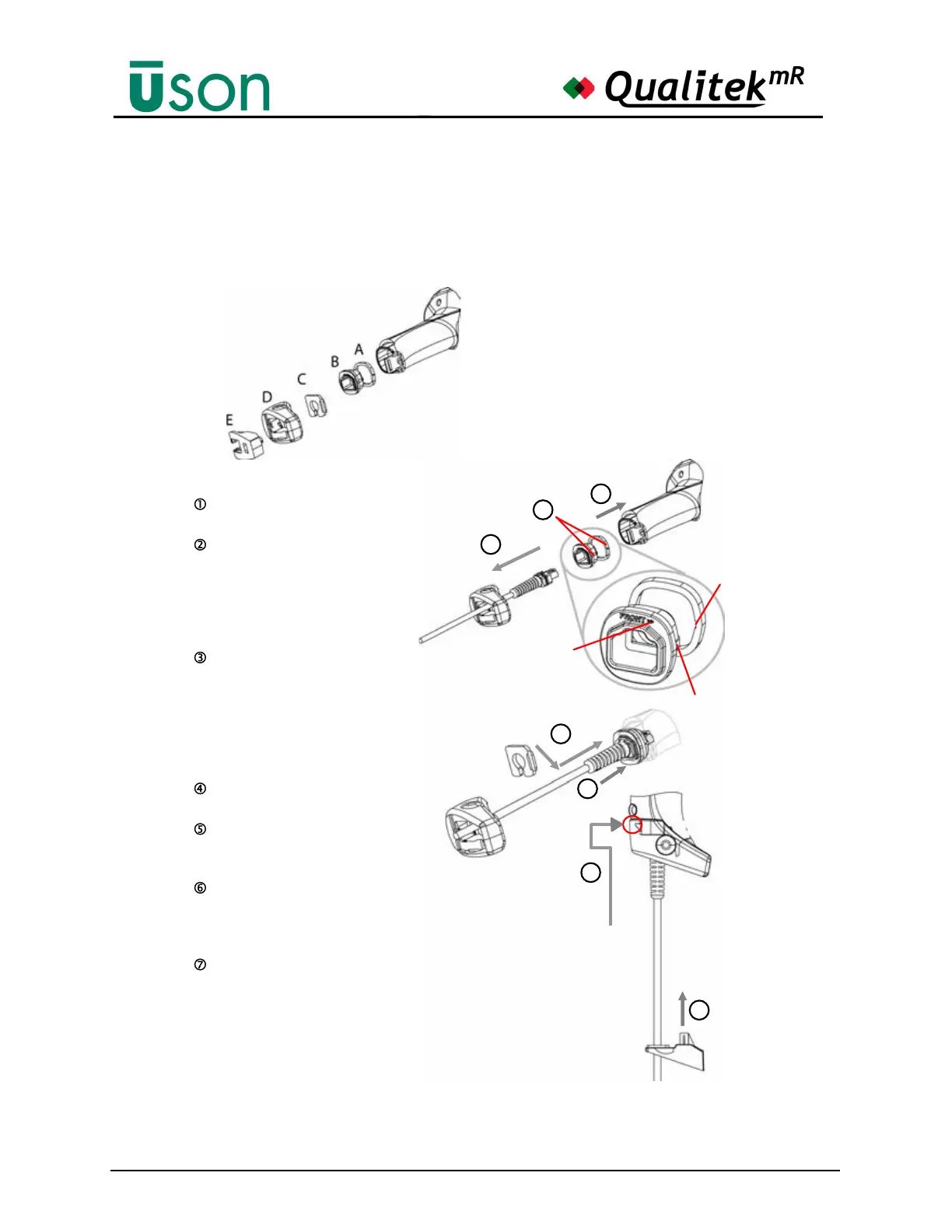

If you have purchased the optional bar code scanner, assemble it according to the
instructions below.
CONNECTING THE CABLE
A. Rubber gasket
B. Plastic boot
C. Cable spacer
D. Cover
E. Strain relief
Slip the cover over the
cable.
Push the plastic boot into
the rubber gasket. Take
care that the tab on the
plastic boot is aligned with
the notch in the rubber
gasket.
Push the plastic boot and
gasket into the handle.
Ensure that the “Front”
marking on the plastic boot
is facing out, with the
arrow .pointing towards
the front of the scanner.
Insert the cable into the
socket of the plastic boot.
Insert the cable spacer
into the cable wire and
slide it towards the handle.
Push the cover along the
cable towards the reader,
and hook it over the yellow
“tooth”.
Insert the strain relief into
the cover and tighten the
screw to x the whole
assembly to the reader
handle.
Notch
Align
3
4
5
6
7
Tab
Arrow
1
2
