5-32 Qualitek mR Owner’s Guide
5.2.11 Calibrate
Leak Calibration is sometimes known as comp and cal or test calibration. Calibrate
is available only if the current test has the Leak Rate Measure Type (See
"Specifications" on page 6-4.). The Calibrate button will be dimmed and it will not be
selectable if the current test is a Pressure Change Measure Type,.

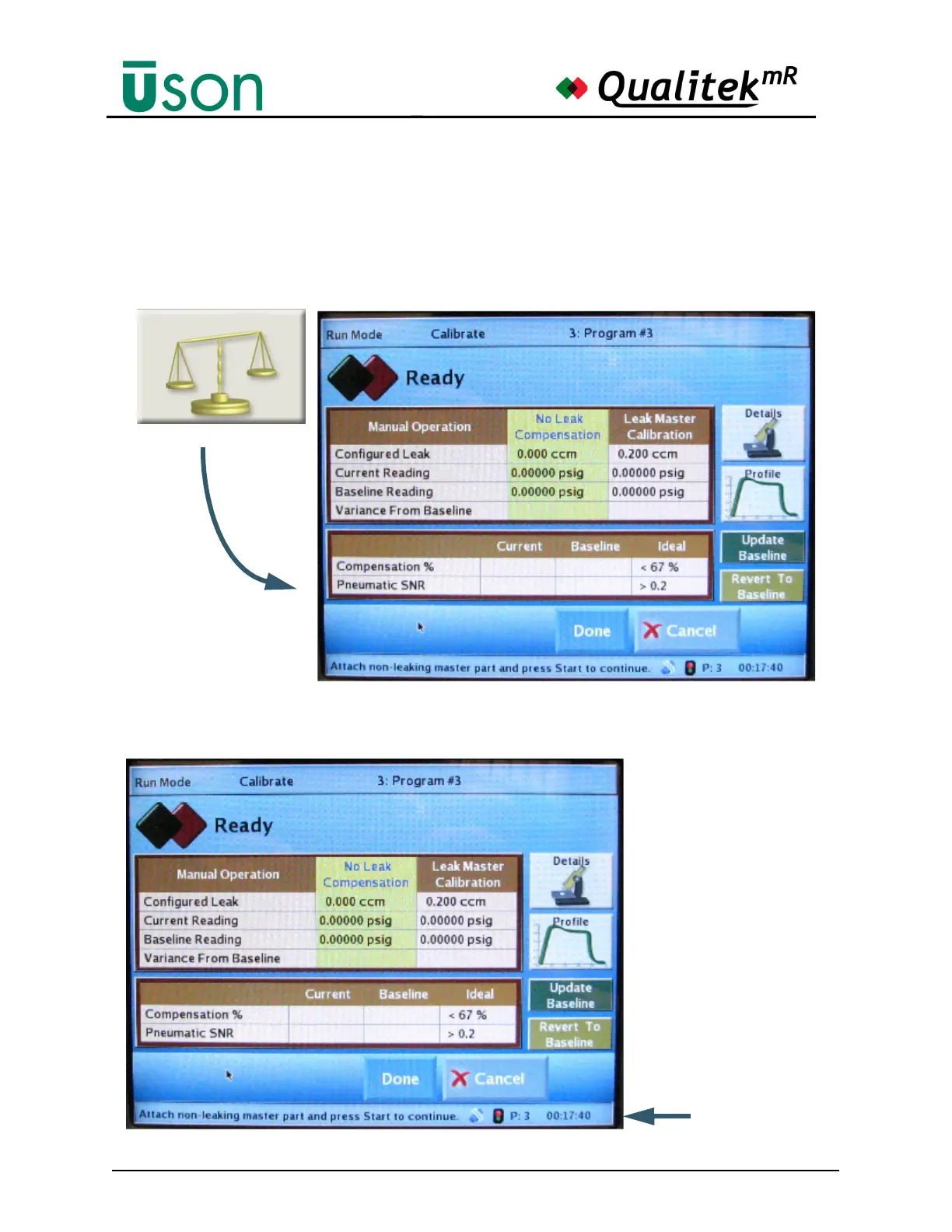

Leak rate calibration can be performed by following the prompts shown at the
bottom of the Calibration screen.
Step-by-step
Instructions are
given on the
status bar.
Note: the SNR number of 0.2
displayed in these figures is
for a differential tester. For a
gauge tester, the SNR
number will be 0.5.
