Program Mode 6-75
Modbus Registers Tab Settings

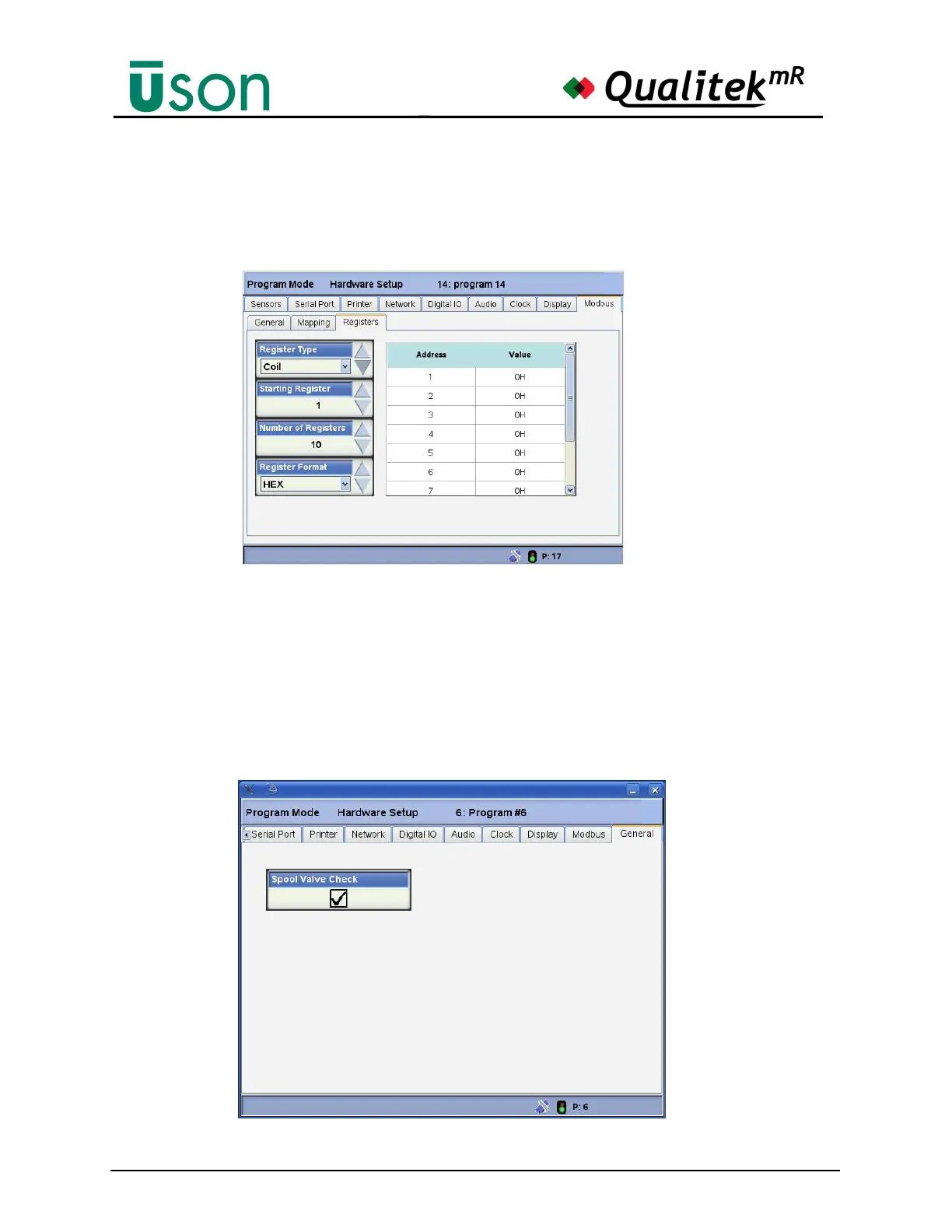

This tab is where you configure your system’s Modbus registers. An example of
this screen is shown below. Normally, these settings will be provided by, or are
made by, your site Programmer or System Integrator.
6.2.5.10 General
Spool Valve Check: The General tab includes a Spool Valve Check feature that
monitors the status of the equalization valve during a differential pressure decay
test, and aborts the test and reports an error if it detects the valve is in the wrong
position. This option allows you to enable or disable the check to investigate cause
of the error. Tests should not be performed with this option disabled unless the
operation is periodically checked.
