Engine (continued)
6. Loosen the pinch bolt .
7. Remove the three mounting bolts
from the stub shaft .
8. Remove the drive shaft from the machine.
9. To install the drive shaft, position the drive shaft on the hydraulic pump shaft.
Note: Apply blue thread locker to the three stub shaft mounting bolts before
installation.
10. Align the stub shaft mounting holes with the crankshaft and install the three stub
shaft mounting bolts.
11. Tighten the pinch bolt.
12. Adjust the RPM sensor; refer to Adjusting the RPM Sensor, page 6–54.
13. Install the canvas cover.
14. Install the radiator; refer to 4520P Installing the Radiator, page 4–16.
15. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Removing and Installing the Throttle Cable

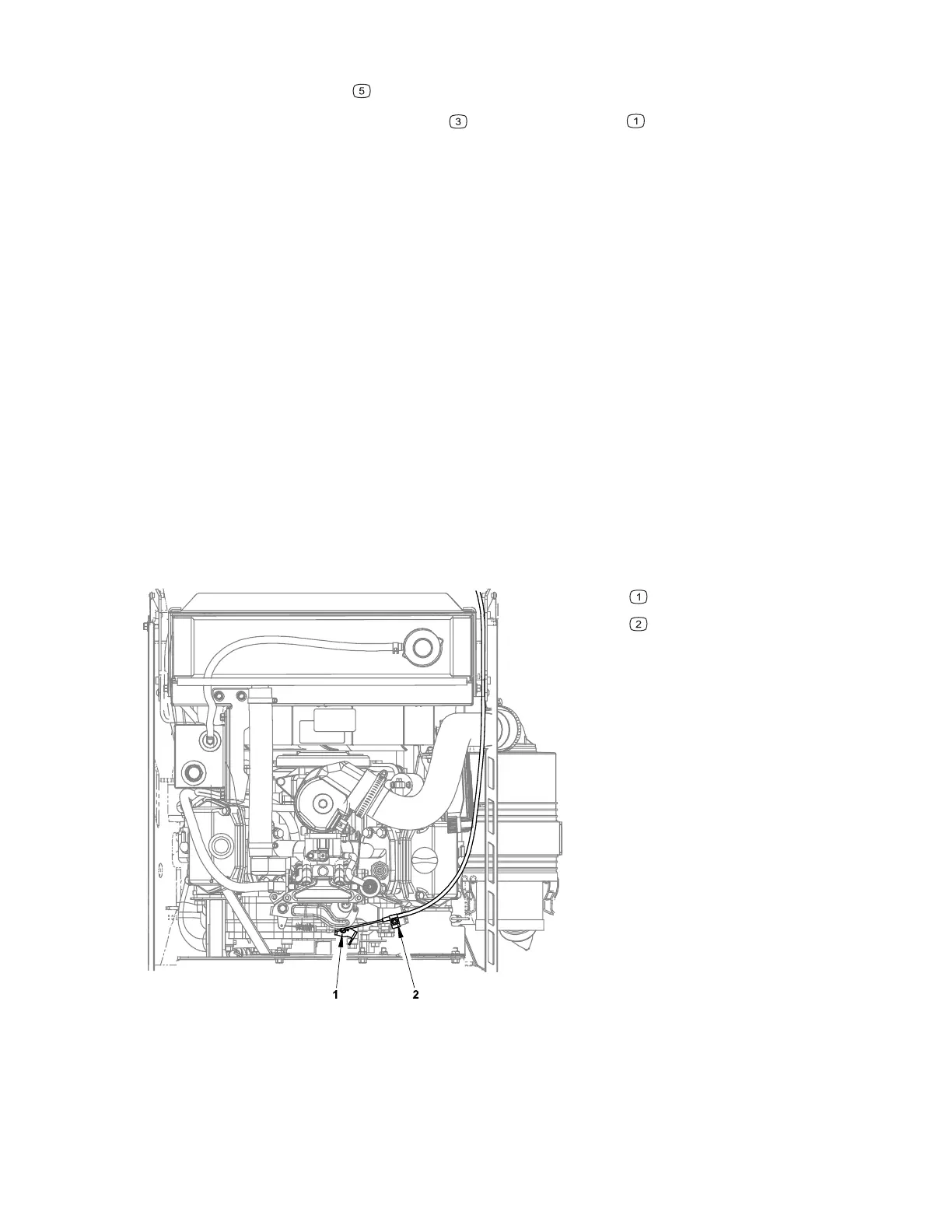

Figure 15
G452227
Throttle linkage clamp
Housing clamp
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
Engine: Engine Service and Repairs Page 4–20 4520P
