Xerox 7750DXF - Phaser Color Laser Printer - Page 231

Service Parts Disassembly 8-19

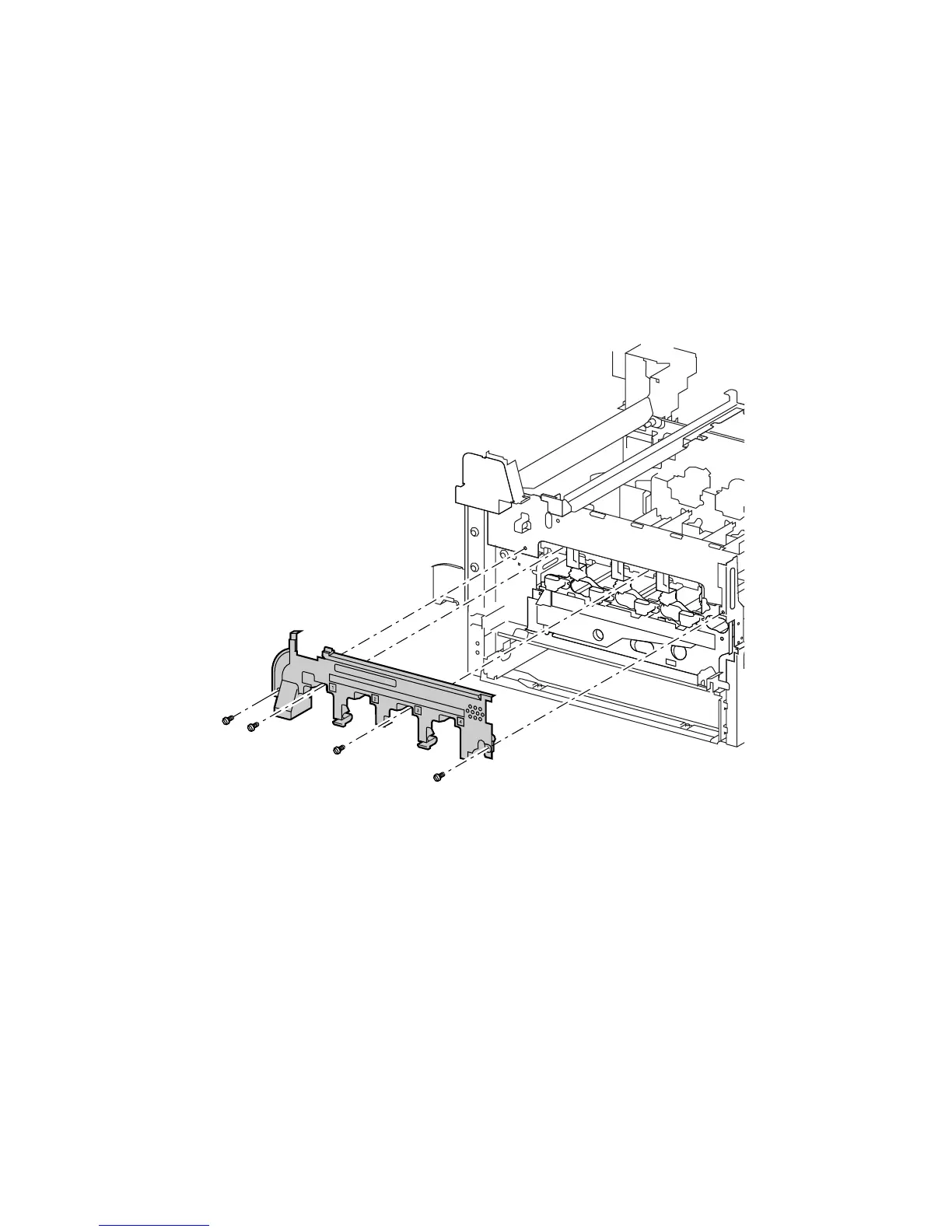

Imaging Unit Plate Cover
1. Open the front door.
2. Remove fuser front cover.
3. Lower the main lever.
4. Slide imaging units 1 and 3 out slightly.
5. Remove 4 black screws.
6. Remove the plastic imaging unit plate cover.
