8-34 Phaser 7750 Printer Service Manual
Belt Cleaner

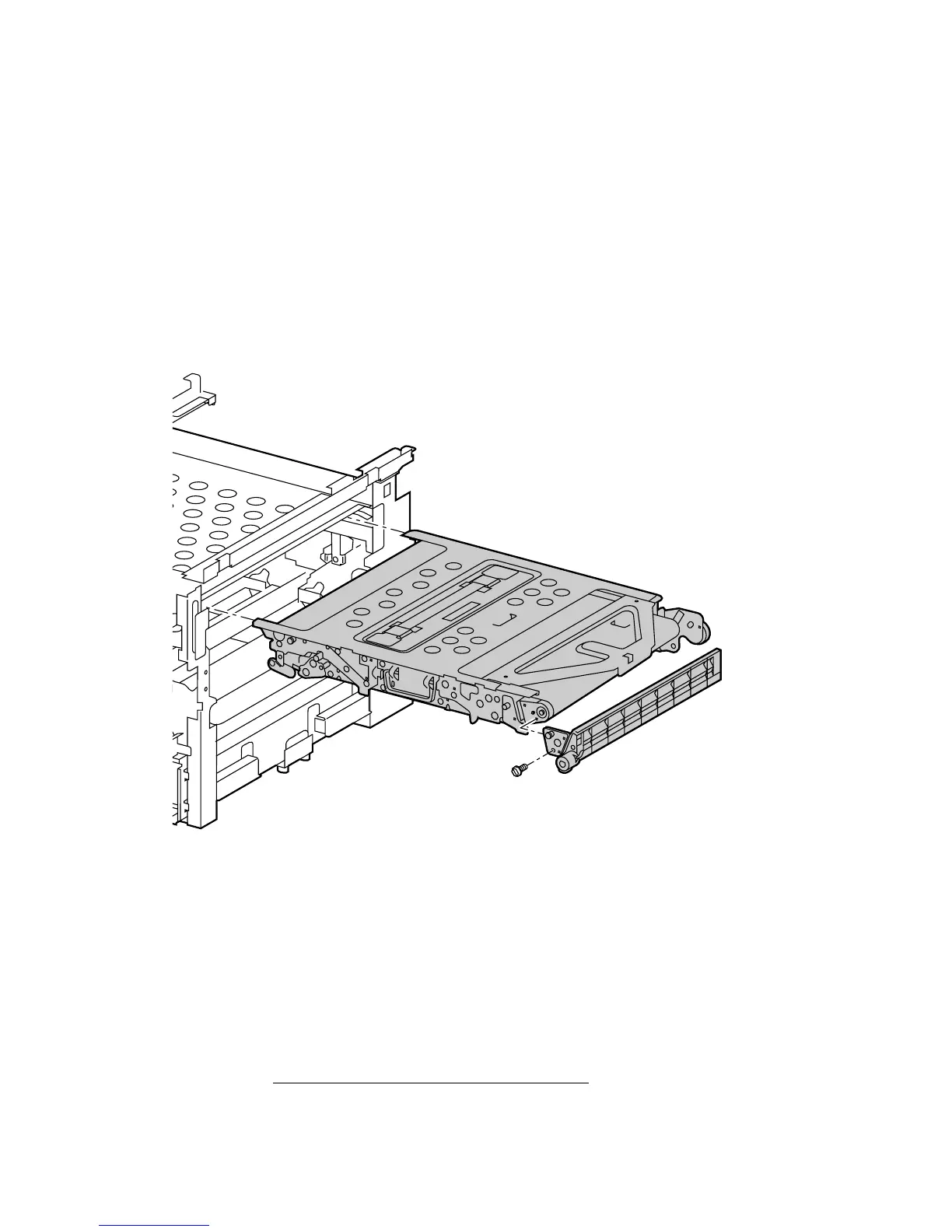

1. Open the right-hand door.
2. Open the front cover and lower the main lever.
3. Lift the accumulator belt locking lever and pull the assembly out a few inches.
4. Using a 2.5 mm hex driver remove the 2 screws on the left side of the belt cleaner
assembly.
5. Remove the belt cleaner assembly being careful not to spill toner.
Replacement Procedures
Caution
Never run the printer without the belt cleaner installed or severe damage to
the Accumulator Belt can occur.
Ensure that the accumulator belt is fully inserted or severe printer damage
can result. NEVER FORCE THE MAIN LEVER!
7750-131
