Service Parts Disassembly 8-45

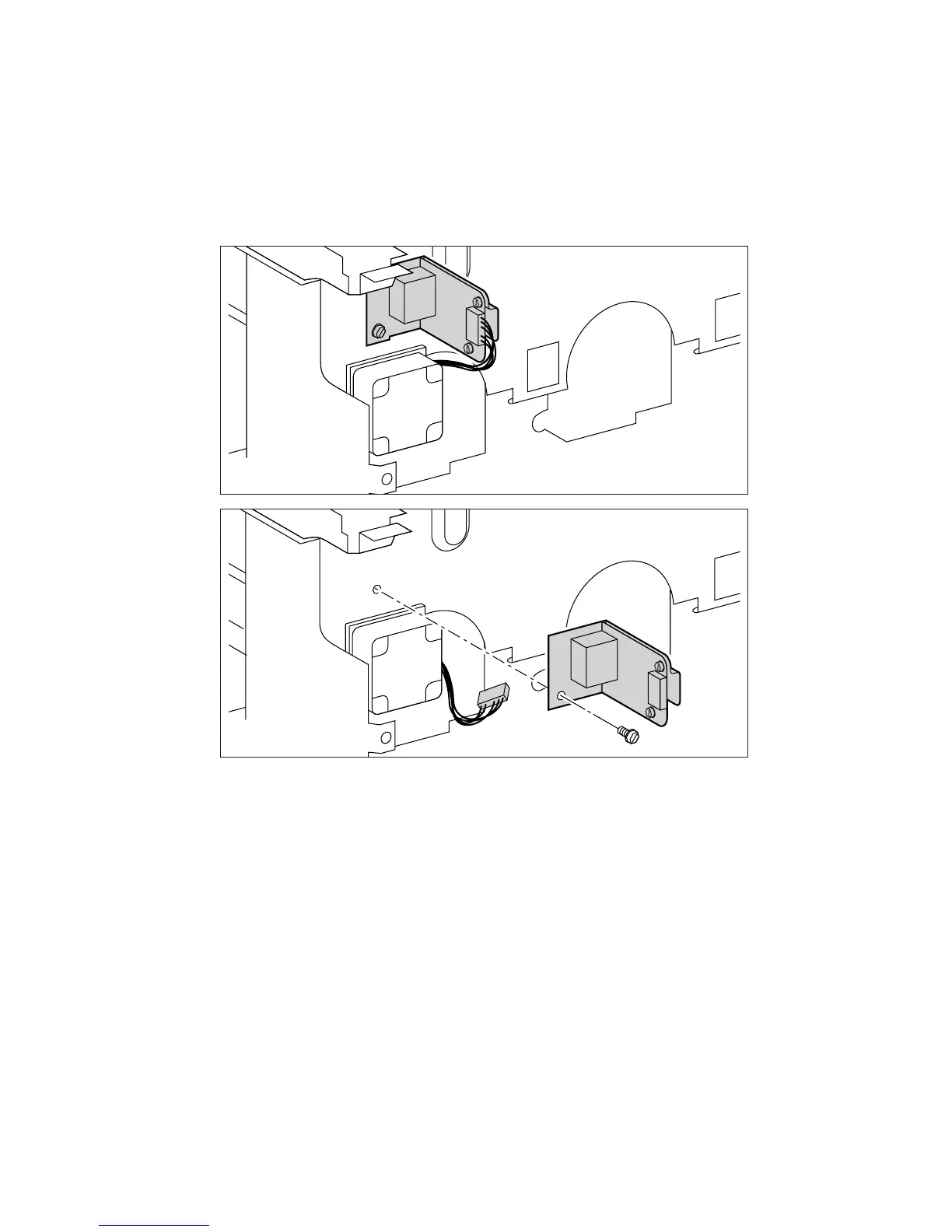

LD Power Relay
1. Remove the rear cover and shield.
2. Disconnect the wiring harness.
3. Remove 2 screws securing the LD power assembly.
4. Remove the LD power assembly.
Fig. 2
Fig. 1
7750-232
