8-46 Phaser 7750 Printer Service Manual

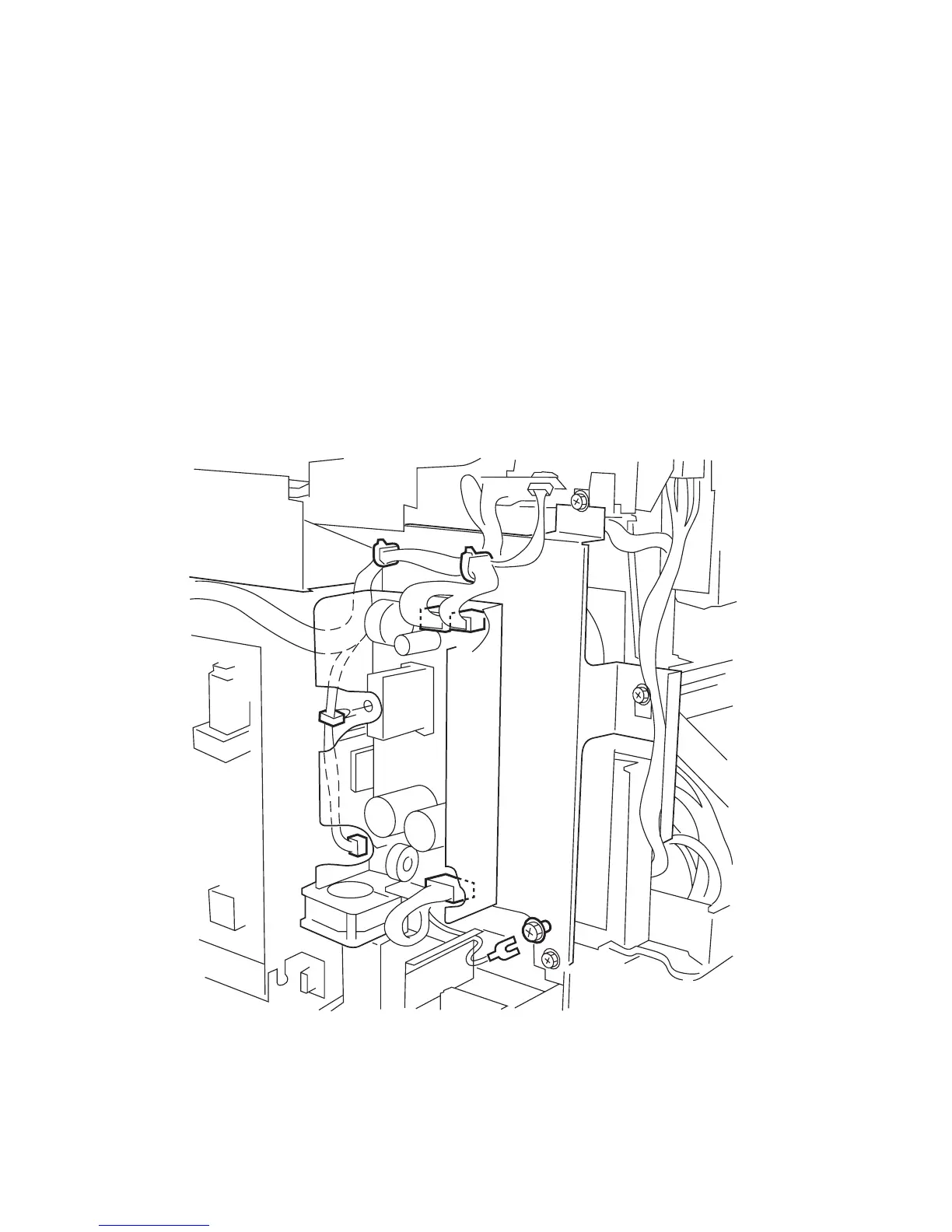

24 VDC Low-Voltage Power Supply, Fan and Bracket
1. Remove the rear cover and 24 VDC shield.
2. Remove the top rear cover and left-hand rear mid covers, see page 8-7.
Note
If only the power supply needs to be removed, disconnect the wiring harness
and loosen the 2 screws that secure the power supply to the PS mounting
bracket.
3. Disconnect the wiring harness at P502, P505, and P2 from the 24 VDC power
supply and the fan motor wiring harness P214.
4. Remove the 1 screw at the top of the bracket and loosen the remaining four
screws in slots.
5. Remove the power supply and bracket assembly.
7750-024
To Next Page
