Xerox 7750DXF - Phaser Color Laser Printer User Manual

Service Parts Disassembly 8-47
T2 High-Voltage Power Supply

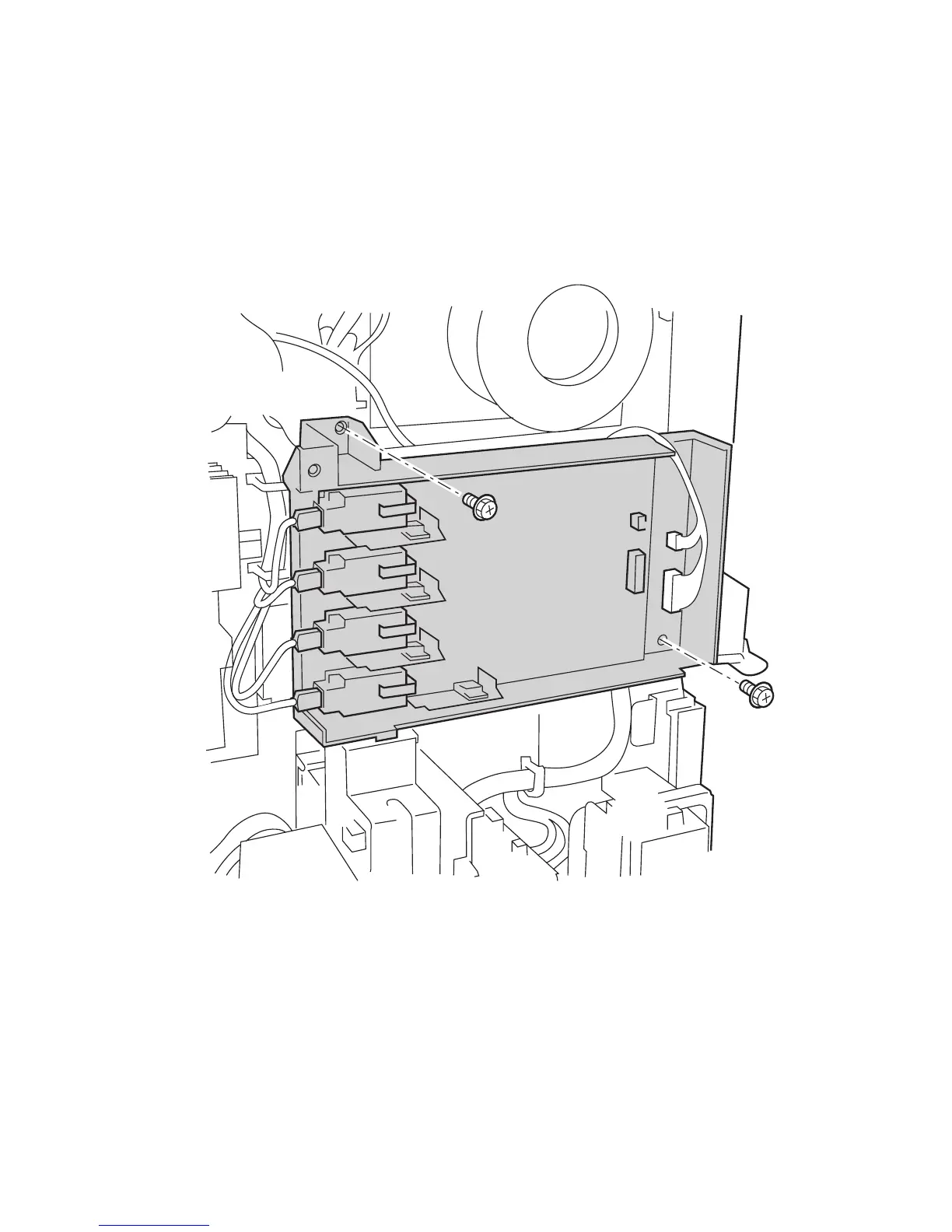

1. Remove the 24 VDC Power Supply and Bracket, see page 8-46.
2. Disconnect the high-voltage wires from the KCMY connectors.
3. Disconnect the wiring harness from J575 and J576.
4. Remove the 2 screws that secure the T2 power supply to the printer frame.
5. Remove the T2 high-voltage power supply.
K
C
M
Y
7750-025
