4-5
GENERAL CHASSIS (1)

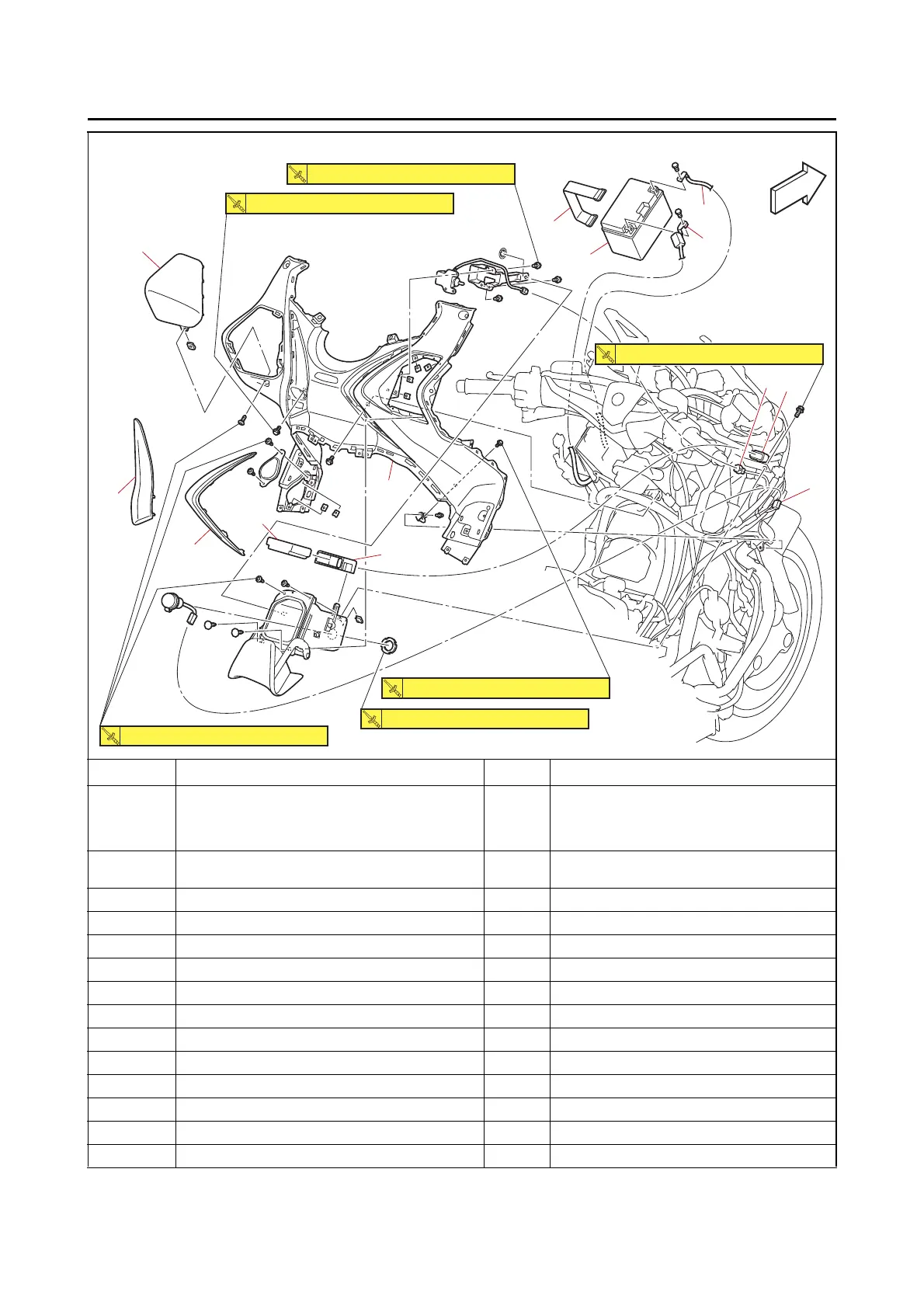

Removing the battery and leg shield assembly
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Rear side cowling assembly/
Front cowling assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Battery cover 1
2 Negative battery lead 1 Disconnect.
3 Positive battery lead 1 Disconnect.
4 Battery band 1
5Battery 1
6 Storage compartment lid lock solenoid coupler 1 Disconnect. (for XP560D)
7 Remote control unit coupler 1 Disconnect.
8 Auxiliary DC jack coupler 1 Disconnect.
9 Inner panel 2
10 Leg shield assembly 1
11 Holder 1
12 Remote control unit 1
FWDFWD
1
2
3
4
5
6
7
8
9
9
10
11
12
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
4.3 N・m (0.43 kgf・m, 3.2 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
2.8 N・m (0.28 kgf・m, 2.1 lb・ft)
To Next Page
