4-41
FRONT BRAKE

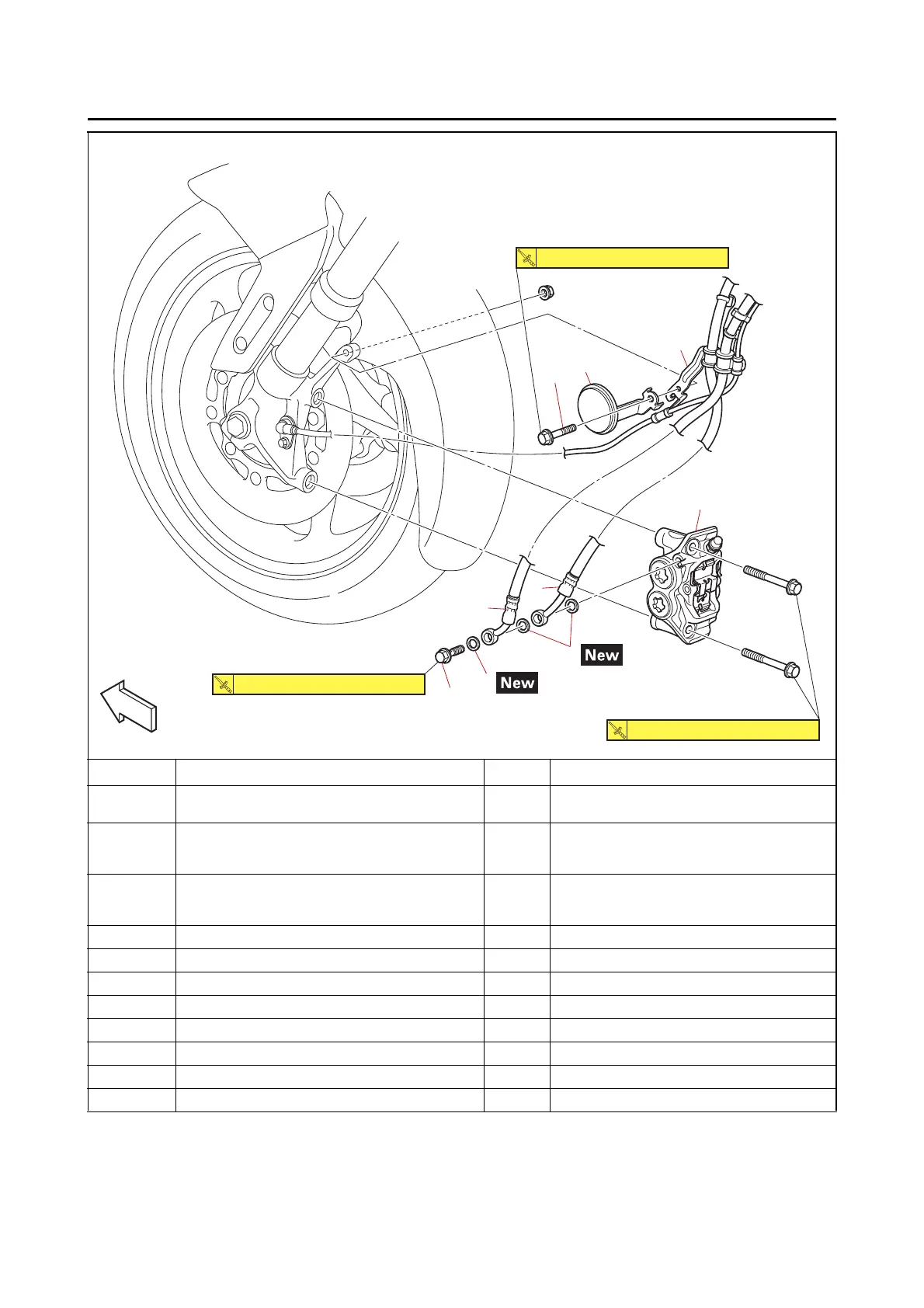

Removing the front brake calipers
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
1 Front brake hose holder bolt 1
The tightening torque of the front brake hose
holder bolt on the right side is 7 N·m (0.7
kgf·m, 5.2 lb·ft).
2 Front brake hose holder 1
3 Front reflector 1
4 Brake hose union bolt 1
5 Brake hose gasket 1 Left side only
6 Front brake hose 1 Left side only
7 Brake hose gasket 2
8 Brake hose 1
9 Front brake caliper 1
FWDFWD
1
4
5
7
9
3
8
6
2
35 N・m (3.5 kgf・m, 26 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
9 N・m (0.9 kgf・m, 6.6 lb・ft)
