FRONT BRAKE

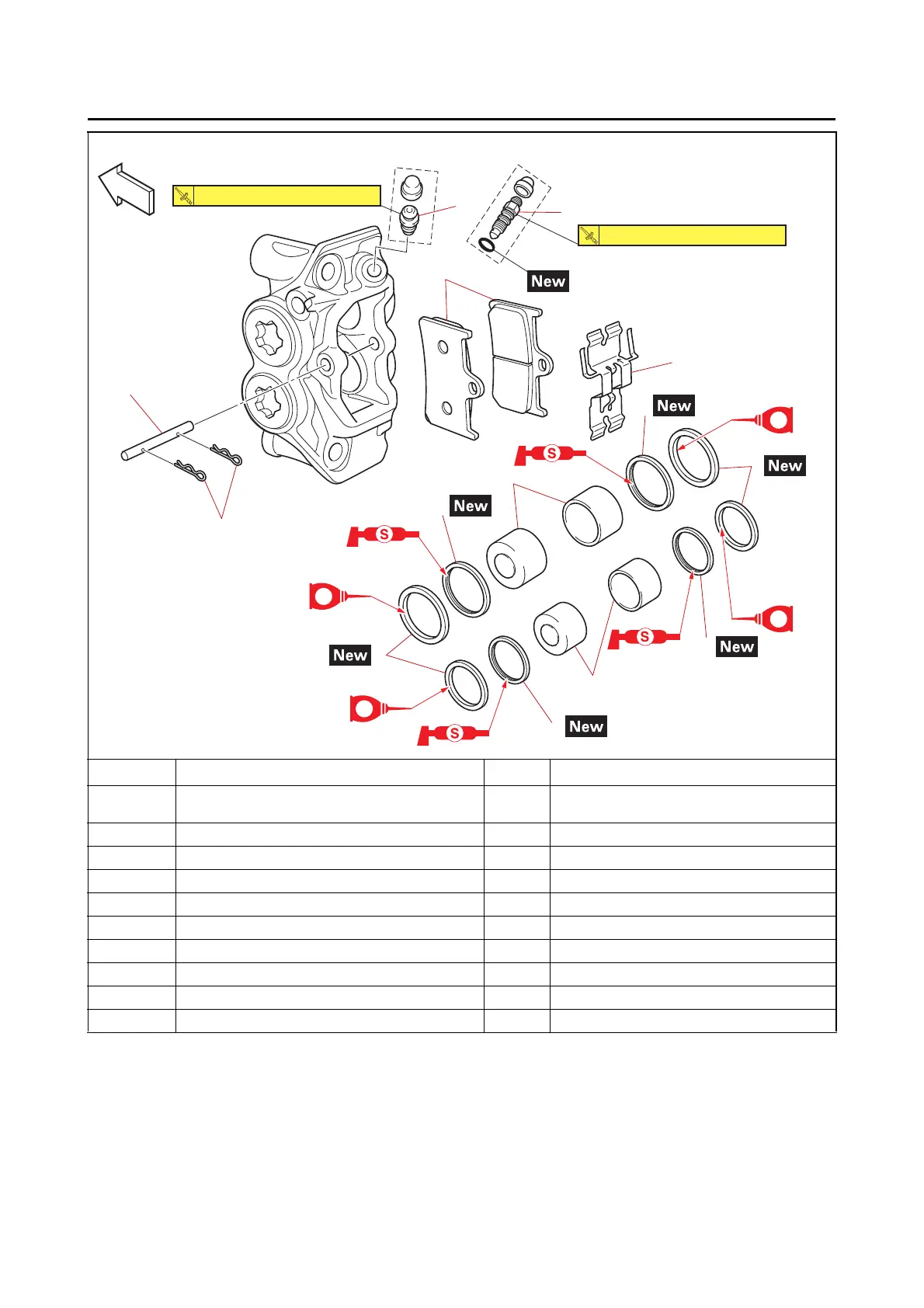

Disassembling the front brake calipers
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
1 Brake pad clip 2
2 Brake pad pin 1
3 Brake pad spring 1
4 Front brake pad 2
5 Brake caliper piston 4
6 Brake caliper piston dust seal 4
7 Brake caliper piston seal 4
8 Bleed screw 1 Left brake caliper side
9 Bleed screw 1 Right brake caliper side
BF
BF
BF
BF
FWDFWD
2
1
5
8
9
3
4
6
6
6
5
7
6
7
6 N・m (0.6 kgf・m, 4.4 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
