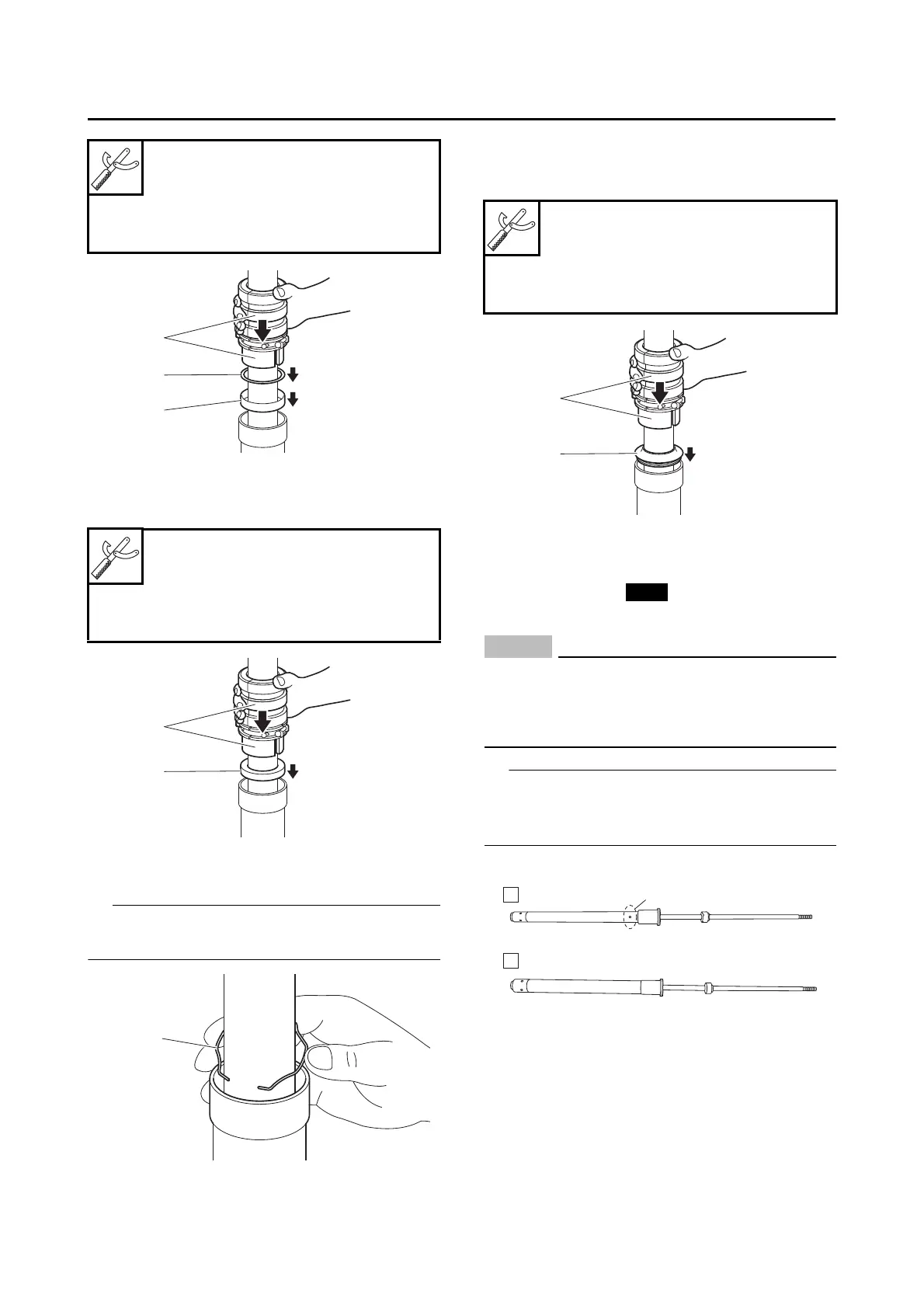

FRONT FORK
5. Install:
• Oil seal “1”
(with the fork seal driver “2”)
6. Install:
• Oil seal clip “1”
TIP
Adjust the oil seal clip so that it fits into the outer
tube groove.
7. Install:
• Dust seal “1”
(with the fork seal driver “2”)
8. Install:
• Damper rod assembly
(to inner tube)
• Copper washer
• Damper rod assembly bolt
NOTICE
ECA17401
For the damper rod assembly, the right side
is used for the rebound operation and left
side for the compression. Pay attention not
to mistake the right and left.
TIP
The left side (for the compression) damper rod
assembly has the holes “a” of oil path, unlike the
right side.
Fork seal driver
90890-01442
Adjustable fork seal driver
(36–46 mm)
YM-01442
Fork seal driver
90890-01442
Adjustable fork seal driver
(36–46 mm)
YM-01442
1
2
3
G088923
1
2
G088924
1
G088925
Fork seal driver
90890-01442
Adjustable fork seal driver
(36–46 mm)
YM-01442
A. Compression side
B. Rebound side
1
2
G088926
New
a
A
B
