4-91

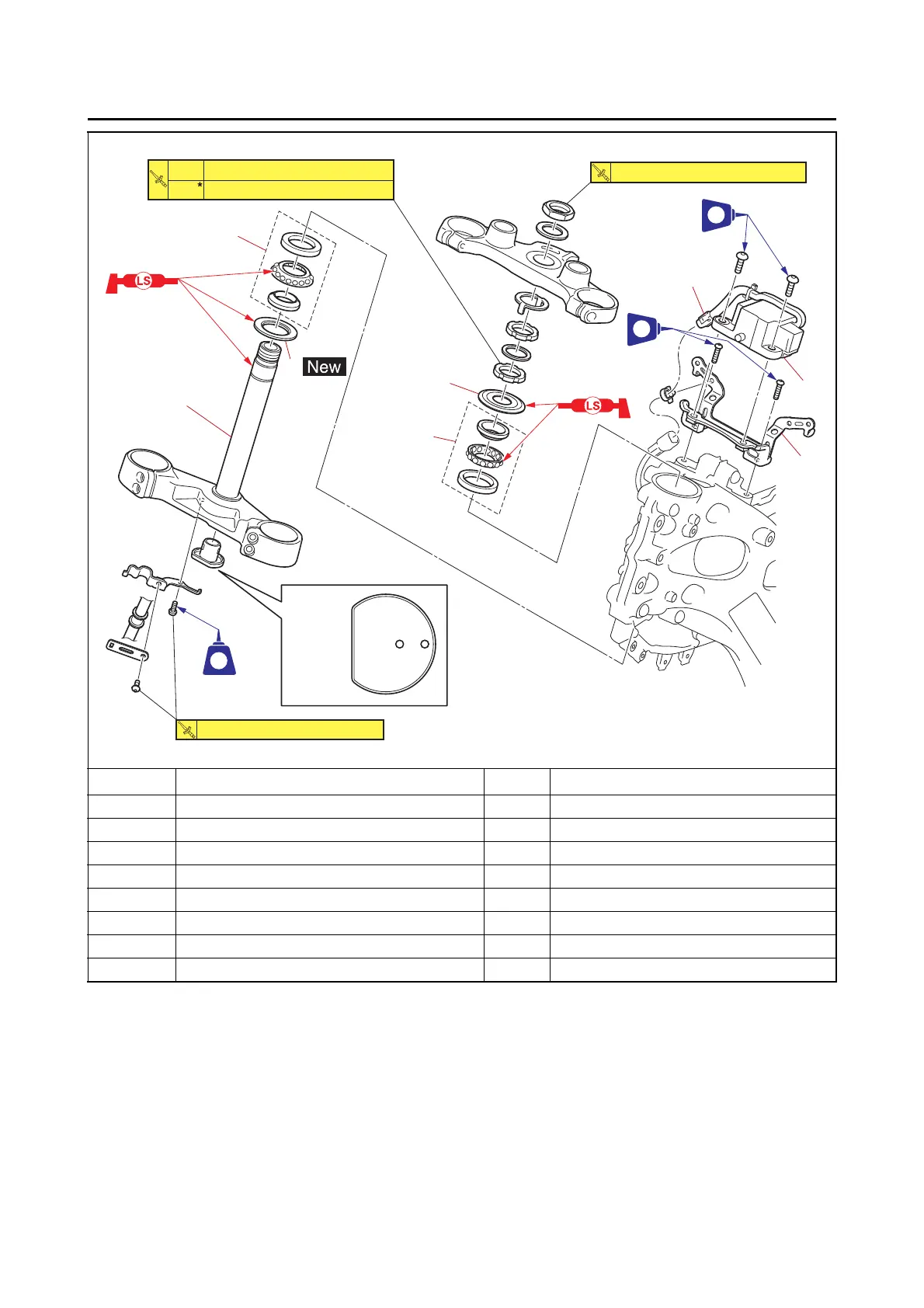

STEERING HEAD
Removing the lower bracket
*Loosen the lower ring nut completely, and then tighten it to specification.
Order Job/Parts to remove Q’ty Remarks
8 Lower bracket 1
9 Upper bearing cover 1
10 Upper bearing 1
11 Lower bearing 1
12 Dust seal 1
13 Steering lock unit coupler 1 Disconnect.
14 Steering lock unit 1
15 Stay 1
FWD
LT
LT
LT
8
9
10
11
12
13
14
15
7 N・m (0.7 kgf・m, 5.2 lb・ft)
130 N・m (13 kgf・m, 96 lb・ft)
1st
2nd
52 N・m (5.2 kgf・m, 38 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
To Next Page
