5-3

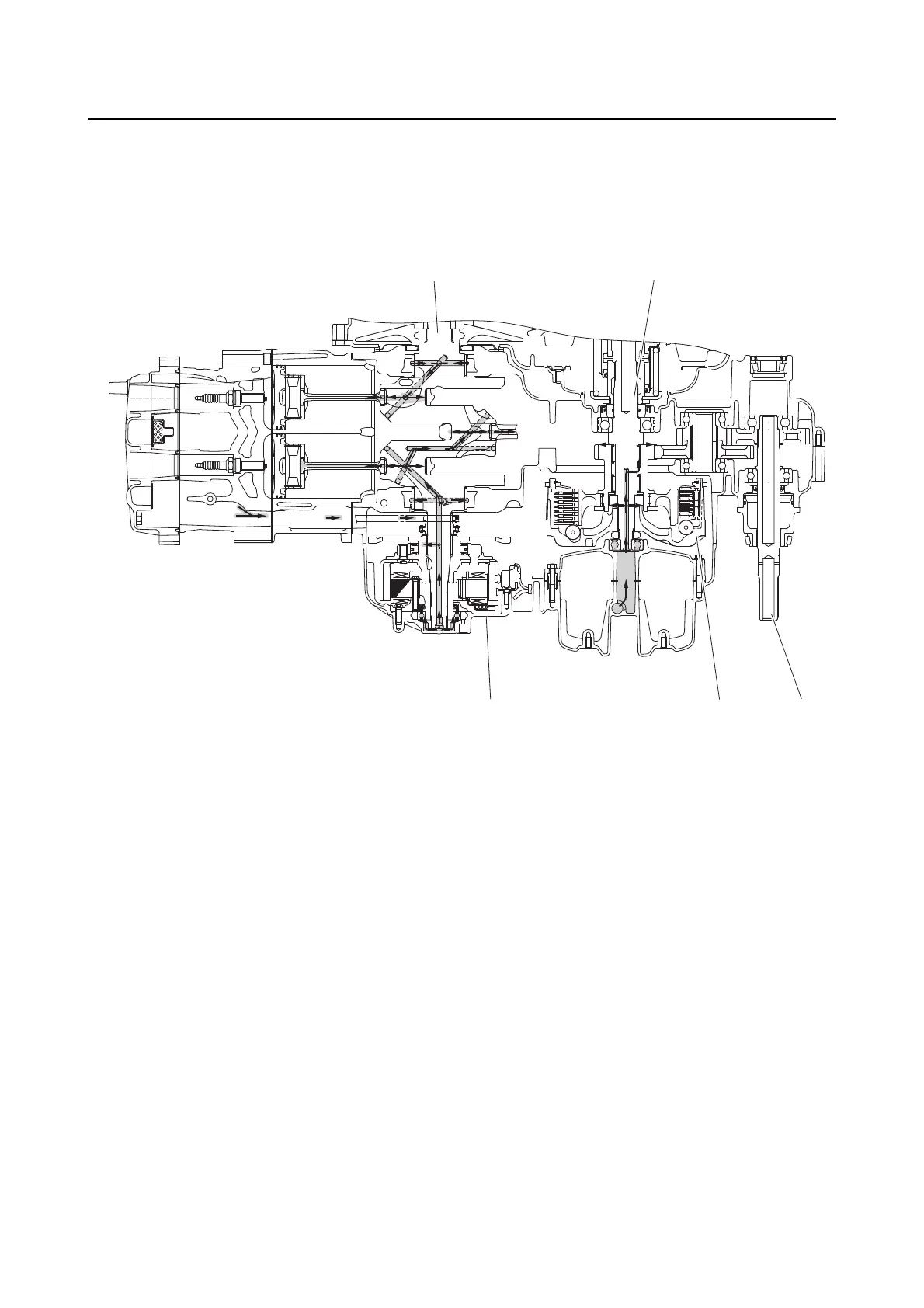

LUBRICATION SYSTEM CHART AND DIAGRAMS
1
2
345
1. Crankshaft
2. Secondary shaft
3. Drive axle
4. Clutch
5. Generator cover
