5-5

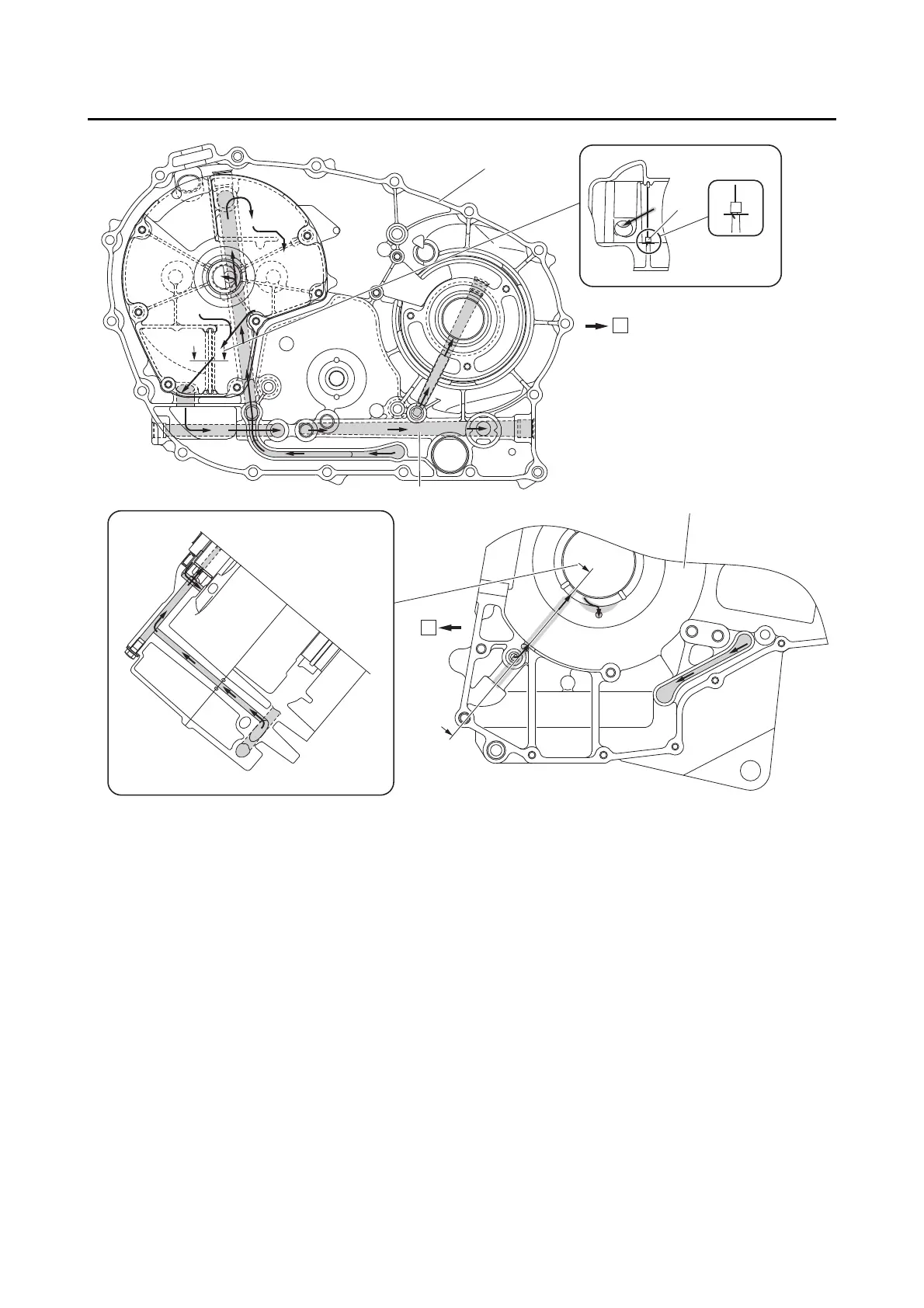

LUBRICATION SYSTEM CHART AND DIAGRAMS
2
4
3
A
A
1
1. Generator cover
2. Oil strainer
3. Main gallery
4. Crankcase (right)
A. Forward
