5-64
OIL PUMP

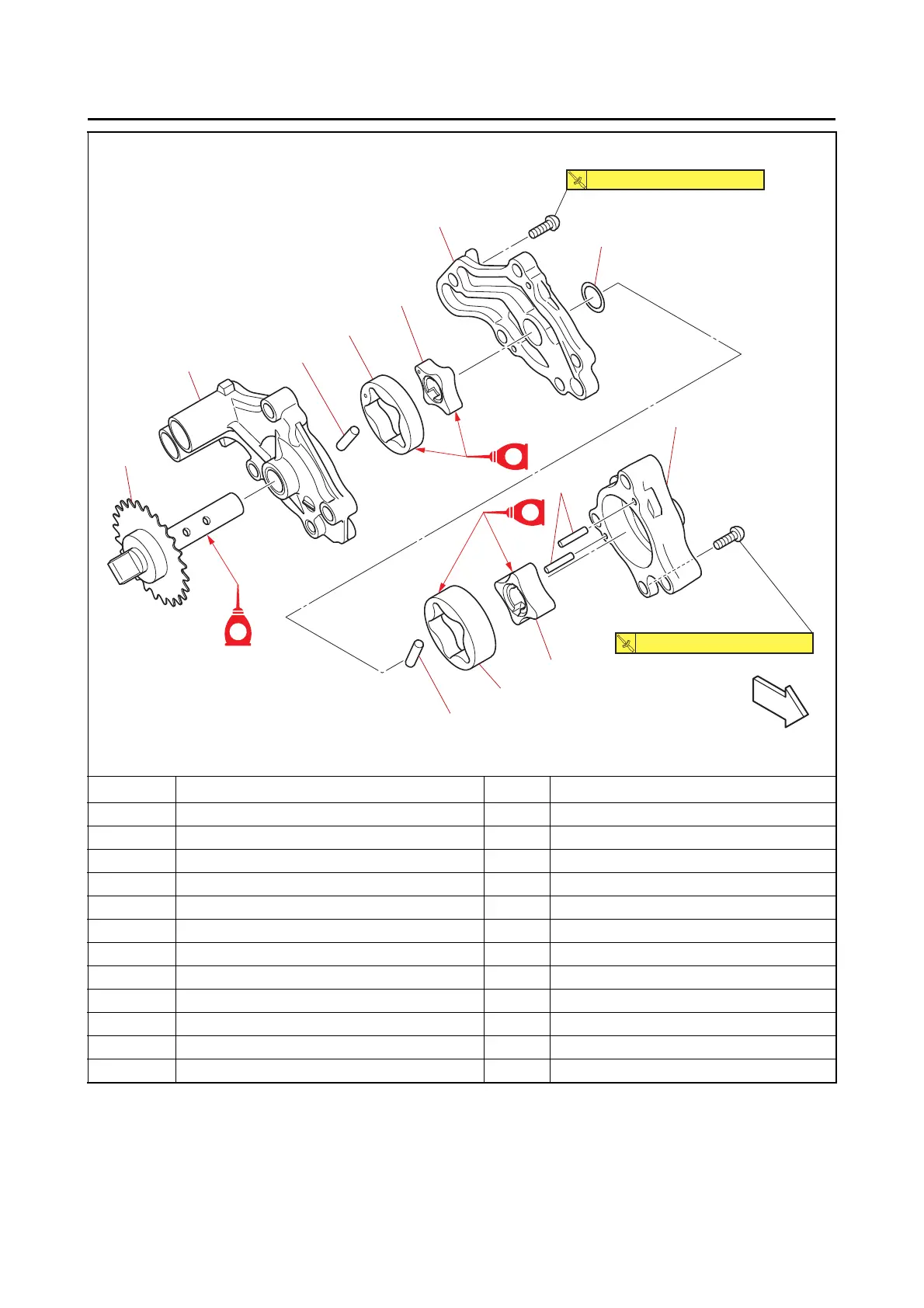

Disassembling the oil pump assembly
* When replacing any of the part, replace the oil pump assembly.
Order Job/Parts to remove Q’ty Remarks
1 Oil pump housing 1 1
2 Dowel pin 2
3 Oil pump outer rotor 1 1
4 Oil pump inner rotor 1 1
5Pin 1
6Washer 1
7 Oil pump housing center 1
8 Oil pump outer rotor 2 1
9 Oil pump inner rotor 2 1
10 Pin 1
11 Oil pump driven gear 1
12 Oil pump housing 2 1
1
2
3
4
5
6
7
8
9
10
11
12
FWDFWD
E
E
E
6 N
•
m (0.6 kgf
•
m, 4.4 lb
•
ft)
T.R.
6 N
•
m (0.6 kgf
•
m, 4.4 lb
•
ft)
T.R
.
