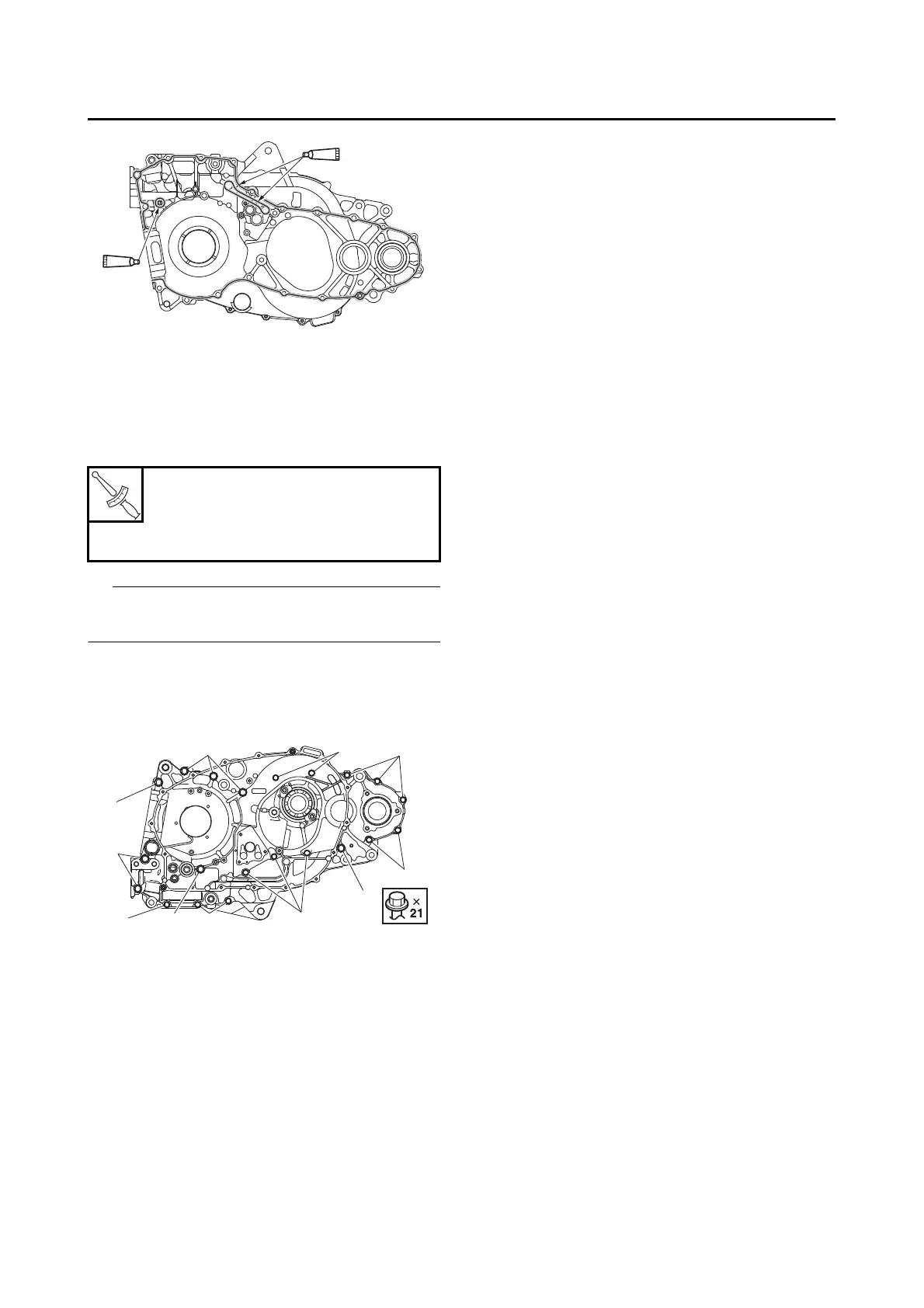

CRANKCASE
4. Install:
• Dowel pin
• Crankcase (left)
5. Install:
• Crankcase bolt (M8)
• Crankcase bolt (M6)
TIP
Tighten each bolt 1/4 of a turn at a time, in stag-
es and in a crisscross pattern.
•M8  120 mm (4.72 in) bolts “1”
•M8  110 mm (4.33 in) bolts “2”
•M6  50 mm (1.97 in) bolts “3”
•M6  35 mm (1.38 in) bolts “4”
6. Check:
• Crankshaft and transmission operation
Rough movement  Repair.
Crankcase bolt (M8)
24 N·m (2.4 kgf·m, 18 lb·ft)
Crankcase bolt (M6)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
T
R
.
.
4
4
3
3
33
2
2
2
2
1
