2-12
TIGHTENING TORQUES

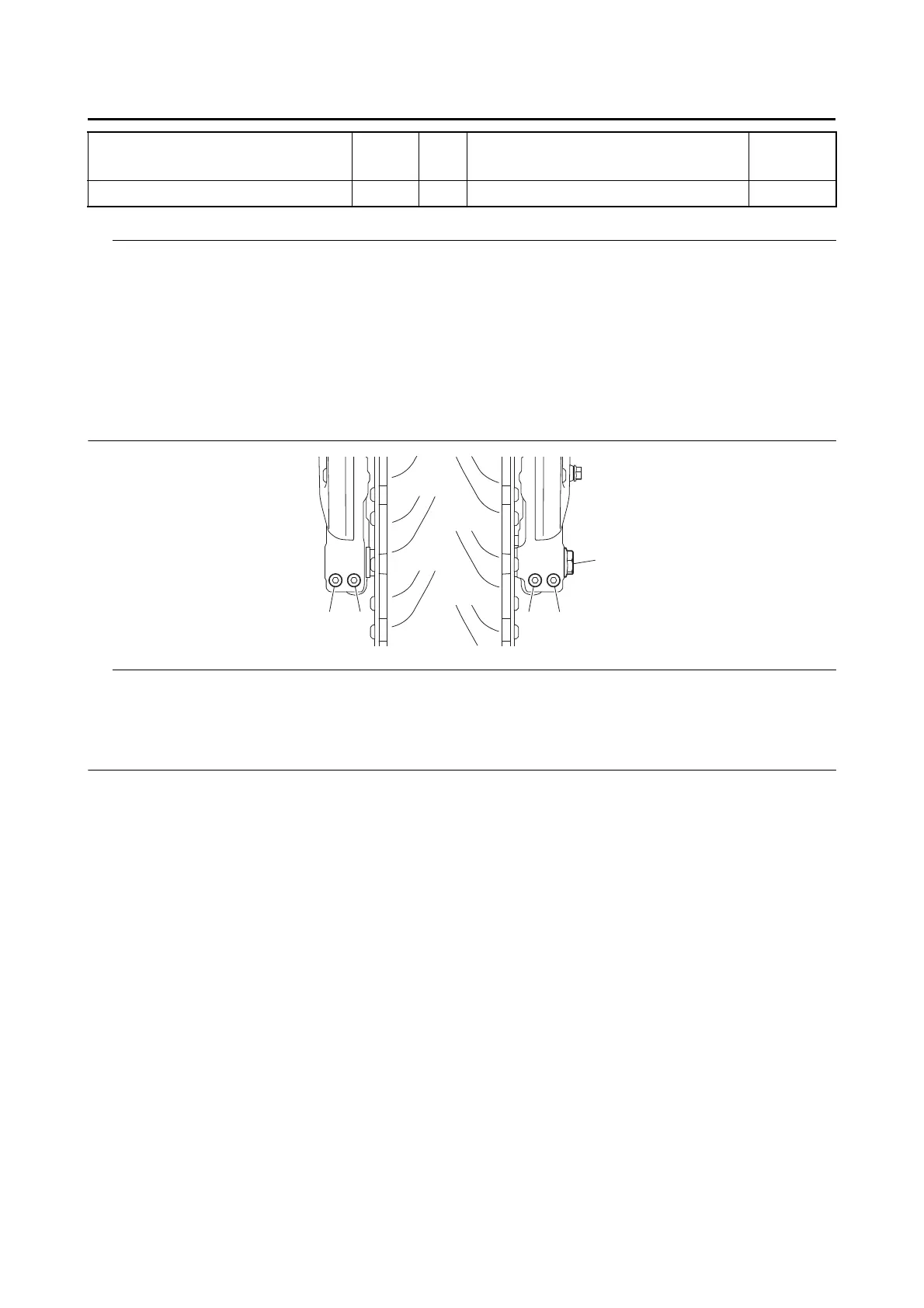

Front wheel axle pinch bolt
1. Insert the front wheel axle from the right side, temporarily install the front wheel axle bolt “1” from the
left side, and then tighten the front wheel axle to 91 N·m (9.1 kgf·m, 67 lb·ft).
2. Tighten the pinch bolt “3”, pinch bolt “2”, and pinch bolt “3” to 21 N·m (2.1 kgf·m, 15 lb·ft) in this order.
3. Check that the right end of the front axle is flush with the front fork. If necessary, manually push the
front axle or lightly tap it with a soft hammer until its end is flush with the front fork. However, if the
surface of the front axle end is not parallel to the surface of the front fork, align a point on the outer
edge of the axle with the fork, making sure that the axle does not protrude past the fork.
4. Tighten the pinch bolt “5”, pinch bolt “4”, and pinch bolt “5” to 21 N·m (2.1 kgf·m, 15 lb·ft) in this order.
Lower ring nut
1. Tighten the ring nut to 52 N·m (5.2 kgf·m, 38 lb·ft) with a torque wrench, then loosen the lower ring
nut completely.
2. Tighten the lower ring nut to 16 N·m (1.6 kgf·m, 12 lb·ft).
Drive pulley assembly bolt M10 5 48 N·m (4.8 kgf·m, 35 lb·ft)
Item
Thread
size
Q’ty Tightening torque Remarks
1
2345
