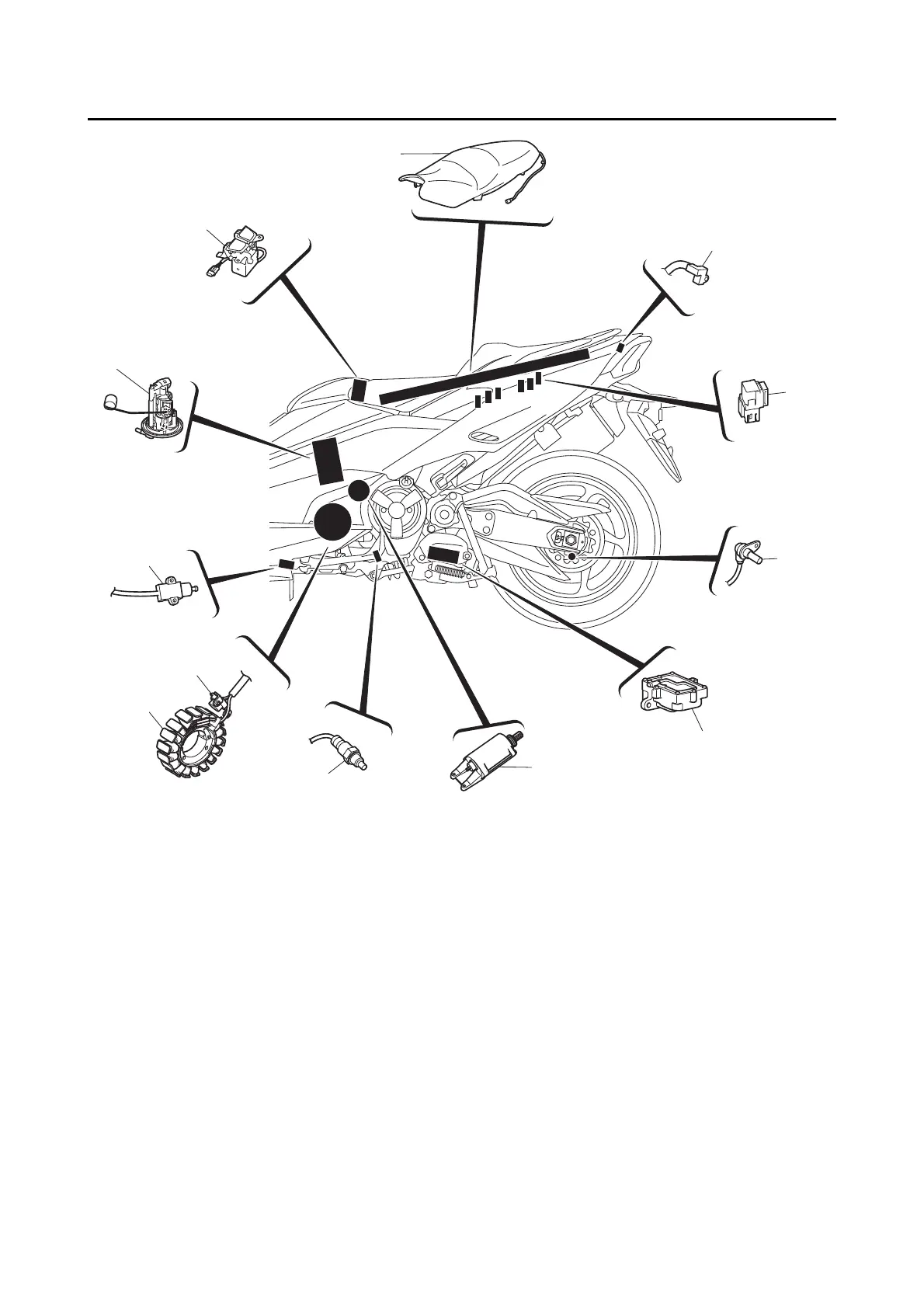

ELECTRICAL COMPONENTS
1
2
3
4
5
6
7
8
9
10
12
11
1. Fuel pump
2. Seat/fuel lid lock solenoid
3. Seat heater (for XP560D)
4. Storage box light switch
5. Sidestand relay/Turn signal/hazard relay/
Radiator fan motor relay/Seat heater relay
(power) (for XP560D)/Seat heater relay
(control) (for XP560D)/Windshield drive
unit relay (down) (for XP560D)/Windshield
drive unit relay (up) (for XP560D)
6. Rear wheel sensor
7. Centerstand lock solenoid
8. Starter motor
9. O
2
sensor
10. Stator coil
11. Crankshaft position sensor
12. Sidestand switch
