9-106
P0335

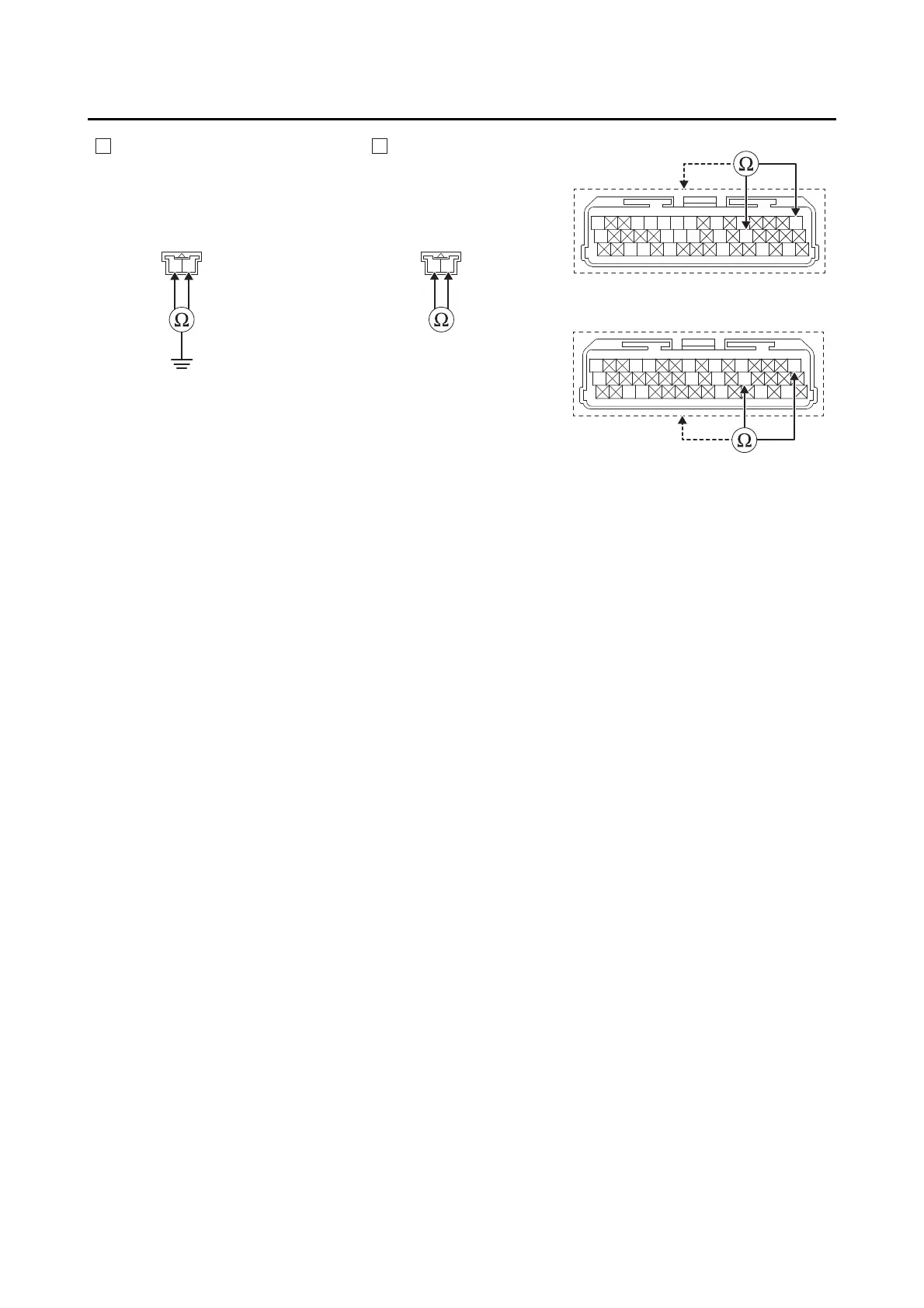

4. Installed condition of crankshaft position sensor.
• Check for looseness or pinching.
• Check the gap (1.15 mm (0.05 in)) between the crankshaft position sensor and the generator rotor.
B/Y
L
Y/G
P
Lg/L
O/WW/G
Y/L
Lg/W
B/L
Br/W
Gy/G
G/L
R/G
Lg/L
W/G
W/Y
G/R
Lg/B
L/W
Lg
B/Y
L
Y/G
P
W/G
Y/L
Lg/W
B/L
Br/W
Gy/G
Lg/L
W/G
W/Y
G/RL/W
Lg
B/Y B/L
B/Y B/L
2
*
2
**
1
1
A
B
*. XP560D
**. XP560E
Is resistance ?
YES
Go to step 4.
NO
a. Replace the wire harness.
b. Crank the engine, and then check the condition of the DTC using the malfunction mode of the
YDT.
Is it in the “Recovered” condition?
YES
Go to step 7, and complete the service.
NO
Go to step 4.
Is check result OK?
YES
Go to step 5.
NO
a. Reinstall or replace the sensor.
b. Crank the engine, and then check the condition of the DTC using the malfunction mode of the
YDT.
Is it in the “Recovered” condition?
YES
Go to step 7, and complete the service.
NO
Go to step 5.
