9-116
P0500
4. Wire harness continuity.
• Disconnect the rear wheel sensor coupler, ABS ECU coupler and ECU coupler.
• Open circuit check
Is the coupler condition normal?
YES
Go to step 4.
NO
a. Connect the coupler securely or replace the wire harness.
b. Execute the diagnostic mode. (Code D07)
c. Rotate the rear wheel by hand and check that the indicated value increases.
Is that value increased?
YES
Go to step 7.
NO
Go to step 4.

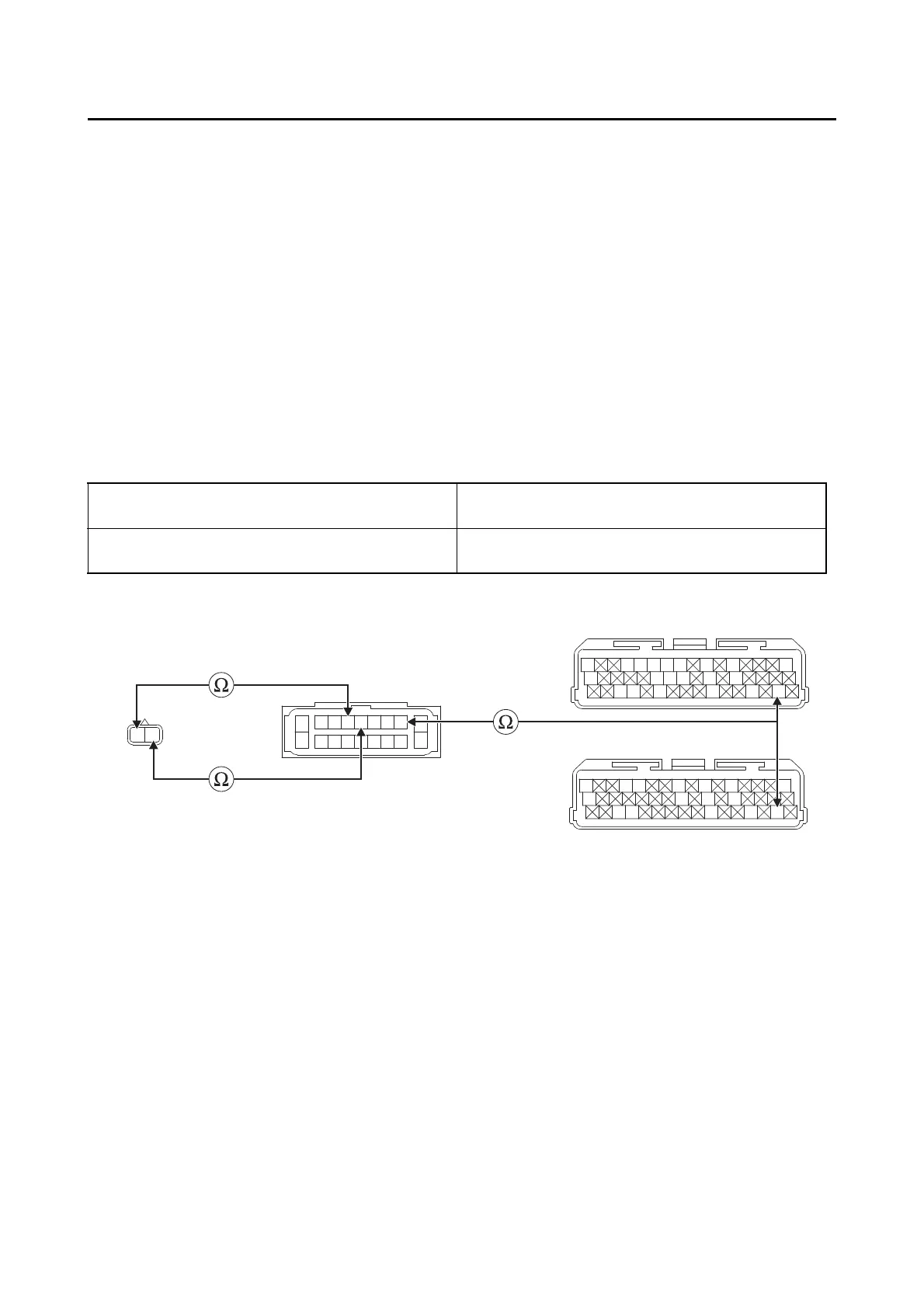

Between rear wheel sensor coupler “1” and
ABS ECU coupler “2”
black–black
white–white
Between ABS ECU coupler “2” and ECU cou-
pler “3”
white/green–white/green
B/Y
L
Y/G
P
Lg/L
O/WW/G
Y/L
Lg/W
B/L
Br/W
Gy/G
G/L
R/G
Lg/L
W/G
W/Y
G/R
Lg/B
L/W
Lg
B/Y
L
Y/G
P
W/G
Y/L
Lg/W
B/L
Br/W
Gy/G
Lg/L
W/G
W/Y
G/RL/W
Lg
B
W/G
G/R
W/Y
WBBW
R/W
B/G
B/L
Lg/W
Lg/L
Br/W
LgLg
G/Y
R/L
B W
1
2
3
*
3
**
*. XP560D
**. XP560E
Is resistance 0 ?
YES
Go to “Short circuit check”.
NO
a. Replace the wire harness.
b. Execute the diagnostic mode. (Code D07)
c. Rotate the rear wheel by hand and check that the indicated value increases.
Is that value increased?
YES
Go to step 7.
NO
Go to “Short circuit check”.
