9-123
P0564
Perform the procedure from step 6 to step 10.
3. Check the fuse.
• Check the ignition fuse and cruise control fuse.

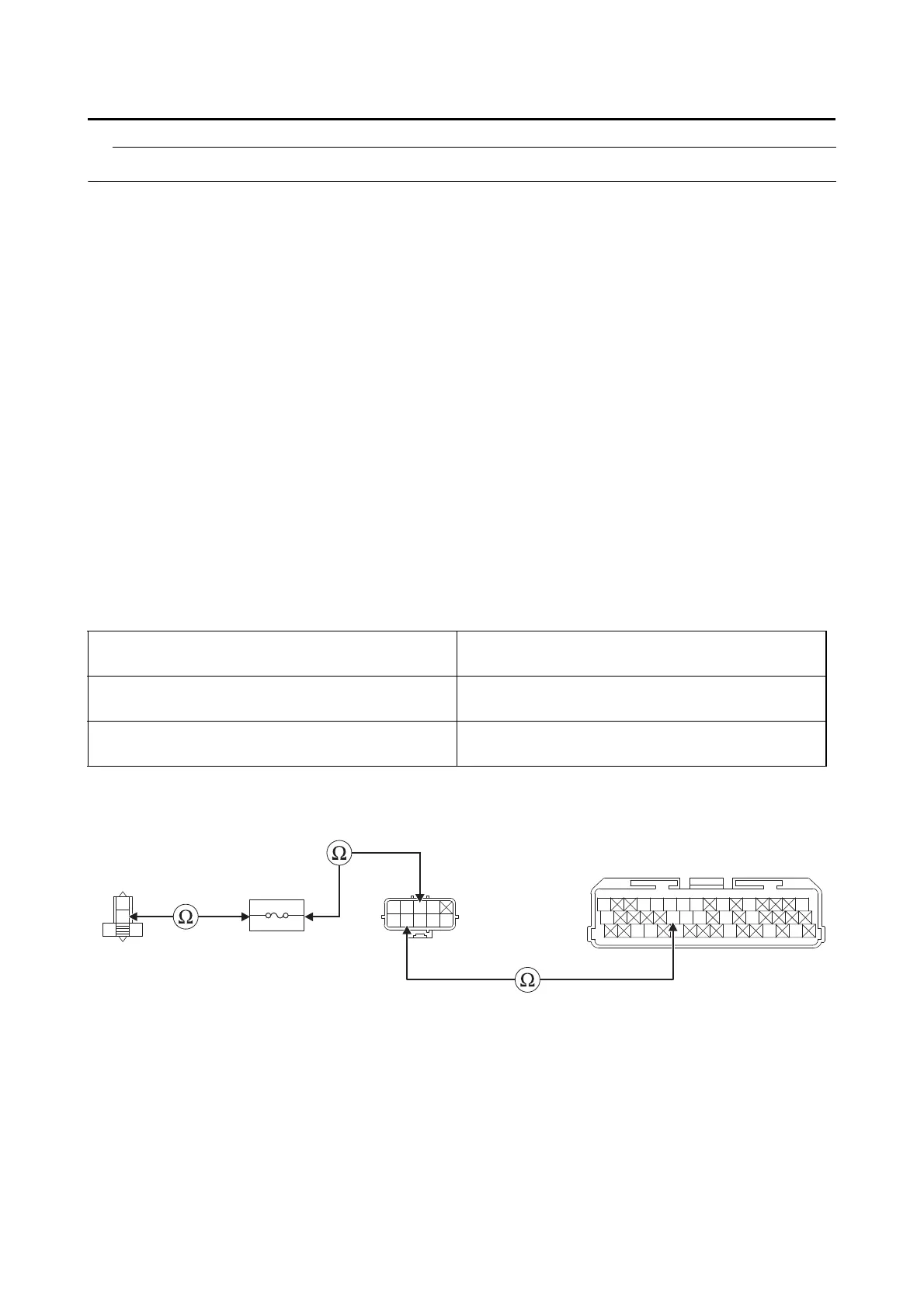

4. Wire harness continuity
• Disconnect the ignition system relay coupler, ignition fuse, handlebar switch coupler (left) and ECU
coupler.
• Open circuit check
Is check result OK?
YES
Go to step 4.
NO
a. Replace the fuse.
b. Push the ON/start switch.
c. Push and release the “RES+” side of the cruise control setting switch, and then check the condi-
tion of the DTC using the malfunction mode of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 10, and complete the service.
NO
Go to step 4.
Between ignition system relay coupler “1” and
ignition fuse holder “2”
brown/blue–brown/blue
Between ignition fuse holder “2” and handlebar
switch coupler (left) “3”
yellow/black–yellow/black
Between left handlebar switch coupler (left) “3”
and ECU coupler “4”
red/green–red/green
B/Y
L
Y/G
P
Lg/L
O/WW/G
Y/L
Lg/W
B/L
Br/W
Gy/G
G/L
R/G
Lg/L
W/G
W/Y
G/R
Lg/B
L/W
Lg
O/W
Y/B
Ch
Dg
B/W
W/L
G/LR/G
Br/W
R
Br/L
R
L/Y
123
4
