9-124
P0564
• Short circuit check
Disconnect the ECU related connectors before checking.
Refer to “PARTS CONNECTED TO THE ECU” on page 9-3.

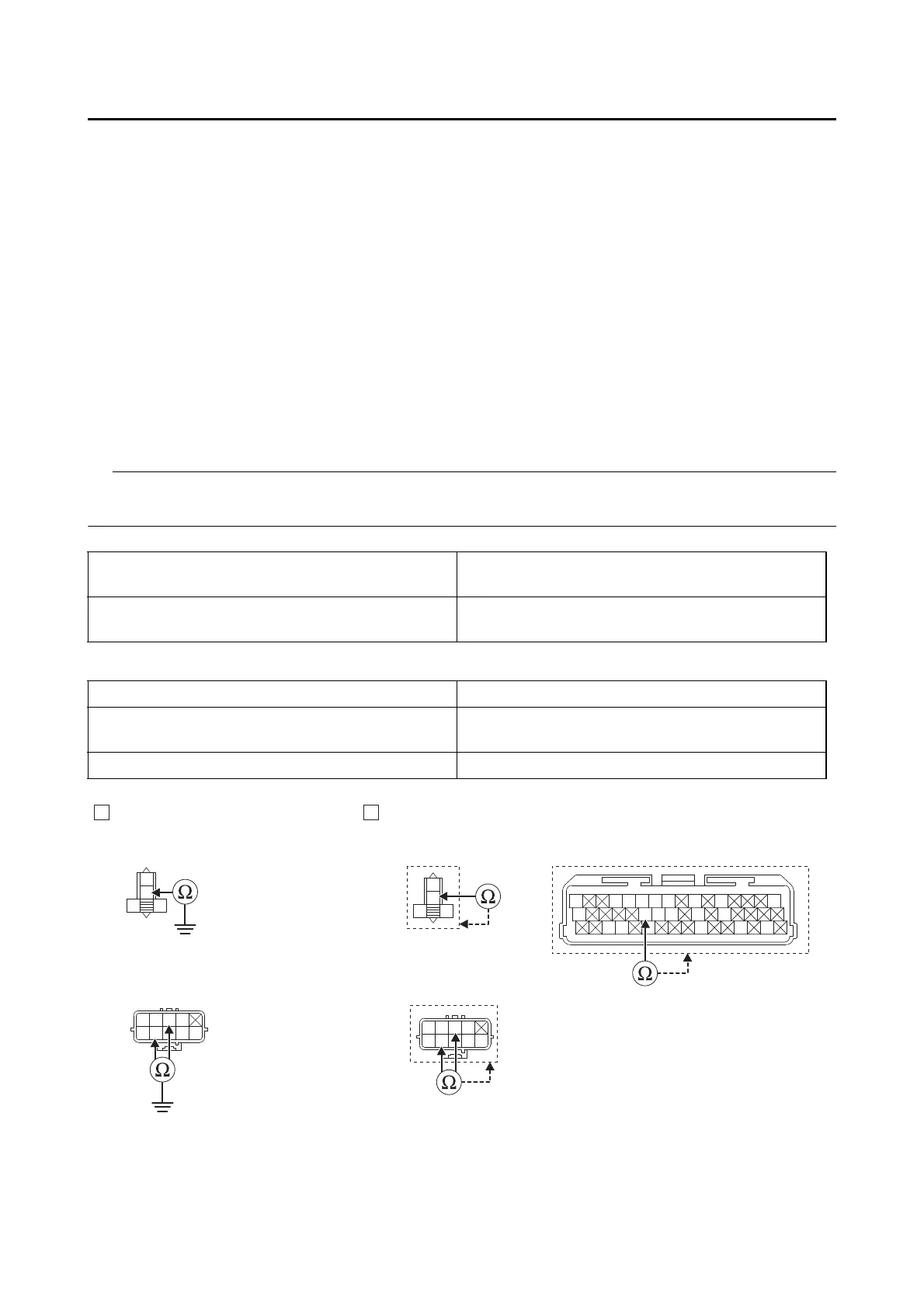

Ground short circuit check “A”
Lines short circuit check “B”
Is resistance 0 ?
YES
Go to “Short circuit check”.
NO
a. Replace the wire harness.
b. Push the ON/start switch.
c. Push and release the “RES+” side of the cruise control setting switch, and then check the condi-
tion of the DTC using the malfunction mode of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 10, and complete the service.
NO
Go to “Short circuit check”.
Between ignition system relay coupler “1” and
ground
brown/blue–ground
Between handlebar switch coupler (left) “3” and
ground
red/green–ground
yellow/black–ground
Ignition system relay coupler “1” brown/blue–any other coupler terminal
Handlebar switch coupler (left) “3”
red/green–any other coupler terminal
yellow/black–any other coupler terminal
ECU coupler “4” red/green–any other coupler terminal
B/Y
L
Y/G
P
Lg/L
O/WW/G
Y/L
Lg/W
B/L
Br/W
Gy/G
G/L
R/G
Lg/L
W/G
W/Y
G/R
Lg/B
L/W
Lg
R
Br/L
R
L/Y
O/W
Y/B
Ch
Dg
B/W
W/L
G/LR/G
Br/W
R
Br/L
R
L/Y
O/W
Y/B
Ch
Dg
B/W
W/L
G/LR/G
Br/W
11
33
4
A B
To Next Page
