P0564
Lines short circuit check “B”
8. Defective cruise control setting switch.
• Replace the handlebar switch (left).
• Push the ON/start switch.
• Push the “RES+” side and “SET–” side of the cruise control setting switch, and then check the con-
dition of the DTC using the malfunction mode of the YDT.
9. Malfunction in ECU.
• Replace the ECU, and complete the service.
Refer to “REPLACING THE ECU (Engine Control Unit)” on page 8-93.
10.Delete the DTC and check that the MIL goes off.
• Confirm that the DTC has a condition of “Recovered” using the YDT, and then delete the DTC.

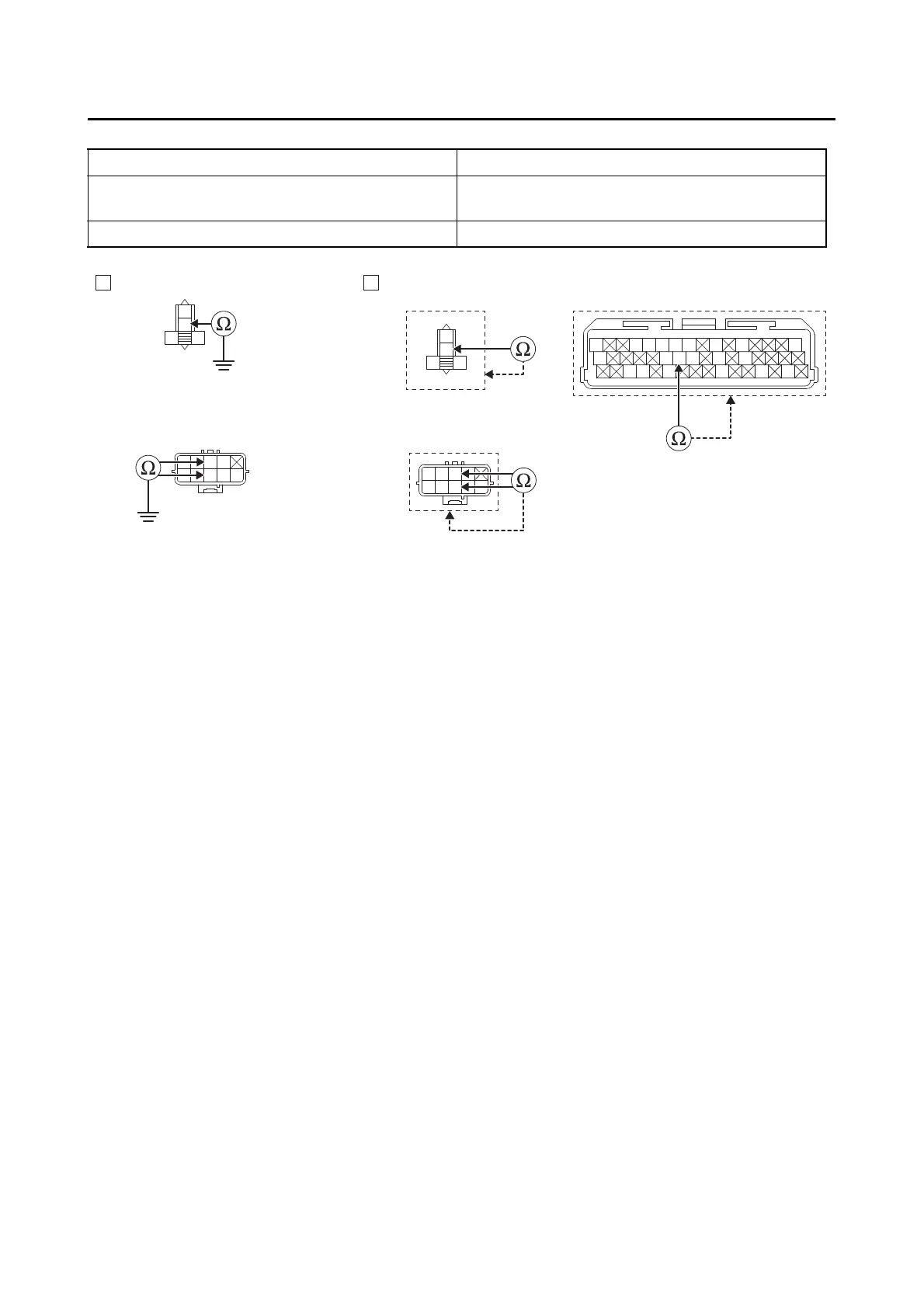

Ignition system relay coupler “1” brown/blue–any other coupler terminal
Handlebar switch coupler (left) “3”
green/blue–any other coupler terminal
yellow/black–any other coupler terminal
ECU coupler “4” green/blue–any other coupler terminal
Is resistance ?
YES
Go to step 8.
NO
a. Replace the wire harness.
b. Push the ON/start switch.
c. Push and “SET–” side of the cruise control setting switch, and then check the condition of the
DTC using the malfunction mode of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 10, and complete the service.
NO
Go to step 8.
Is it in the “Recovered” condition?
YES
Go to step 10, and complete the service.
NO
Go to step 9.
